5

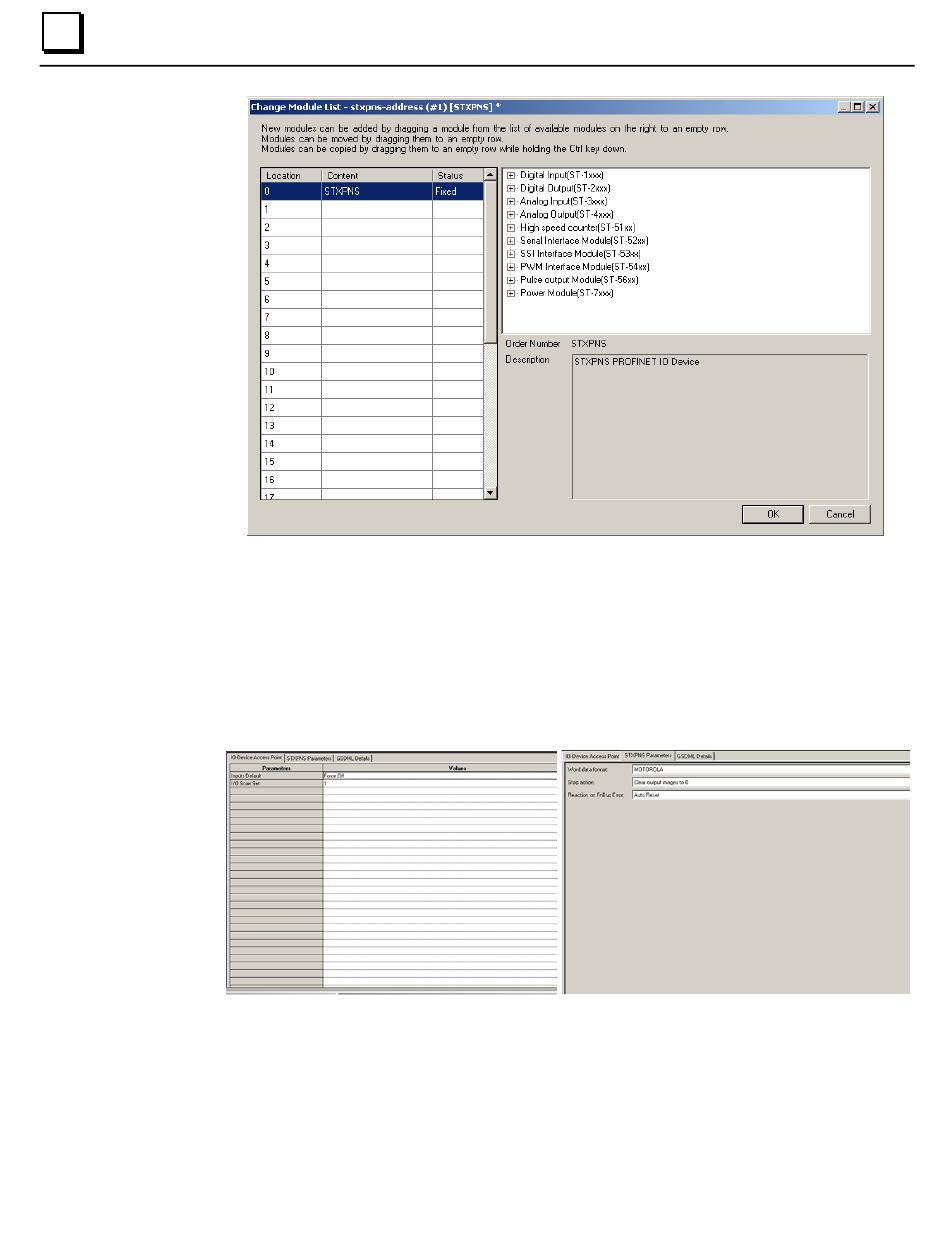

Figure 44: Change Module List
Now start adding the IO modules as per the physical setup; after you add all the desired
IO modules, select "OK".
To configure Profinet network adapter configuration, right click on the Profinet adapter
node and select "Configure", a indo
ill open as sho n belo :
Figure 45: Configuring PROFINET Adapter
There are three tabs in this window IO Device Access point, STXPNS Parameters, and
GSDML details.
Choose "STXPNS Parameters" for parameter settings. There are three options:
1. Word Data Format: The options are MOTOROLA & INTEL. MOTOROLA format
is big endian; therefore ensure that the IO modules connected to the node are
5-16
RSTi Network Adapter Manual User Manual -January 2012
GFK-2746
