Levelflex FMP53 PROFIBUS PA
Endress+Hauser

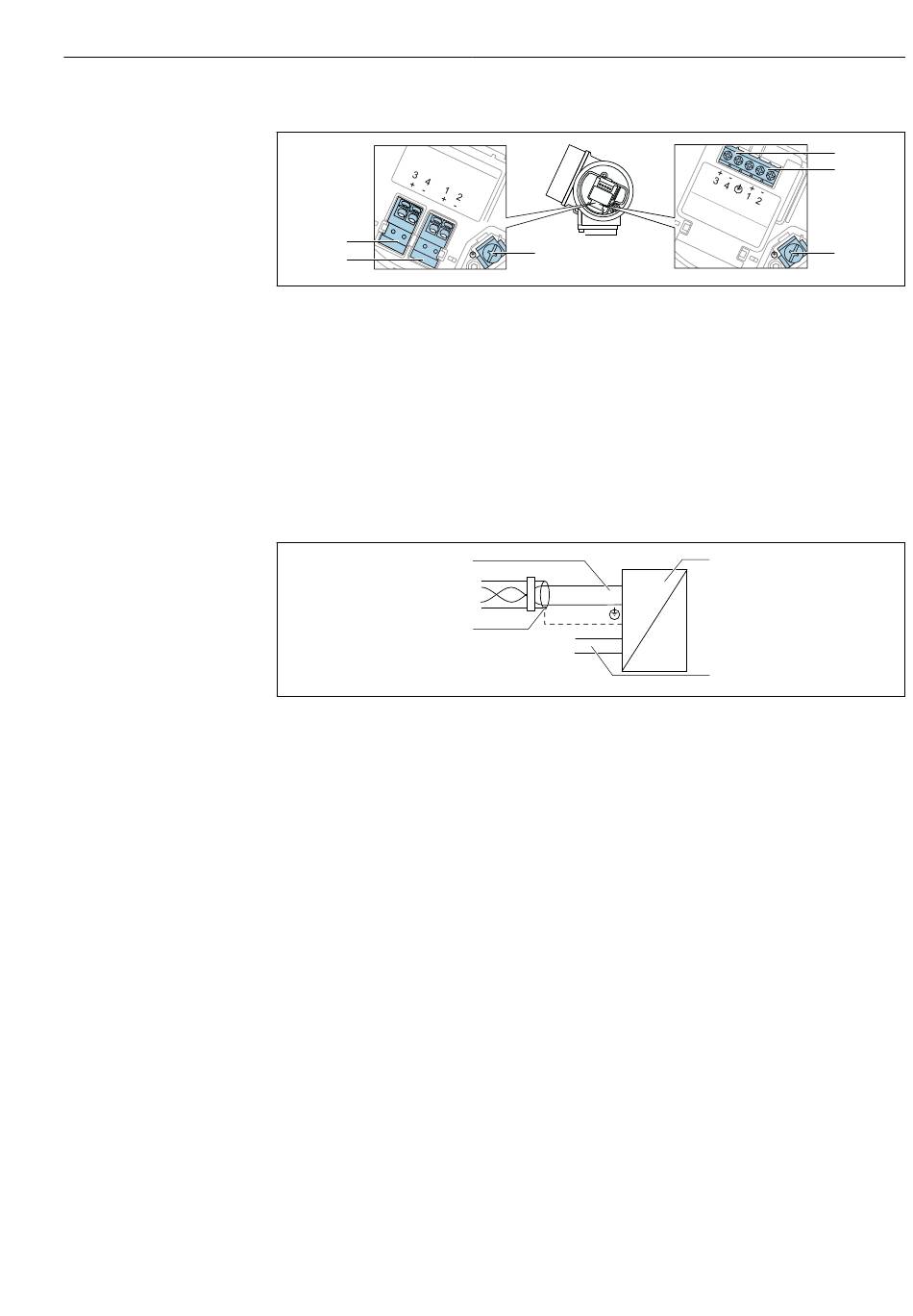

Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
A
2
1
8
Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
A
Without integrated overvoltage protection
B
With integrated overvoltage protection
1
Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage
protection
2
Connection, switch output (open collector): terminals 3 and 4, without integrated overvoltage protection
3
Connection, switch output (open collector): terminals 3 and 4, with integrated overvoltage protection
4
Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, with integrated overvoltage
protection
5
Terminal for cable shield
Block diagram PROFIBUS PA / FOUNDATION Fieldbus
9
Block diagram PROFIBUS PA / FOUNDATION Fieldbus
1
Cable screen; observe cable specification
2
Connection PROFIBUS PA / FOUNDATION Fieldbus
3
Measuring device
4
Switch output (open collector)
5
2
+
1
-
2
1
+
3
-
4
Electrical connection
B
3
I
Y
4
3
4
5
A0036500
A0036530
33
