Mounting
30
1.
8 mm

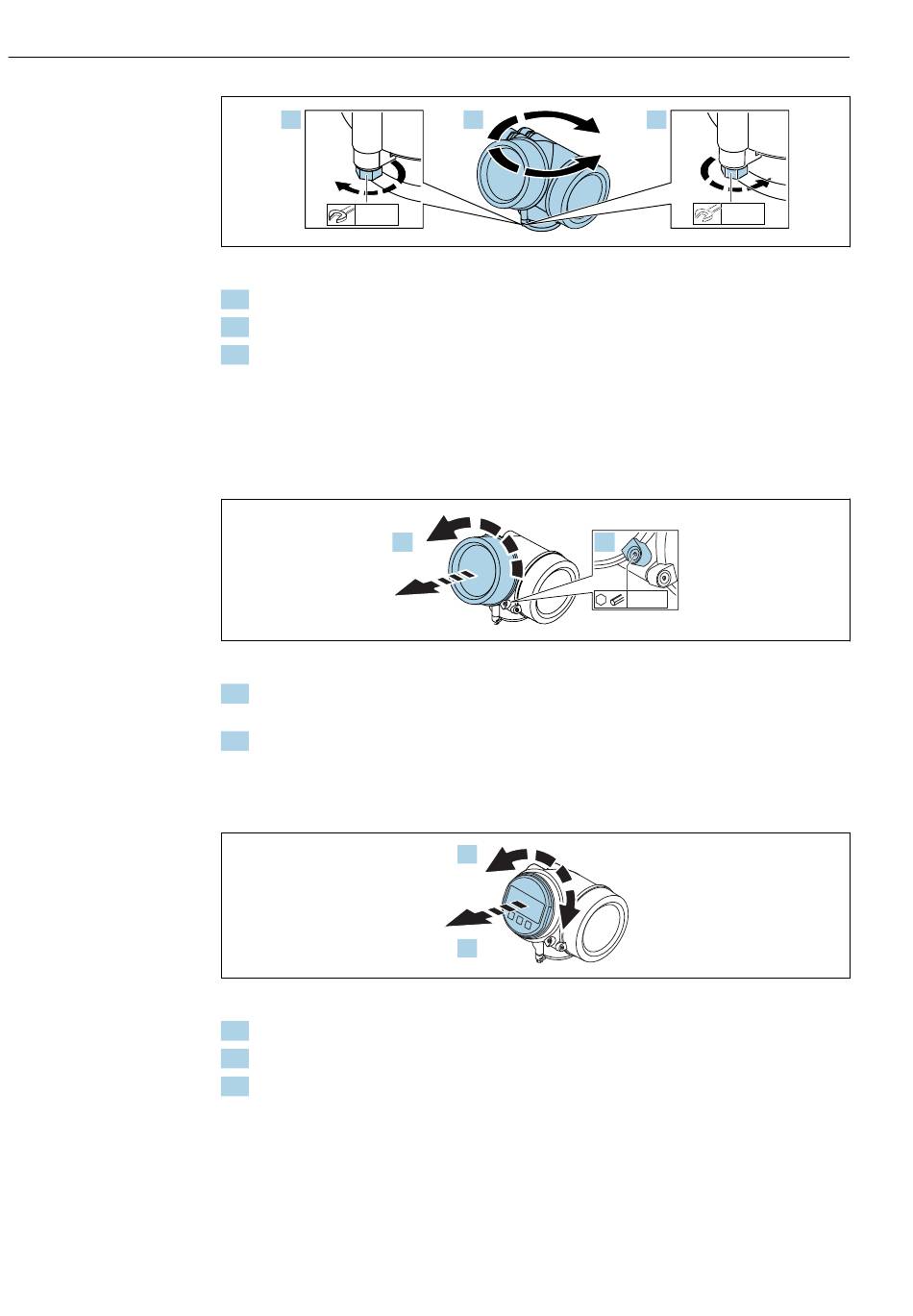

1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or
stainless steel housing).
6.2.4

Turning the display

Opening the cover
1. Loosen the screw of the securing clamp of the electronics compartment cover using
an Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
2. Unscrew the electronics compartment cover and check the cover seal; replace it if
necessary.
Turning the display module
1. Pull out the display module with a gentle rotational movement.
2. Turn the display module to the desired position: Max. 8 × 45 ° in each direction.
3. Feed the coiled cable into the gap between the housing and main electronics module
and plug the display module into the electronics compartment until it engages.
2.
2.
2.
1.
Levelflex FMP53 PROFIBUS PA
3.
max. 350°
8 mm
1.
3 mm
Endress+Hauser
A0032242
A0021430
A0036401
