6.1.2

Mounting under confined conditions

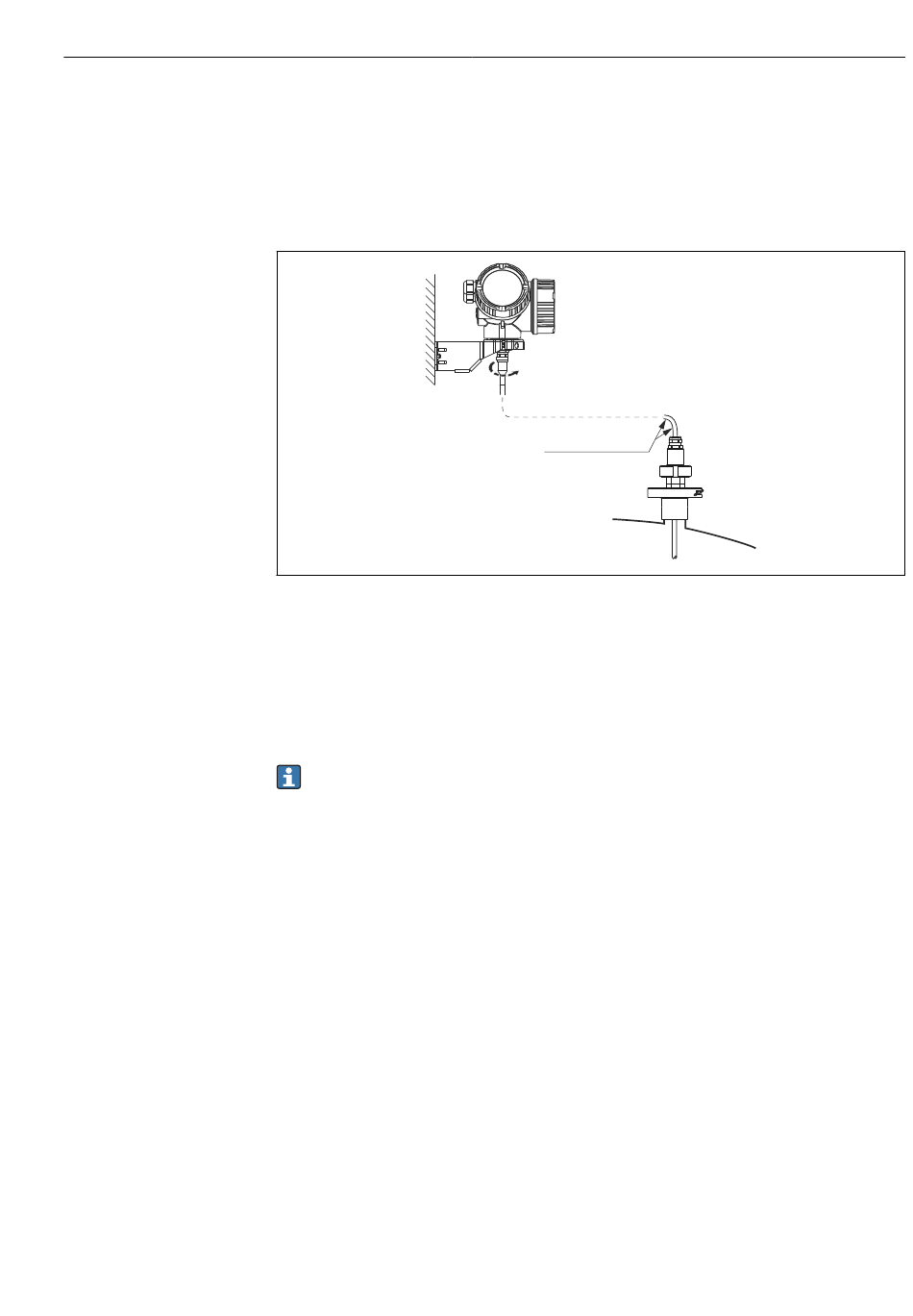

Mounting with remote probe
The device version with a remote probe is suitable for applications with restricted
mounting space (product structure: probe design). In this case, the electronics housing is
mounted at a separate position from the probe.
• The connecting cable is connected to the probe upon delivery.
• Length: 3 m (9 ft) or 6 m (18 ft)
• Minimum bending radius: 50 mm (2 inch)
• The mounting bracket for the electronics housing is included in the delivery with this
version. Mounting options:
• Wall mounting
• Mounting on DN32 to DN50 (1-1/4 to 2 inch) post or pipe
The probe with the connection cable and the electronics are mutually compatible and
bear a common serial number. Only components with the same serial number may be
connected to one another.
6 Nm (4.42 lbf ft)
3 m (9 ft) / 6 m (19 ft)
r
= 50 mm (2")
min
Mounting
A0015103
