KA01080F/00/EN/16.18
71396569
2018-04-12
Products
Brief Operating Instructions

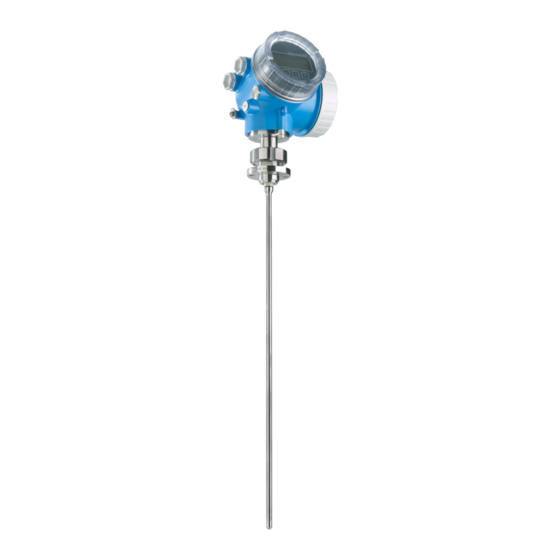

Levelflex FMP53
PROFIBUS PA
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Levelflex FMP53 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Levelflex FMP53

Summary of Contents for Endress+Hauser Levelflex FMP53

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Levelflex FMP53 PROFIBUS PA Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Levelflex FMP53 PROFIBUS PA Table of contents Table of contents Important document information ..........4 Symbols .

  • Page 4: Important Document Information

    Important document information Levelflex FMP53 PROFIBUS PA Important document information Symbols 1.1.1 Safety symbols Symbol Meaning DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in DANGER serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 5 Levelflex FMP53 PROFIBUS PA Important document information 1.1.4 Symbols for certain types of information Symbol Meaning Symbol Meaning Permitted Preferred Procedures, processes or actions that Procedures, processes or actions that are permitted. are preferred. Forbidden Procedures, processes or actions that Indicates additional information.

  • Page 6: Terms And Abbreviations

    Time of Flight FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...

  • Page 7: Registered Trademarks

    Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 8: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 9: Workplace Safety

    Levelflex FMP53 PROFIBUS PA Basic safety instructions Workplace safety For work on and with the device: ‣ Wear the required personal protective equipment according to federal/national regulations. With divisible probe rods, medium may penetrate into the joints between the indivual parts of the rod.

  • Page 10: Product Description

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines.

  • Page 11: Incoming Acceptance And Product Identification

    ): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed.

  • Page 12: Storage, Transport

    Storage, Transport Levelflex FMP53 PROFIBUS PA Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point WARNING Housing or probe may be damaged or break away.

  • Page 13: Mounting

    Levelflex FMP53 PROFIBUS PA Mounting Mounting Mounting requirements 6.1.1 Suitable mounting position A0014130  3 Mounting requirements for Levelflex Mounting distances • Distance (A) between wall and rod probe: – for smooth metallic walls: > 50 mm (2 in) – for plastic walls: > 300 mm (12 in) to metallic parts outside the vessel •...

  • Page 14: Mounting The Device

    Mounting Levelflex FMP53 PROFIBUS PA Mounting the device 6.2.1 Required mounting tools • To shorten rod or coax probes: Saw • For flanges and other process connections: appropriate mounting tools • To turn the housing: Hexagonal wrench 8 mm 6.2.2 Mounting the "Sensor remote"...
  • Page 15 Levelflex FMP53 PROFIBUS PA Mounting Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 127...140 (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  4 Mounting the electronics housing using the mounting bracket; dimensions: mm (In) Wall mounting Pipe mounting Connecting the cable Required tools: •...
  • Page 16 Mounting Levelflex FMP53 PROFIBUS PA 6 Nm (4.42 lbf ft) 3 m (9 ft) / 6 m (19 ft) = 50 mm (2") A0015103 6.2.3 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: max.
  • Page 17 Levelflex FMP53 PROFIBUS PA Mounting 6.2.4 Turning the display Opening cover 3 mm A0021430 Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew cover and check lid gasket, replace if necessary.
  • Page 18 Mounting Levelflex FMP53 PROFIBUS PA Closing electronics compartment cover 3 mm 2,5 Nm A0021451 Screw back firmly electronics compartment cover. Turning securing clamp 90 ° clockwise and tighten the clamp with 2.5 Nm using the Allen key (3 mm). Endress+Hauser...

  • Page 19: Post-Installation Check

    Levelflex FMP53 PROFIBUS PA Mounting Post-installation check Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 20: Electrical Connection

    Electrical connection Levelflex FMP53 PROFIBUS PA Electrical connection Connection conditions 7.1.1 Terminal assignment Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V A0036519  5 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V Connection 4-20 mA HART (active): terminals 3 and 4...
  • Page 21 Levelflex FMP53 PROFIBUS PA Electrical connection CAUTION To ensure electrical safety: ‣ Do not disconnect the protective connection. ‣ Disconnect the supply voltage before disconnecting the protective earth. Connect protective earth to the internal ground terminal (3) before connecting the supply voltage.
  • Page 22 Electrical connection Levelflex FMP53 PROFIBUS PA Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500  6 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage...
  • Page 23 Levelflex FMP53 PROFIBUS PA Electrical connection Block diagram PROFIBUS PA / FOUNDATION Fieldbus A0036530  7 Block diagram PROFIBUS PA / FOUNDATION Fieldbus Cable screen; observe cable specifications Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector)
  • Page 24 Electrical connection Levelflex FMP53 PROFIBUS PA 7.1.2 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal +...
  • Page 25 Levelflex FMP53 PROFIBUS PA Electrical connection 7.1.3 Power supply PROFIBUS PA, FOUNDATION Fieldbus "Power supply; Output" "Approval" Terminal voltage E: 2-wire; FOUNDATION Fieldbus, switch output • Non-Ex 9 to 32 V G: 2-wire; PROFIBUS PA, switch output • Ex nA •...

  • Page 26: Connecting The Measuring Device

    Electrical connection Levelflex FMP53 PROFIBUS PA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K Connecting the measuring device...
  • Page 27 Levelflex FMP53 PROFIBUS PA Electrical connection 7.2.2 Connecting A0036418  8 Dimensions: mm (in) Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. Remove the cable sheath.
  • Page 28 Electrical connection Levelflex FMP53 PROFIBUS PA 7.2.3 Plug-in spring-force terminals In the case of devices without integrated overvoltage protection, electrical connection is via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can be inserted directly into the terminal without using the lever, and create a contact automatically.

  • Page 29: Post-Connection Check

    Levelflex FMP53 PROFIBUS PA Integration into a PROFIBUS network Turning securing clamp 90 ° counterclockwise and tighten the clamp with 2.5 Nm (1.84 lbf ft) again using the Allen key (3 mm). Post-connection check  Is the device or cable undamaged (visual check)? ...

  • Page 30: Set Device Address

    Integration into a PROFIBUS network Levelflex FMP53 PROFIBUS PA Set device address A0015686  10 Address switches in terminal compartment 8.2.1 Hardware adressing Set switch 8 to "OFF". Define the address with switches 1 to 7 according to the table below.
  • Page 31 Levelflex FMP53 PROFIBUS PA Integration into a PROFIBUS network A0015903  12 Example of software addressing; switch 8 is in position "ON"; the address is defined in the operating menu (Setup → Device address) Endress+Hauser...

  • Page 32: Commissioning Via Wizard

    If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser...

  • Page 33: Commissioning (Via Operating Menu)

    Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) Commissioning (via operating menu) 10.1 Display and operating module 10.1.1 Display appearance User ABC_ DEFG HIJK LMNO PQRS TUVW A0012635  13 Appearance of the display and operation module for on-site operation Measured value display (1 value max.
  • Page 34 Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA 10.1.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0018330 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).
  • Page 35 Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) 10.1.3 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Env.curve •...

  • Page 36: Operating Menu

    Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA 10.2 Operating menu Parameter/Submenu Meaning Description Language Defines the operating language of the on-site display. Setup When appropriate values have been assigned toall setup parameters, the measured should be completely configured in a standard application.

  • Page 37: Unlock The Device

    Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) 10.3 Unlock the device If the device has been locked, it must be unlocked before the measurement can be configured. For details refer to the Operating Instructions of the device: BA01007F (FMP53, PROFIBUS PA) 10.4...

  • Page 38: Configuration Of A Level Measurement

    Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA 10.5 Configuration of a level measurement 20 mA 100% 4 mA A0011360  15 Configuration parameters for level measurements in liquids LN = Length of probe R = Reference point of the measurement...

  • Page 39: User-Specific Applications

    Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) Setup → Full calibration  Enter distance F between the minimum (0%) and maximum (100%) level. Setup → Level  Displays the measured level L. 10. Setup → Distance  Displays the distance D between the reference point R and the level L.
