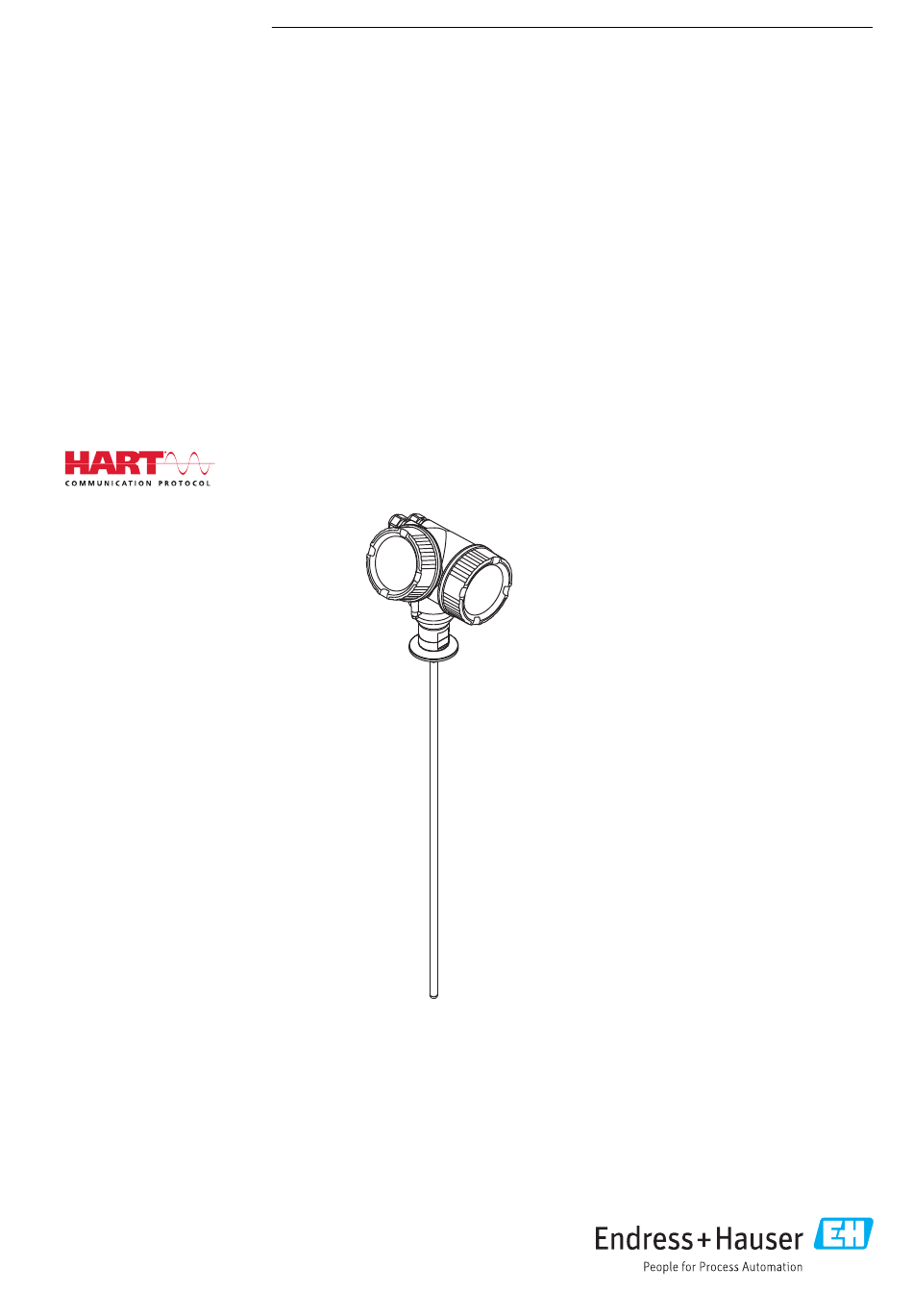

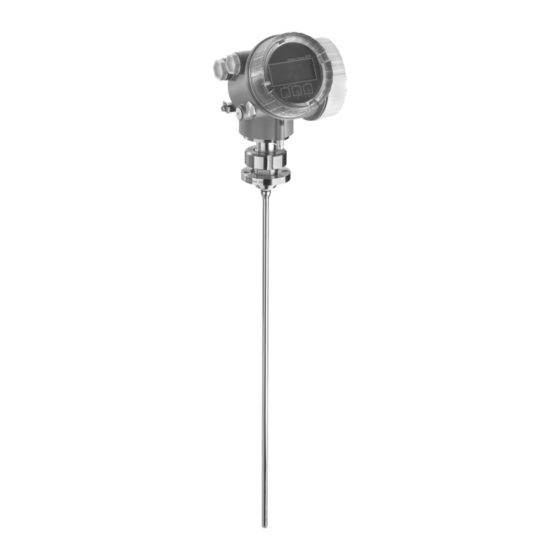

  • Page 1 Products Solutions Services BA01002F/00/EN/19.17 71385422 01.03.zz (Device firmware) Operating Instructions Levelflex FMP53 HART Guided wave radar...
  • Page 2 Levelflex FMP53 HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Levelflex FMP53 HART Table of contents Table of contents 6.2.4 Turning the display module ..34 Important document information ..5 Post-installation check ....35 Document function .
  • Page 4 Table of contents Levelflex FMP53 HART 15.1.2 Mounting bracket for the electronics Commissioning via operating housing ..... . menu ......70 15.1.3 Weld-in adpater .

  • Page 5: Important Document Information

    Levelflex FMP53 HART Important document information Important document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 6: Symbols For Certain Types Of Information

    Important document information Levelflex FMP53 HART Symbol Meaning Cross-head screwdriver A0011219 Allen key A0011221 Hexagon wrench A0011222 1.2.4 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted. Preferred Procedures, processes or actions that are preferred.

  • Page 7: Symbols At The Device

    Levelflex FMP53 HART Important document information 1.2.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables.

  • Page 8: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Endress+Hauser...

  • Page 9: Safety Instructions (Xa)

    Levelflex FMP53 HART Important document information 1.3.1 Safety Instructions (XA) Depending on the approval, the following Safety Instructions (XA) are supplied with the device. They are an integral part of the Operating Instructions. Feature 010 Approval Available for Feature 020: "Power Supply; Output"...
  • Page 10 Important document information Levelflex FMP53 HART Feature 010 Approval Available for Feature 020: "Power Supply; Output" NEPSI Ex d[ia] IIC T6 Ga/Gb, DIP A20/21 T85…90°C FMP53 XA00639F XA00639F XA00639F XA00645F XA00639F IP66 FM/CSA IS+XP Cl.I,II,III Div.1 Gr.A-G FMP53 XA00531F XA00531F...
  • Page 11 Levelflex FMP53 HART Important document information Ex-marking in case of connected FHX50 remote display If the device is prepared for the remote display FHX50 (product structure: feature 030: Display, Operation", option L or M), the Ex marking of some certificates changes according to the following table Feature 010 ("Approval") Feature 030 ("Display, Operation") Ex-marking...

  • Page 12: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 13: Workplace Safety

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Endress+Hauser...

  • Page 14: Eac Conformity

    The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the EAC mark. Endress+Hauser...

  • Page 15: Product Description

    Levelflex FMP53 HART Product description Product description Product design 3.1.1 Levelflex FMP53 A0013421  1 Design of the Levelflex Electronics housing Process connection Rod probe Endress+Hauser...

  • Page 16: Electronics Housing

    Product description Levelflex FMP53 HART 3.1.2 Electronics housing A0012422  2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals)

  • Page 17: Registered Trademarks

    Levelflex FMP53 HART Product description Registered trademarks HART ® Registered trademark of the FieldComm Group, Austin, USA KALREZ ® , VITON ® Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA TEFLON ® Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA TRI CLAMP ®...

  • Page 18: Incoming Acceptance And Product

    • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. Endress+Hauser...

  • Page 19: Nameplate

    Levelflex FMP53 HART Incoming acceptance and product identification 4.2.1 Nameplate 92 (3.62) Order code: Ser. no.: Ext. ord. cd.: MWP: LN = Lref = Mat.: DeviceID: Dev.Rev.: if modification see sep. label Date: mm (in) A0010725  3 Nameplate of the Levelflex...

  • Page 20: Storage, Transport

    Storage, Transport Levelflex FMP53 HART Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point WARNING Housing or probe may be damaged or break away.

  • Page 21: Mounting

    Levelflex FMP53 HART Mounting Mounting Mounting requirements 6.1.1 Suitable mounting position A0014130  4 Mounting requirements for Levelflex Mounting distances • Distance (A) between wall and rod probe: – for smooth metallic walls: > 50 mm (2 in) – for plastic walls: > 300 mm (12 in) to metallic parts outside the vessel •...
  • Page 22 Mounting Levelflex FMP53 HART Additional conditions • When mounting in the open, a weather protection cover (1) may be installed to protect the device against extreme weather conditions. • Do not mount the probe in the filling curtain (2). When mounting the electronics housing into a recess (e.g. in a concrete ceiling), observe a minimum distance of 100 mm (4 inch) between the cover of the terminal compartment / electronics compartment and the wall.

  • Page 23: Applications With Restricted Mounting Space

    Levelflex FMP53 HART Mounting 6.1.2 Applications with restricted mounting space Mounting with remote sensor The device version with a remote sensor is suited for applications with restricted mounting space. In this case the electronics housing is mounted at a separate position from which it is easier accessible.
  • Page 24 Mounting Levelflex FMP53 HART Divisible probes SW10 AF10 A0014166 If there is little mounting space (distance to the ceiling), it is advisable to use divisible rod probes ( 8 mm). • max. probe length 6 m/236 inch • max. sideways capacity 10 Nm •...

  • Page 25: Notes On The Mechanical Load Of The Probe

    Levelflex FMP53 HART Mounting 6.1.3 Notes on the mechanical load of the probe Bending strength of rod probes Sensor Feature 060 Probe Bending strength [Nm] FMP53 DA, DB, EA, EB Rod 8mm (0.31") 316L FA, FB, GA, GB, HA, HB, IA, IB Rod 8mm (0.31") 316L divisible...

  • Page 26: Special Mounting Conditions

    Mounting Levelflex FMP53 HART 6.1.4 Special mounting conditions Tanks with spray ball for cleaning the probe A0014131 Installation close to tank wall By installing the probe close to the tank wall, the cleaning effect is improved in cases where a spray ball is used. The cleaning jet is deflected against the tank wall and onto the probe.
  • Page 27 Levelflex FMP53 HART Mounting Installation at an angle A0014145 • For mechanical reasons, the probe should be installed as vertically as possible. • With inclined installations the probe length has to be adjusted in dependence to the installation angle. – Up to LN = 1 m (3.3 ft): α = 30°...
  • Page 28 Mounting Levelflex FMP53 HART Non-metallic vessels A0012527 Non-metallic vessel Metal sheet or metal flange To ensure reliable measurements in non-metallic vessels mount a metal sheet with a diameter of at least 200 mm (8 in) to the probe at the process connection. Its orientation must be perpendicular to the probe.
  • Page 29 Levelflex FMP53 HART Mounting Plastic or glass tanks: Mounting the probe externally at the wall A0014150 Plastic or glass tank Metall sheet with threaded sleeve No free space between tank wall and probe! Requirements • The dielectric constant of the medium must be at least DC > 7.
  • Page 30 Mounting Levelflex FMP53 HART Step Parameter Action Expert → Sensor → Gas phase compensation → GPC Select the Const. GPC factor option. mode Expert → Sensor → Gas phase compensation → Const. Enter quotient: "(Actual probe length)/(Measured GPC factor probe length)".
  • Page 31 Levelflex FMP53 HART Mounting Vessels with heat insulation If process temperatures are high, the device must be included in normal tank insulation to prevent the electronics heating up as a result of heat radiation or convection. The insulation may not exceed beyond the points labeled "MAX" in the drawings.

  • Page 32: Mounting The Device

    Mounting Levelflex FMP53 HART Mounting the device 6.2.1 Required mounting tools • To shorten rod or coax probes: Saw • For flanges and other process connections: appropriate mounting tools • To turn the housing: Hexagonal wrench 8 mm 6.2.2 Mounting the "Sensor remote" version This section is only valid for devices of the version "Probe Design"...

  • Page 33: Turning The Transmitter Housing

    Levelflex FMP53 HART Mounting Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 127...140 (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  6 Mounting the electronics housing using the mounting bracket; dimensions: mm (In) Wall mounting Pipe mounting Connecting the cable Required tools: •...

  • Page 34: Turning The Display Module

    Mounting Levelflex FMP53 HART max. 350° 8 mm 8 mm A0032242 1. Unscrew the securing screw using an open-ended wrench. 2. Rotate the housing in the desired direction. 3. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or stainless steel housing).

  • Page 35: Post-Installation Check

    Levelflex FMP53 HART Mounting Post-installation check Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 36: Electrical Connection

    Electrical connection Levelflex FMP53 HART Electrical connection Connection conditions 7.1.1 Terminal assignment 2-wire: 4-20mA HART – – 4...20 mA – – 4...20 mA A0011294  7 Terminal assignment 2-wire; 4-20mA HART Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥...
  • Page 37 Levelflex FMP53 HART Electrical connection 2-wire: 4-20mA HART, switch output – ≥250 Ω 4...20 mA – ≥250 Ω 4...20 mA A0013759  8 Terminal assignment 2-wire; 4-20mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥...
  • Page 38 Electrical connection Levelflex FMP53 HART 2-wire: 4-20mA HART, 4-20mA – 4...20 mA – 4...20 mA – 4...20 mA – 4...20 mA A0013923  9 Terminal assignment 2-wire, 4-20 mA HART, 4...20mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 2 Connection current output 1 Supply voltage for current output 1 (e.g.
  • Page 39 Levelflex FMP53 HART Electrical connection 4-wire: 4-20mA HART (10.4 to 48 V ≥250 Ω 4...20 mA A0011340  10 Terminal assignment 4-wire; 4-20mA HART (10.4 to 48 V Evaluation unit, e.g. PLC HART communication resistor (≥ 250 Ω): Observe maximum load...
  • Page 40 Electrical connection Levelflex FMP53 HART 4-wire: 4-20mA HART (90 to 253 V ≥250 Ω 4...20 mA A0018965  11 Terminal assignment 4-wire; 4-20mA HART (90 to 253 V Evaluation unit, e.g. PLC HART communication resistor (≥ 250 Ω): Observe maximum load...

  • Page 41: Cable Specification

    Levelflex FMP53 HART Electrical connection Connection examples for the switch output A0015909  12 Connection of a relay A0015910  13 Connection of a digital input Suitable relays (examples): Pull-up resistor • Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with mounting Digital input rail connector UMK-1 OM-R/AMS •...

  • Page 42: Device Plug Connectors

    Electrical connection Levelflex FMP53 HART 7.1.3 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected...

  • Page 43: Power Supply

    Levelflex FMP53 HART Electrical connection 7.1.4 Power supply 2-wire, 4-20mA HART, passive 2-wire; 4-20mA HART "Approval" Terminal voltage U at the device Maximum load R, depending on the supply voltage U at the supply unit • Non-Ex 11.5 to 35 V R [ ] •...
  • Page 44 Electrical connection Levelflex FMP53 HART 2-wire; 4-20 mA HART, switch output "Approval" Terminal voltage U at the device Maximum load R, depending on the supply voltage U at the supply unit • Non-Ex 13.5 to 35 V R [ ] •...
  • Page 45 Levelflex FMP53 HART Electrical connection Polarity reversal protection Admissible residual ripple < 1 V at f = 0 to 100 Hz Admissible residual ripple < 10 mV at f = 100 to 10000 Hz Endress+Hauser...

  • Page 46: Overvoltage Protection

    < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...

  • Page 47: Plug-In Spring-Force Terminals

    Levelflex FMP53 HART Electrical connection 3 mm A0012619  14 Dimensions: mm (in) 1. Loosen the screw of the securing clamp on the connection compartment cover and turn the securing clamp 90° counterclockwise. 2. Unscrew the connection compartment cover. 3. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.

  • Page 48: Post-Connection Check

    Electrical connection Levelflex FMP53 HART inserted directly into the terminal without using the lever, and create a contact automatically. ≤ 3 (0.12) A0013661  15 Dimensions: mm (in) To remove cables from the terminal: 1. Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes 2.

  • Page 49: Operation Options

    Levelflex FMP53 HART Operation options Operation options Overview 8.1.1 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0032219 A0032221 Display 4-line display 4-line display elements white background lighting; switches to red in...

  • Page 50: Operation With Remote Display And Operating Module Fhx50

    Operation options Levelflex FMP53 HART 8.1.2 Operation with remote display and operating module FHX50 A0032215  16 FHX50 operating options Housing of the remote display and operating module FHX50 Display and operating module SD02, push buttons; cover must be removed Display and operating module SD03, optical keys;...
  • Page 51 Levelflex FMP53 HART Operation options Via service interface (CDI) A0032466 Service interface (CDI) of the measuring device Commubox FXA291 Computer with DeviceCare/FieldCare operating tool Endress+Hauser...

  • Page 52: Structure And Function Of The Operating Menu

    Operation options Levelflex FMP53 HART Structure and function of the operating menu 8.2.1 Structure of the operating menu Menu Submenu / Meaning parameter Language Defines the operating language of the on- site display Commissioning Launches the interactive wizard for guided commissioning.
  • Page 53 Levelflex FMP53 HART Operation options Menu Submenu / Meaning parameter Communication Contains all parameters needed to configure the digital communication interface. Diagnostics Contains all parameters needed to detect and analyze operational errors. If operating via operating tools (e.g. FieldCare), the "Language" parameter is located under "Setup → ...

  • Page 54: User Roles And Related Access Authorization

    Operation options Levelflex FMP53 HART 8.2.2 User roles and related access authorization The two user roles Operator and Maintenance have different write access to the parameters if a device-specific access code has been defined. This protects the device configuration via the local display from unauthorized access →  55.

  • Page 55: Write Protection Via Access Code

    Levelflex FMP53 HART Operation options 8.2.3 Write protection via access code Using the device-specific access code, the parameters for the measuring device configuration are write-protected and their values can no longer be changed via local operation. Define access code via local display 1.

  • Page 56: Disabling Write Protection Via Access Code

    Operation options Levelflex FMP53 HART 8.2.4 Disabling write protection via access code If the -symbol appears on the local display in front of a parameter, the parameter is write-protected by a device-specific access code and its value cannot be changed at the moment using the local display →...
  • Page 57 Levelflex FMP53 HART Operation options XXXXXXXXXXXXX 3 mm A0026157 1. Loosen the securing clamp. 2. Unscrew the electronics compartment cover. 3. Pull out the display module with a gentle rotational movement. To make it easier to access the lock switch, attach the display module to the edge of the electronics compartment.
  • Page 58 Operation options Levelflex FMP53 HART 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables hardware write protection. Setting the write protection switch (WP) on the main electronics module to the OFF position (factory setting) disables hardware write protection.

  • Page 59: Enabling And Disabling The Keypad Lock

    Levelflex FMP53 HART Operation options 8.2.7 Enabling and disabling the keypad lock The keypad lock makes it possible to block access to the entire operating menu via local operation. As a result, it is no longer possible to navigate through the operating menu or change the values of individual parameters.

  • Page 60: Display And Operating Module

    Operation options Levelflex FMP53 HART Display and operating module 8.3.1 Display appearance User ABC_ DEFG HIJK PQRS TUVW LMNO A0012635  18 Appearance of the display and operation module for on-site operation Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active) 1.2 Measured value symbols...
  • Page 61 Levelflex FMP53 HART Operation options Display symbols for the submenus Symbol Meaning Display/operation Is displayed: • in the main menu next to the selection "Display/operation" A0018367 • in the header, if you are in the "Display/operation" menu Setup Is displayed: •...
  • Page 62 Operation options Levelflex FMP53 HART Measured value symbols Symbol Meaning Measured values Level A0032892 Distance A0032893 Current output A0032908 Measured current A0032894 Terminal voltage A0032895 Temperature of the electronics or the sensor A0032896 Measuring channels Measuring channel 1 A0032897 Measuring channel 2...

  • Page 63: Operating Elements

    Levelflex FMP53 HART Operation options 8.3.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0018330 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).

  • Page 64: Entering Numbers And Text

    Operation options Levelflex FMP53 HART 8.3.3 Entering numbers and text Numeric editor Text editor User ABC_ DEFG HIJK LMNO PQRS TUVW A0013999 A0013941 Editing view Display area of the entered values Input mask Operating elements Input mask The following input symbols are available in the input mask of the numeric and text editor:...
  • Page 65 Levelflex FMP53 HART Operation options Confirms selection. A0013985 Switches to the selection of the correction tools. A0013987 Exits the input without applying the changes. A0013986 Clears all entered characters. A0014040 Correction symbols under Symbol Meaning Clears all entered characters. A0032907 Moves the input position one position to the right.

  • Page 66: Opening The Context Menu

    Operation options Levelflex FMP53 HART 8.3.4 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Env.curve • Keylock on Opening and closing the context menu The user is in the operational display.

  • Page 67: Envelope Curve On The Display And Operating Module

    Levelflex FMP53 HART Operation options 8.3.5 Envelope curve on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be displayed: (2s)

  • Page 68: Device Integration Via The Hart

    Device integration via the HART protocol Levelflex FMP53 HART Device integration via the HART protocol Overview of the Device Description files (DD) HART Manufacturer ID 0x11 Device type 0x1122 HART specification DD files For information and files see: • www.endress.com •...

  • Page 69: Commissioning Via Wizard

    If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser...

  • Page 70: Commissioning Via Operating

    Commissioning via operating menu Levelflex FMP53 HART Commissioning via operating menu 11.1 Installation and function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post-installation check" →  35 • Checklist "Post-connection check" →  48 11.2...

  • Page 71: Configuration Of A Level Measurement

    Levelflex FMP53 HART Commissioning via operating menu 11.3 Configuration of a level measurement 20 mA 100% 4 mA A0011360  20 Configuration parameters for level measurements in liquids Length of probe Reference point of the measurement Distance Level Empty calibration (= Zero point)
  • Page 72 Commissioning via operating menu Levelflex FMP53 HART 11. For operation via local display: Navigate to: Setup → Mapping → Confirm distance  Compare the displayed distance to the real distance in order to start the recording of the mapping curve if required.

  • Page 73: Recording The Reference Curve

    Levelflex FMP53 HART Commissioning via operating menu 11.4 Recording the reference curve After the configuration of the measurement it is recommended to record the current envelope curve as a reference curve. The reference curve can be used later on in the process for diagnostic purposes.

  • Page 74: Configuration Of The On-Site Display

    Commissioning via operating menu Levelflex FMP53 HART 11.5 Configuration of the on-site display 11.5.1 Factory settings of the on-site display for level measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current output outputs Format display 1 value, max.

  • Page 75: Configuration Of The Current Outputs

    Levelflex FMP53 HART Commissioning via operating menu 11.6 Configuration of the current outputs 11.6.1 Factory setting of the current outputs for level measurements Current output Allocated measuring 4mA value 20mA value vlaue Level linearized 0% or the corresponding 100% or the corresponding...

  • Page 76: Configuration Management

    Commissioning via operating menu Levelflex FMP53 HART 11.7 Configuration management After commissioning, you can save the current device configuration, copy it to another measuring point or restore the previous device configuration. You can do so using the Configuration management parameter and its options.

  • Page 77: Protection Of The Settings Against Unauthorized Changes

    Levelflex FMP53 HART Commissioning via operating menu 11.8 Protection of the settings against unauthorized changes There are two ways to protect the settings against unauthorized changes: • Via parameter settings (software locking) →  55 • Via locking switch (hardware locking) →  56...

  • Page 78: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Levelflex FMP53 HART Diagnostics and troubleshooting 12.1 General trouble shooting 12.1.1 General errors Error Possible cause Remedial action Device does not respond. Supply voltage does not match the Connect the correct voltage. value indicated on the nameplate.

  • Page 79: Parametrization Errors

    Levelflex FMP53 HART Diagnostics and troubleshooting 12.1.2 Parametrization errors Parametrization errors for level measurements Error Possible cause Remedial action Measured value wrong If measured distance(Setup • Check and adjust the Empty → Distance) matches the real calibration parameter (→  118) if distance: necessary.

  • Page 80: Diagnostic Information On Local Display

    Diagnostics and troubleshooting Levelflex FMP53 HART 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the measured value display. Measured value display in alarm condition...
  • Page 81 Levelflex FMP53 HART Diagnostics and troubleshooting Diagnostics event and event text The fault can be identified using the diagnostics event. The event text helps you by providing information about the fault. In addition, the corresponding symbol is displayed before the diagnostics event.

  • Page 82: Calling Up Remedial Measures

    Diagnostics and troubleshooting Levelflex FMP53 HART 12.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2 Diagnostics 3...

  • Page 83: Diagnostic Event In The Operating Tool

    Levelflex FMP53 HART Diagnostics and troubleshooting 12.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status in the operating tool along with the corresponding symbol for event level in accordance with NAMUR NE 107: •...

  • Page 84: Diagnostic List

    Diagnostics and troubleshooting Levelflex FMP53 HART 3. Click "Save as ..." and save a PDF of the protocol.  The protocol contains the diagnostic messages and remedy information. C: Via the "Eventlist / Extended HistoROM" function Select the "Eventlist / Extended HistoROM" function.

  • Page 85: List Of Diagnostic Events

    Levelflex FMP53 HART Diagnostics and troubleshooting 12.5 List of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Broken probe detected 1. Check map Alarm 2. Check sensor...
  • Page 86 Diagnostics and troubleshooting Levelflex FMP53 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Trim 1 to 2 Carry out trim Warning Linearization Check linearization table Alarm Configuration 1. Restart device Alarm incompatible 2.

  • Page 87: Event Logbook

    Levelflex FMP53 HART Diagnostics and troubleshooting 12.6 Event logbook 12.6.1 Event history A chronological overview of the event messages that have occurred is provided in the Event list submenu Navigation path Diagnostics → Event logbook → Event list A maximum of 100 event messages can be displayed in chronological order.
  • Page 88 Diagnostics and troubleshooting Levelflex FMP53 HART Info number Info name I1092 Embedded HistoROM deleted I1110 Write protection switch changed I1137 Electronic changed I1151 History reset I1154 Reset terminal voltage min/max I1155 Reset electronic temperature I1156 Memory error trend I1157 Memory error event list...

  • Page 89: Firmware History

    Levelflex FMP53 HART Diagnostics and troubleshooting 12.7 Firmware history Date Firmware Modifications Documentation (FMP53, HART) version Operating Instructions Description of Parameters Technical Information 07.2010 01.00.zz Original software BA01002F/00/EN/05.10 GP01000F/00/EN/05.10 TI01002F/00/EN/05.10 01.2011 01.01.zz • SIL integrated • BA01002F/00/EN/10.10 • GP01000F/00/EN/10.10 • TI01002F/00/EN/10.10 •...

  • Page 90: Maintenance

    Maintenance Levelflex FMP53 HART Maintenance The measuring device requires no special maintenance. 13.1 Exterior cleaning When exterior-cleaning the device, always use cleaning agents that do not attack the surface of the hosuing and the seals. 13.2 Cleaning the probe 13.2.1...

  • Page 91: Cleaning The Probe Outside The Tank

    Levelflex FMP53 HART Maintenance 13.2.2 Cleaning the probe outside the tank The probe can be disassembled so it can be cleaned better. The disassembly requires the following tools: • vise with fiber braces (surface protection for the polished probe rod) •...

  • Page 92: Repairs

    14.1.1 Repair concept The Endress+Hauser repair concept assumes that the devices have a modular design and that repairs can be done by the Endress+Hauser service or specially trained customers. Spare parts are contained in suitable kits. They contain the related replacement instructions.

  • Page 93: Spare Parts

    The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.

  • Page 94: Accessories

    Accessories Levelflex FMP53 HART Accessories 15.1 Device-specific accessories 15.1.1 Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  24 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").

  • Page 95: Mounting Bracket For The Electronics Housing

    Levelflex FMP53 HART Accessories 15.1.2 Mounting bracket for the electronics housing Accessory Description Mounting bracket for the electronics housing ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  25 Mounting bracket for the electronics housing; Dimensions: mm (in)

  • Page 96: Protective Cover

    Accessories Levelflex FMP53 HART 15.1.4 Protective cover Accessory Description Protective cover A0013589 With the protective cover the probe can be locked with dismantled electronics. Order no.: 71041379 For details refer to Operating Instructions BA362F. 15.1.5 Calibration kit Accessory Description Calibration kit The calibration kit is used to regularly test the accuracy and reproducibility of the Levelflex FMP53 level measurement device.

  • Page 97: Remote Display Fhx50

    Levelflex FMP53 HART Accessories 15.1.6 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: – Plastic PBT – 316L/1.4404 – Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: –...

  • Page 98: Overvoltage Protection

    Accessories Levelflex FMP53 HART 15.1.7 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold impulse voltage: < 800 V •...

  • Page 99: Communication-Specific Accessories

    For details refer to Technical Information TI00404F Accessory Description Commubox FXA291 Connects Endress+Hauser field devices with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a computer. Order code: 51516983  For details refer to Technical Information TI00405C...

  • Page 100: Service-Specific Accessories

    Fieldgate FXA42, FXA30 and FXA30B. SupplyCare Hosting is offered as a hosting service (Software as a Service, SaaS). In the Endress+Hauser portal, the user is provided with the data over the Internet. ...

  • Page 101: System Components

    Levelflex FMP53 HART Accessories 15.4 System components Accessory Description Graphic Data Manager The graphic data manager Memograph M provides information on all the relevant Memograph M process variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on an SD card or USB stick.

  • Page 102: Operating Menu

    Operating menu Levelflex FMP53 HART Operating menu 16.1 Overview of the operating menu (display module) Navigation  Operating menu Language →  160  Setup →  116 Device tag →  116 Distance unit →  116 Tank type →...
  • Page 103 Levelflex FMP53 HART Operating menu ‣ Level →  127 Medium type →  127 Medium property →  127 Process property →  128 Advanced process conditions →  129 Level unit →  130 Blocking distance →  130 →...
  • Page 104 Operating menu Levelflex FMP53 HART ‣ SIL/WHG confirmation →  145 ‣ Deactivate SIL/WHG →  146 Reset write protection →  146 Code incorrect →  146 ‣ →  147 Probe settings Probe grounded →  147 ‣...
  • Page 105 Levelflex FMP53 HART Operating menu Switch-off delay →  158 Failure mode →  158 Switch status →  158 Invert output signal →  158 ‣ Display →  160 Language →  160 Format display →  160 →...
  • Page 106 Operating menu Levelflex FMP53 HART Configuration management →  166 Comparison result →  167 ‣ Administration →  169 ‣ Define access code →  171 →  171 Define access code Confirm access code →  171 Device reset →...
  • Page 107 Levelflex FMP53 HART Operating menu Device ID →  177 Device type →  178 Manufacturer ID →  178 ‣ Measured values →  179 Distance →  119 Level linearized →  137 Output current 1 to 2 →...
  • Page 108 Operating menu Levelflex FMP53 HART Last check time →  189 Level signal →  190 Launch signal →  190 Endress+Hauser...

  • Page 109: Tool)

    Levelflex FMP53 HART Operating menu 16.2 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  116 Device tag →  116 Distance unit →  116 Tank type →  116 Tube diameter →  117 Medium group →...
  • Page 110 Operating menu Levelflex FMP53 HART Advanced process conditions →  129 Level unit →  130 Blocking distance →  130 Level correction →  131 ‣ →  133 Linearization Linearization type →  135 Unit after linearization →  136 Free text →...
  • Page 111 Levelflex FMP53 HART Operating menu ‣ Deactivate SIL/WHG →  146 Reset write protection →  146 Code incorrect →  146 ‣ Probe settings →  147 Probe grounded →  147 Present probe length →  147 Confirm probe length →...
  • Page 112 Operating menu Levelflex FMP53 HART Switch status →  158 Invert output signal →  158 ‣ Display →  160 Language →  160 →  160 Format display Value 1 to 4 display →  162 Decimal places 1 to 4 →...
  • Page 113 Levelflex FMP53 HART Operating menu Backup state →  167 Comparison result →  167 ‣ Administration →  169 Define access code →  171 Device reset →  169  Diagnostics →  172 Actual diagnostics →  172 →...
  • Page 114 Operating menu Levelflex FMP53 HART Device type →  178 Manufacturer ID →  178 ‣ Measured values →  179 Distance →  119 →  137 Level linearized Output current 1 to 2 →  153 Measured current 1 →...
  • Page 115 Levelflex FMP53 HART Operating menu Level signal →  190 Launch signal →  190 ‣ Heartbeat →  191 Endress+Hauser...

  • Page 116: Setup" Menu

    Operating menu Levelflex FMP53 HART 16.3 "Setup" menu • : Marks the navigation path to the parameter via the display and operating module. • : Marks the navigation path to the parameter via an operating tool (e.g. FieldCare). • : Marks parameters which can be locked via the software locking →  55.

  • Page 117: Tube Diameter

    Levelflex FMP53 HART Operating menu Additional information • Depending on the probe some of the options mentioned above may not be available or there may be additional options. • For coax probes and probes with metallic center washer Tank type parameter corresponds to the type of probe and cannot be changed.

  • Page 118: Empty Calibration

    Operating menu Levelflex FMP53 HART Empty calibration  Navigation  Setup → Empty calibration Description Distance between process connection and minimum level (0%). User entry Depending on the probe Factory setting Depending on the probe Additional information A0013178  26...

  • Page 119: Level

    Levelflex FMP53 HART Operating menu Additional information 100% A0013186  27 Full calibration (F) for level measurements in liquids Level Navigation  Setup → Level Description Displays measured level L (before linearization). Additional information A0013194  28 Level in case of liquid measurements The unit is defined in the Level unit parameter (→...

  • Page 120: Signal Quality

    Operating menu Levelflex FMP53 HART Additional information A0013198  29 Distance for liquid measurements The unit is defined in the Distance unit parameter (→  116). Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the evaluated echo.
  • Page 121 Levelflex FMP53 HART Operating menu Confirm distance  Navigation  Setup → Confirm distance Description Specify, whether the measured distance matches the real distance. Depending on the selection the device automatically sets the range of mapping. Selection • Manual map •...
  • Page 122 Operating menu Levelflex FMP53 HART Present mapping Navigation  Setup → Present mapping Description Indicates up to which distance a mapping has already been recorded. Mapping end point  Navigation  Setup → Mapping end point Prerequisite Confirm distance (→  121) = Manual map or Distance too small Description Specify new end of the mapping.
  • Page 123 Levelflex FMP53 HART Operating menu Additional information Meaning of the options • No The map is not recorded. • Record map The map is recorded. After the recording is completed, the new measured distance and the new mapping range appear on the display. When operating via the local display, these values must be confirmed by pressing .

  • Page 124: Mapping" Wizard

    Operating menu Levelflex FMP53 HART 16.3.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  116).

  • Page 125: Advanced Setup" Submenu

    Levelflex FMP53 HART Operating menu 16.3.2 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active. User interface •...

  • Page 126: Access Status Display

    • If no key is pressed for 10 min, or the user switches from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...

  • Page 127: Level

    Levelflex FMP53 HART Operating menu "Level" submenu Navigation  Setup → Advanced setup → Level Medium type  Navigation  Setup → Advanced setup → Level → Medium type Description Specify type of medium. User interface • Liquid • Solid...

  • Page 128: Process Property

    • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) For EOP level evaluation = Fix DC, the exact dielectric constant has to be entered into the DC value parameter. Therefore, the Medium property parameter is not available in this case.

  • Page 129: Advanced Process Conditions

    Levelflex FMP53 HART Operating menu For "Operating mode" = "Level" and "Medium type" = "Solid" Process property Step response time / s Very fast > 100 m (333 ft) /h Fast > 10 m (33 ft) /h Standard < 10 m (33 ft) /h Medium <...

  • Page 130: Level Unit

    Operating menu Levelflex FMP53 HART Level unit  Navigation  Setup → Advanced setup → Level → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm Factory setting...

  • Page 131: Level Correction

    Levelflex FMP53 HART Operating menu A0013219  30 Blocking distance (UB) for liquid measurements Level correction  Navigation  Setup → Advanced setup → Level → Level correction Description Specify level correction (if required). User entry –200 000.0 to 200 000.0 % Factory setting 0.0 %...
  • Page 132 Operating menu Levelflex FMP53 HART "Linearization" submenu 100% L‘ I‘ L‘ 100% L‘1 L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0016084  31 Linearization: Transformation of the level and (if relevant) the interface height into a volume or weight;...

  • Page 133: Linearization

    Levelflex FMP53 HART Operating menu Structure of the submenu on the display module Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type →  135 Unit after linearization →  136 Free text →  137 Maximum value →...
  • Page 134 Operating menu Levelflex FMP53 HART Structure of the submenu in an operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type →  135 Unit after linearization →  136 Free text →  137 Level linearized →...

  • Page 135: Linearization Type

    Levelflex FMP53 HART Operating menu Description of parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Linearization type Description Select linearization type. Selection • None • Linear • Table •...

  • Page 136: Unit After Linearization

    Operating menu Levelflex FMP53 HART Meaning of the options • None The level is transmitted in the level unit without linearization. • Linear The output value (volume/weight) is directly proportional to the level L. This is valid, for example, for vertical cylinders. The following additional parameters have to be specified: –...

  • Page 137: Free Text

    Levelflex FMP53 HART Operating menu Selection SI units US units Imperial units • STon • lb impGal • t • UsGal • kg • ft³ • cm³ • ft • dm³ • in • m³ • hl • l • % •...

  • Page 138: Maximum Value

    Operating menu Levelflex FMP53 HART Maximum value  Navigation  Setup → Advanced setup → Linearization → Maximum value Prerequisite Linearization type (→  135) has one of the following values: • Linear • Pyramid bottom • Conical bottom • Angled bottom •...
  • Page 139 Levelflex FMP53 HART Operating menu Additional information A0013264 Intermediate height The unit is defined in the Distance unit parameter (→  116). Table mode  Navigation  Setup → Advanced setup → Linearization → Table mode Prerequisite Linearization type (→  135) = Table Description Select editing mode of the linearization table.

  • Page 140: Level

    Operating menu Levelflex FMP53 HART How to enter the table • Via FieldCare The table points can be entered via the Table number (→  140), Level (→  140) and Customer value (→  141) parameters. As an alternative, the graphic table editor may be used: Device Operation →...

  • Page 141: Customer Value

    Levelflex FMP53 HART Operating menu Level (Semiautomatic) Navigation  Setup → Advanced setup → Linearization → Level Prerequisite • Linearization type (→  135) = Table • Table mode (→  139) = Semiautomatic Description Displays measured level (value before linearization). This value is transmitted to the table.

  • Page 142: Safety Settings

    Operating menu Levelflex FMP53 HART "Safety settings" submenu Navigation  Setup → Advanced setup → Safety settings Output echo lost  Navigation  Setup → Advanced setup → Safety settings → Output echo lost Description Output signal in case of a lost echo.

  • Page 143: Ramp At Echo Lost

    Levelflex FMP53 HART Operating menu Ramp at echo lost  Navigation  Setup → Advanced setup → Safety settings → Ramp at echo lost Prerequisite Output echo lost (→  142) = Ramp at echo lost Description Slope of the ramp in the case of a lost echo...
  • Page 144 Operating menu Levelflex FMP53 HART due to a level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: •...

  • Page 145: Sil/Whg Confirmation

    Levelflex FMP53 HART Operating menu "SIL/WHG confirmation" wizard The SIL/WHG confirmation wizard is only available for devices with SIL or WHG approval (Feature 590: "Additional Approval", option LA: "SIL" or LC: "WHG overfill prevention" ) which are currently not in the SIL- or WHG-locked state.

  • Page 146: Deactivate Sil/Whg

    Operating menu Levelflex FMP53 HART "Deactivate SIL/WHG" wizard The Deactivate SIL/WHG wizard (→  146) is only visible if the device is SIL-locked or WHG-locked. For details refer to the "Functional Safety Manual" of the respective device. Navigation  Setup → Advanced setup → Deactivate SIL/WHG Reset write protection ...

  • Page 147: Probe Settings

    Levelflex FMP53 HART Operating menu "Probe settings" submenu The Probe settings submenu helps to ensure that the end of probe signal within the envelope curve is correctly assigned by the evaluation algorithm. The assignment is correct if the length of probe indicated by the device matches the acutal lenght of the probe. The automatic probe length correction can only be performed if the probe is installed in the vessel and is completely uncovered (no medium).
  • Page 148 Operating menu Levelflex FMP53 HART Confirm probe length  Navigation  Setup → Advanced setup → Probe settings → Confirm probe length Description Select, whether the value displayed in the Present probe length parameter →  147 matches the actual length of the probe. Based on this input, the device performs a probe length correction.

  • Page 149: Probe Length Correction

    Levelflex FMP53 HART Operating menu "Probe length correction" wizard The Probe length correction wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the probe length correction are located directly in the Probe settings submenu (→  147).

  • Page 150: Current Output 1 To

    Operating menu Levelflex FMP53 HART "Current output 1 to 2" submenu The Current output 2 submenu (→  150) is only available for devices with two current outputs. Navigation  Setup → Advanced setup → Current output 1 to 2 Assign current output 1 to 2 ...

  • Page 151: Current Span

    Levelflex FMP53 HART Operating menu Current span  Navigation  Setup → Advanced setup → Current output 1 to 2 → Current span Description Determines the current range used to transmit the measured value. ‘4…20mA’: Measured variable: 4 …20 mA ‘4…20mA NAMUR’: Measured variable: 3.8 … 20.5 mA ‘4…20mA US’: Measured variable: 3.9 …...

  • Page 152: Damping Output

    Operating menu Levelflex FMP53 HART Damping output  Navigation  Setup → Advanced setup → Current output 1 to 2 → Damping output Description Reaction time of the output signal on fluctuation in the measured value. User entry 0.0 to 999.9 s Factory setting 0.0 s...

  • Page 153: Failure Current

    Levelflex FMP53 HART Operating menu Failure current  Navigation  Setup → Advanced setup → Current output 1 to 2 → Failure current Prerequisite Failure mode (→  152) = Defined value Description Defines which current the output assumes in case of an error.

  • Page 154: Switch Output

    Operating menu Levelflex FMP53 HART "Switch output" submenu The Switch output submenu (→  154) is only visible for devices with switch output. Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch output function Description Defines the function of the switch output.

  • Page 155: Assign Status

    Levelflex FMP53 HART Operating menu Assign status  Navigation  Setup → Advanced setup → Switch output → Assign status Prerequisite Switch output function (→  154) = Digital Output Selection • Off • Digital output AD 1 • Digital output AD 2...

  • Page 156: Switch-On Value

    Operating menu Levelflex FMP53 HART Selection • Alarm • Alarm or warning • Warning Factory setting Alarm Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  154) = Limit Description Defines the switch-on point.

  • Page 157: Switch-On Delay

    Levelflex FMP53 HART Operating menu A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  154) = Limit •...

  • Page 158: Switch-Off Delay

    Operating menu Levelflex FMP53 HART Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  154) = Limit • Assign limit (→  155) ≠ Off Description Defines the delay applied before the output is switched off.
  • Page 159 Levelflex FMP53 HART Operating menu Factory setting Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above.

  • Page 160: Language

    Operating menu Levelflex FMP53 HART "Display" submenu The Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
  • Page 161 Levelflex FMP53 HART Operating menu Additional information 4841.000 Â A0019963  34 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  35 "Format display" = "1 bargraph + 1 value" Â 93.5 Â 159.0 A0019965 ...

  • Page 162: Value 1 To 4 Display

    Operating menu Levelflex FMP53 HART Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • Level linearized • Distance •...

  • Page 163: Display Damping

    Levelflex FMP53 HART Operating menu User entry 1 to 10 s Factory setting Additional information This parameter is only relevant if the number of selected measuring values exceeds the number of values the selected display format can display simultaneously. Display damping ...

  • Page 164: Header Text

    Operating menu Levelflex FMP53 HART Header text  Navigation  Setup → Advanced setup → Display → Header text Prerequisite Header (→  163) = Free text Description Enter display header text. Factory setting ------------ Additional information The number of characters which can be displayed depends on the characters used.

  • Page 165: Backlight

    Levelflex FMP53 HART Operating menu Selection • x • x.x • x.xx • x.xxx • x.xxxx Factory setting x.xxxx Additional information • Is only valid for numbers in the operating menu (e.g. Empty calibration, Full calibration), but not for the measured value display. The number of decimal places for the measured value display is defined in the Decimal places 1 to 4 →...

  • Page 166: Configuration Backup Display

    Operating menu Levelflex FMP53 HART "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).

  • Page 167: Comparison Result

    Levelflex FMP53 HART Operating menu Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
  • Page 168 Operating menu Levelflex FMP53 HART Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.

  • Page 169: Administration

    Enter access code parameter (→  126). Please contact your Endress+Hauser Sales Center if you lose your access code. For display operation: The new access code is only valid after it has been confirmed in the Confirm access code parameter (→...
  • Page 170 Operating menu Levelflex FMP53 HART Additional information Meaning of the options • Cancel No action • To factory defaults All parameters are reset to the order-code specific factory setting. • To delivery settings All parameters are reset to the delivery setting. The delivery setting may differ from the factory default if customer specific settings have been ordered.

  • Page 171: Define Access Code

    Levelflex FMP53 HART Operating menu "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.

  • Page 172: Diagnostics" Menu

    Operating menu Levelflex FMP53 HART 16.4 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnostics Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...

  • Page 173: Operating Time From Restart

    Levelflex FMP53 HART Operating menu Timestamp Navigation  Diagnostics → Timestamp Description Shows the timestamp of the previous diagnostic message. Operating time from restart Navigation  Diagnostics → Operating time from restart Description Displays the time the device has been in operation since the last device restart.

  • Page 174: Diagnostic List" Submenu

    Operating menu Levelflex FMP53 HART 16.4.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 Description Display the current diagnostics messages with the highest to fifth-highest priority.

  • Page 175: Event Logbook" Submenu

    Levelflex FMP53 HART Operating menu 16.4.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".

  • Page 176: Device Information" Submenu

    Shows the serial number of the measuring device. Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.

  • Page 177: Order Code

    Levelflex FMP53 HART Operating menu Order code  Navigation  Diagnostics → Device information → Order code Description Shows the device order code. Additional information The order code is generated from the extended roder code, which defines all device features of the product structure. In contrast, the device features can not be read directly from the order code.

  • Page 178: Device Type

    Operating menu Levelflex FMP53 HART Device type Navigation  Diagnostics → Device information → Device type Description Shows the device type with which the measuring device is registered with the HART Communication Foundation. Additional information The device type is needed to allocate the suitable Device Description (DD) to the device.

  • Page 179: Measured Values" Submenu

    Levelflex FMP53 HART Operating menu 16.4.4 "Measured values" submenu Navigation  Diagnostics → Measured values Distance Navigation  Diagnostics → Measured values → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
  • Page 180 Operating menu Levelflex FMP53 HART Measured current 1 Navigation  Diagnostics → Measured values → Measured current 1 Prerequisite Only available for current output 1 Description Shows the current value of the current output which is currently measured. Terminal voltage 1 Navigation ...

  • Page 181: Data Logging" Submenu

    Levelflex FMP53 HART Operating menu 16.4.5 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign channel 1 to 4 Description Assign a process variable to logging channel.

  • Page 182: Logging Interval

    Operating menu Levelflex FMP53 HART Logging interval  Navigation  Diagnostics → Data logging → Logging interval  Diagnostics → Data logging → Logging interval Description Define the logging interval tlog for data logging. This value defines the time interval between the individual data points in the memory.

  • Page 183: Display Channel 1 To

    Levelflex FMP53 HART Operating menu "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM" .

  • Page 184: Simulation" Submenu

    Operating menu Levelflex FMP53 HART 16.4.6 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...

  • Page 185: Simulation

    Levelflex FMP53 HART Operating menu Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  186 Process variable value →  186 Current output 1 to 2 simulation →  186 Value current output 1 to 2 →...

  • Page 186: Assign Measurement Variable

    Operating menu Levelflex FMP53 HART Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign measurement variable Selection • Off • Level • Interface • Thickness upper layer •...

  • Page 187: Value Current Output 1 To 2

    Levelflex FMP53 HART Operating menu Factory setting Additional information An active simulation is indicated by a diagnostic message of the Function check (C) category. Value current output 1 to 2  Navigation  Expert → Diagnostics → Simulation → Value current output 1 to 2 Prerequisite Current output simulation (→...

  • Page 188: Device Alarm Simulation

    Operating menu Levelflex FMP53 HART Additional information The switch status assumes the value defined in this parameter. This helps to check correct operation of connected control units. Device alarm simulation  Navigation  Expert → Diagnostics → Simulation → Device alarm simulation Description Switch the device alarm on and off.

  • Page 189: Device Check" Submenu

    Levelflex FMP53 HART Operating menu 16.4.7 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start device check Description Start a device check. Selection • No • Yes Factory setting Additional information In the case of a lost echo a device check can not be performed.
  • Page 190 Operating menu Levelflex FMP53 HART Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done • Check not OK •...

  • Page 191: Heartbeat" Submenu

    Levelflex FMP53 HART Operating menu 16.4.8 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01872F Navigation  Diagnostics → Heartbeat...

  • Page 192: Index

    Index Levelflex FMP53 HART Index Decimal places menu (Parameter) ....164 Declaration of Conformity ..... 13 Access authorization to parameters Define access code .
  • Page 193 Levelflex FMP53 HART Index Envelope curve display ......67 Level unit (Parameter) ..... . . 130 Event history .
  • Page 194 Index Levelflex FMP53 HART Record map (Parameter) ....122, 124 Switch output (Submenu) ....154 Registered trademarks .
  • Page 196 *71385422* 71385422 www.addresses.endress.com...

Table of Contents
