Electrical connection
36
5. Connect the cable according to the terminal assignment.

6. If using shielded cables: Connect the cable shield to the ground terminal.
7.2.3

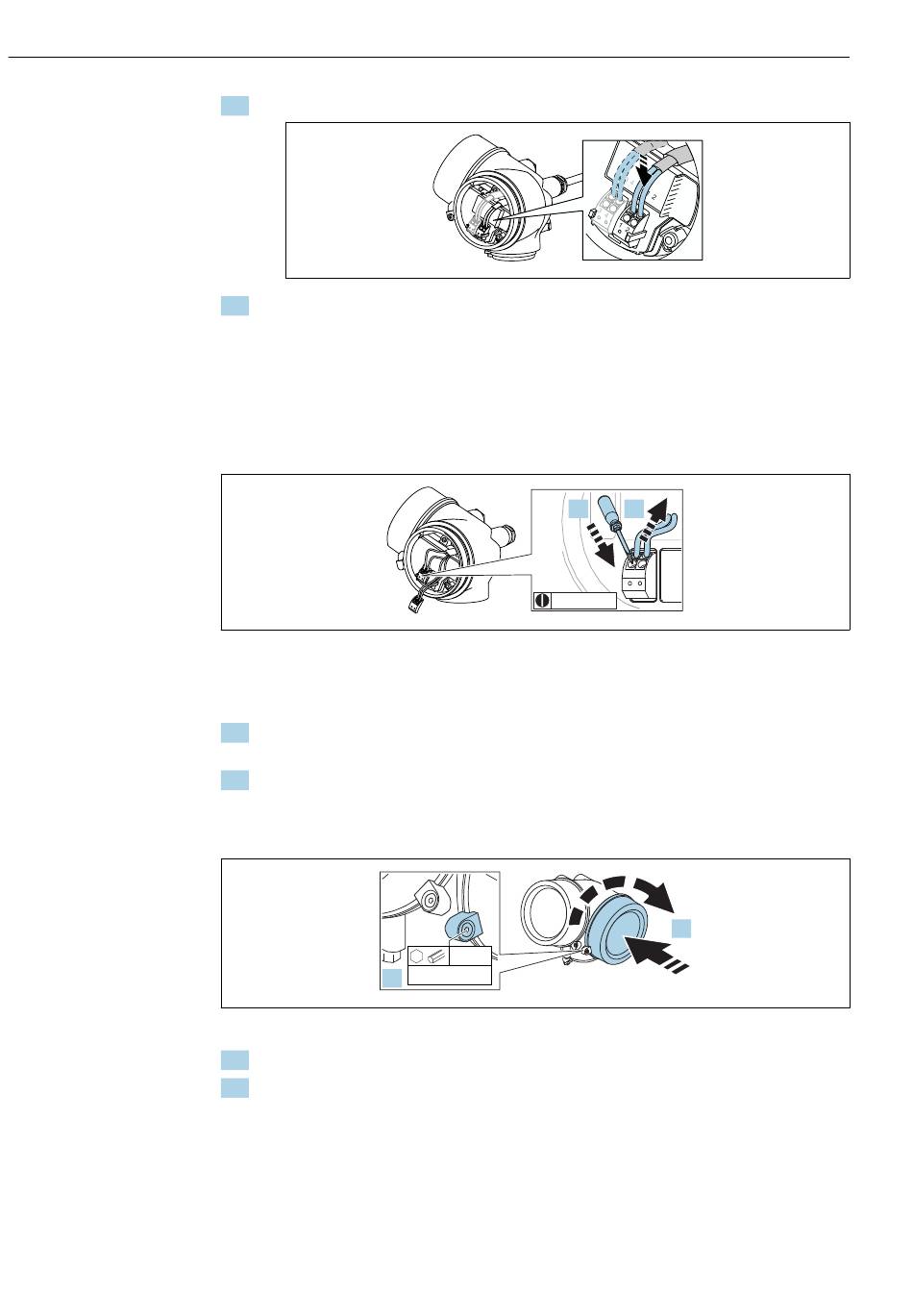

Plug-in spring-force terminals

The electrical connection of device versions without an integrated overvoltage protection is
via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can
be inserted directly into the terminal without using the lever, and create a contact
automatically.
 15 Engineering unit: mm (in)
To remove the cable from the terminal again:
1. Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two
terminal holes
2. Simultaneously pull the cable end out of the terminal.
7.2.4

Closing the cover of the connection compartment

2.
1. Screw down the cover of the connection compartment.
2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key
(3 mm), tighten the screw of the securing clamp on the connection compartment
cover with 2.5 Nm.
7.3

Post-connection check

 Is the device or cable undamaged (visual inspection)?
 Do the cables used comply with the requirements?
1.
≤ 3 (0.12)
3 mm
2,5 Nm
Levelflex FMP55 PROFIBUS PA
2.
1.
Endress+Hauser
A0034682
A0013661
A0021491
