Mounting Under Confined Conditions - Endress+Hauser Levelflex FMP55 Operating Instructions Manual

Mounting
18
6.1.2

Mounting under confined conditions

Mounting with remote probe
The device version with a remote probe is suitable for applications with restricted
mounting space. In this case, the electronics housing is mounted at a separate position
from the probe.
A
C
r = 100 (4)
min

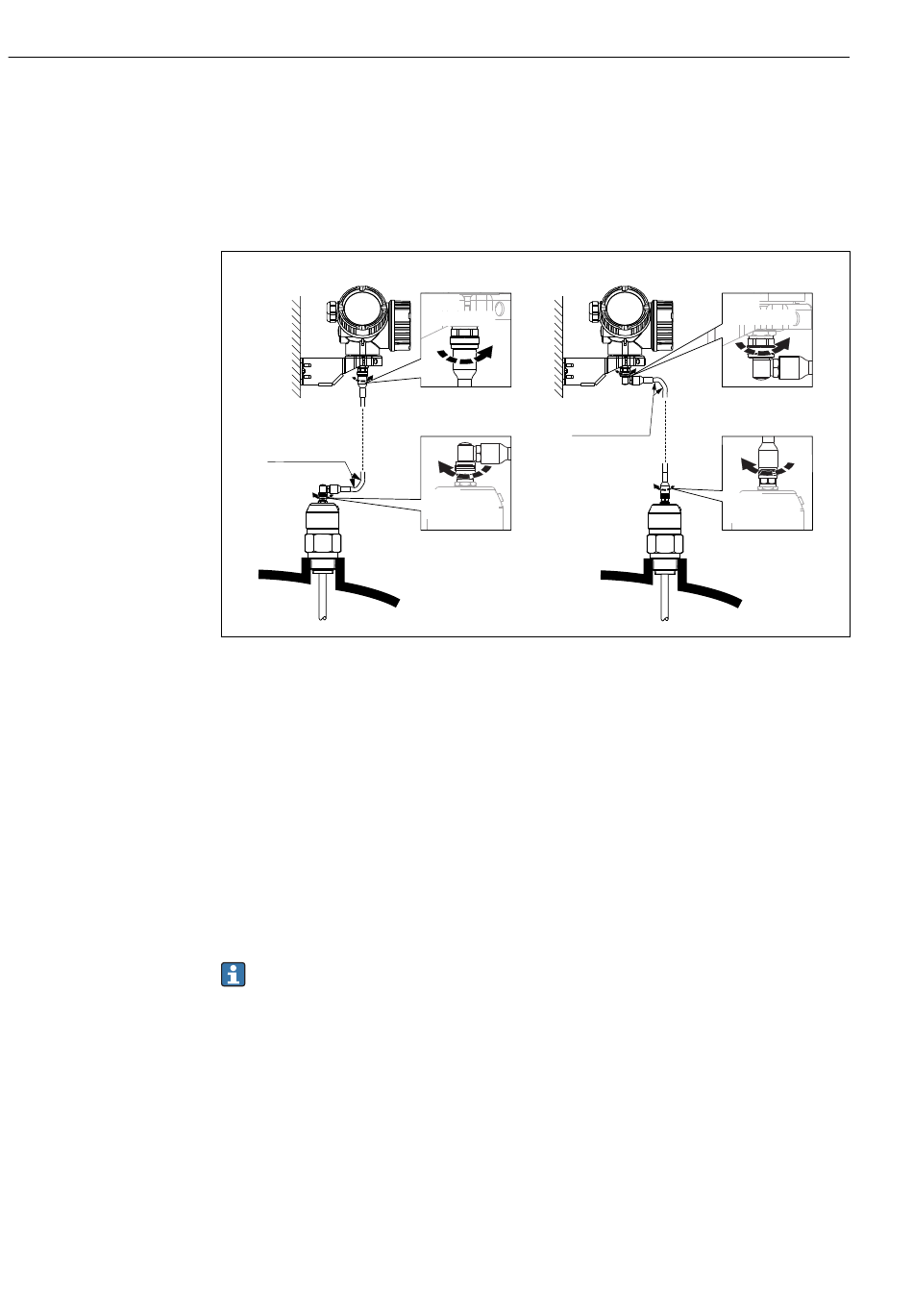

A Angled plug at the probe
B Angled plug at the electronics housing
C Length of the remote cable as ordered
• Product structure, feature 600 "Probe design":
Version MB "Sensor remote, 3m cable"
• The connecting cable is included in the delivery with these versions.
Minimum bending radius: 100 mm (4 inch)
• The mounting bracket for the electronics housing is included in the delivery with these
versions. Mounting options:
• Wall mounting
• Mounting on DN32 to DN50 (1-1/4 to 2 inch) post or pipe
• The connection cable has one straight plug and one plug angled at 90°. Depending on
the local conditions the angled plug can be connected at the probe or at the electronics
housing.
The probe, electronics and connection cable are mutually compatible and bear a
common serial number. Only components with the same serial number may be
connected to one another.
B
6 Nm
(4.42 lbf ft)
r = 100 (4)
min
6 Nm
(4.42 lbf ft)
Levelflex FMP55 PROFIBUS PA
6 Nm
(4.42 lbf ft)
C
6 Nm
(4.42 lbf ft)
Endress+Hauser
A0014794
