Vessel with thermal insulation
If process temperatures are high, the device must be included in normal vessel
insulation (1) in order to prevent the electronics heating up as a result of thermal
radiation or convection. The insulation may not go beyond the points labeled "MAX" in
the drawings.
2
mm (in)

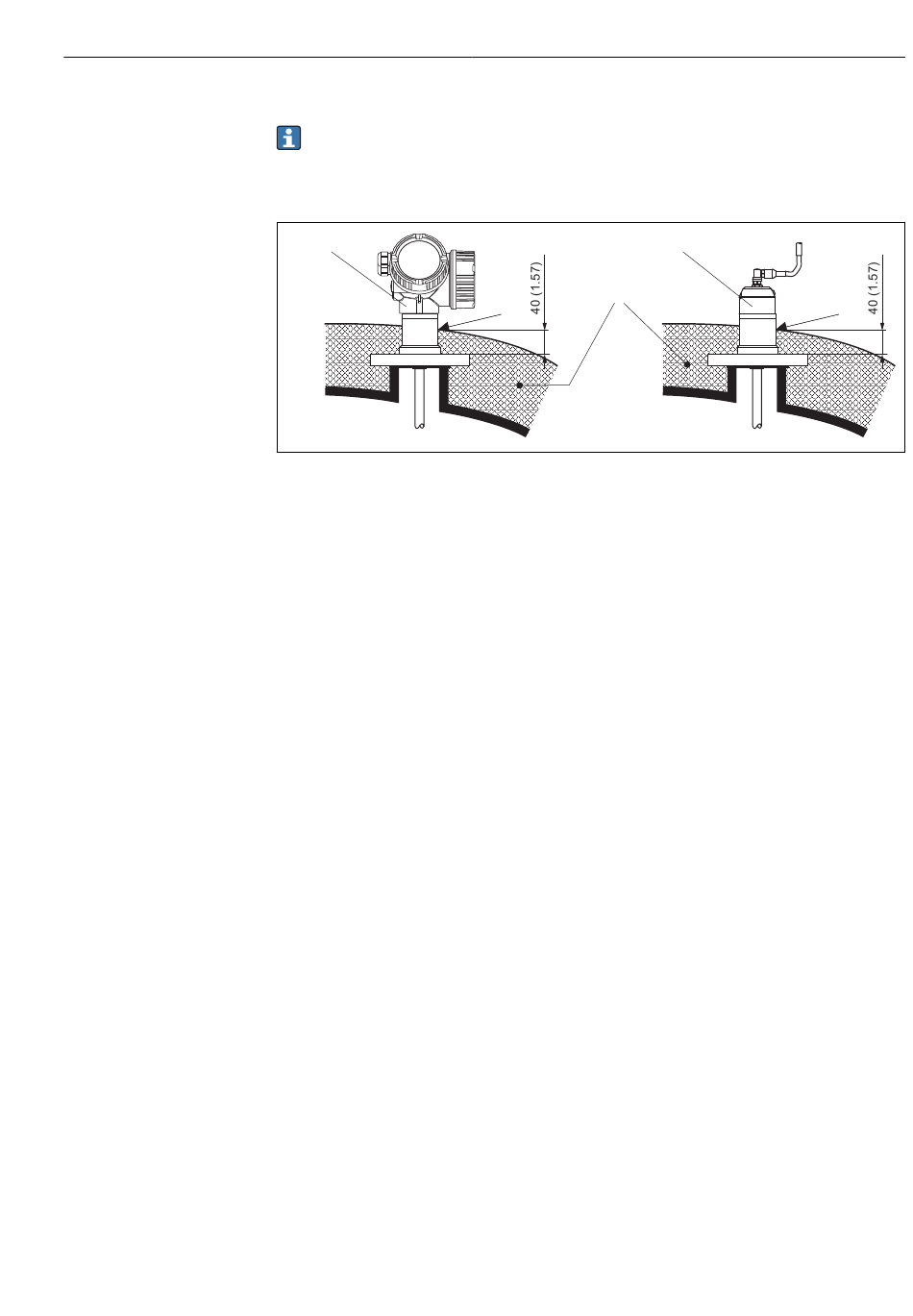

 5 Process connection with flange
1 Vessel insulation
2 Compact device
3 Sensor, remote
1
MAX
Mounting
3
MAX
A0014654
