5.9

TIG welding

5.9.1

Welding torch and workpiece line connection

7
Item Symbol Description
1
2
3
4
5
6
7
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by
turning to the right.
Only torches with special functions (additional control lead):
• Depending on the type of torch used, insert the torch control lead plug into either the 7-pole
connection socket (digital) or the 19-pole connection socket and lock in place.
099-005033-EW501
15.01.2010
6
0
Welding torch
Welding torch hose package
19-pole connection socket (analogue)
For connecting analogue remote controls
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Connection socket, "+" welding current
• TIG welding:
Welding current cable, polarity selection
Welding current to the central connector/torch, enables polarity selection.
• TIG: Connection socket for "-" welding current
Workpiece clamp
3
4
5

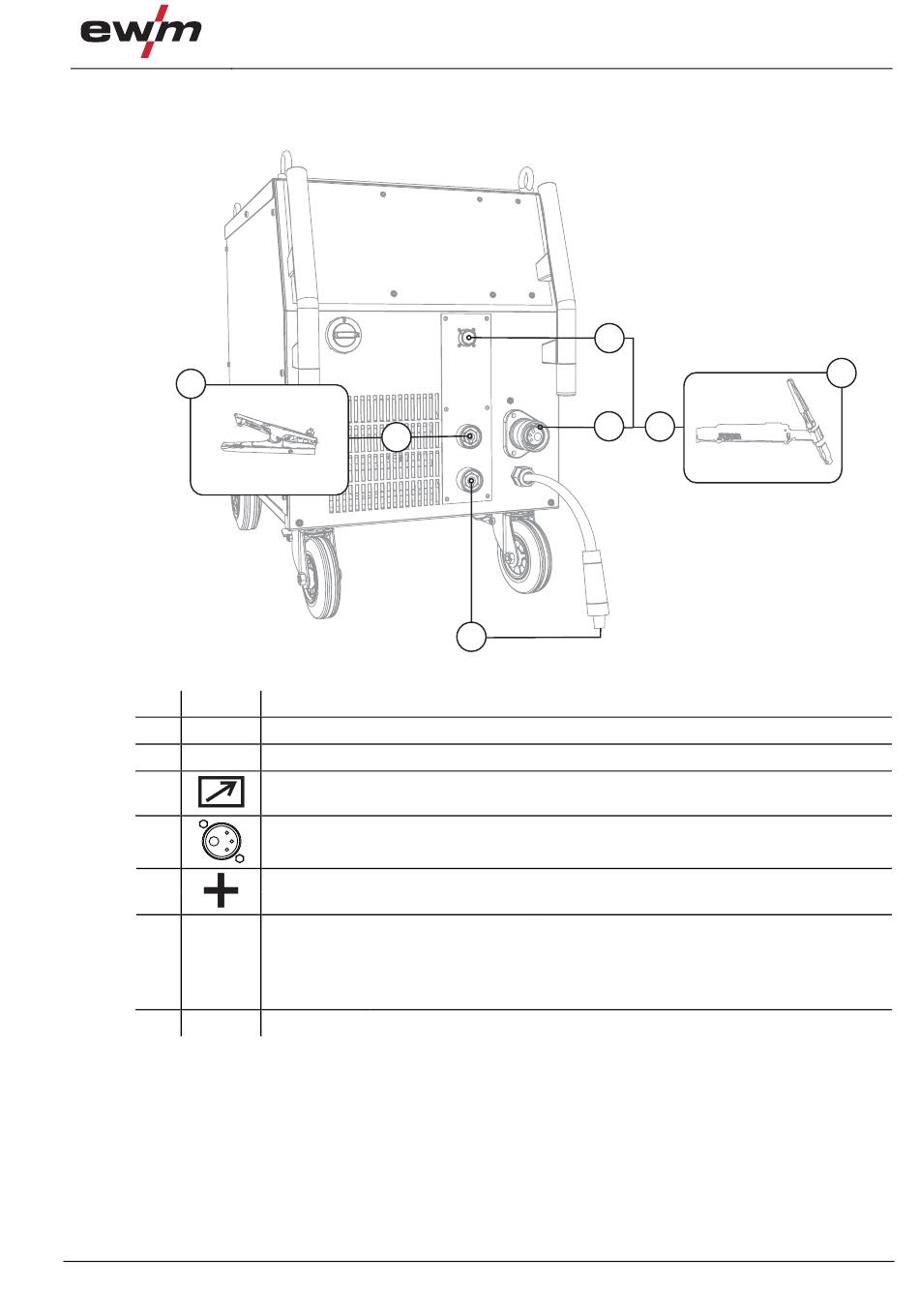

Figure 5-38
Workpiece connection
Design and function
TIG welding
2
1
