Design and function
MIG/MAG welding

5.8.18.2 Reset to factory settings

All customised welding parameters that are stored will be replaced by the factory
settings.
Operating
element
0
1
VOLT
PROG
0
1
VOLT
PROG
0
0
1
1

5.8.18.3 The special parameters in detail

Ramp time for wire inching (P1)
The wire inching starts with a speed 1.0 m/min for 2 secs. It is subsequently increased to a ramp function
to 6.0 m/min. The ramp time can be set between two ranges.
Program "0", releasing the program block (P2)
In previous versions of the M3.70/M3.71 control system the block is dependent on the key switch
setting. With this version a block will only be effective when the locked status is active.
The program P0 (manual setting) is blocked. Only operation with P1-P15 is possible, irrespective of the
key switch position.
Program limit (P4)
Program selection can be limited with the special parameter P4.
The setting is adopted for all JOBs.
Program selection depends on the position of the "welding torch function" changeover switch (see
"Machine description"). Programs can only be switched when the changeover switch is in the
"program" position.
Programs can be switched by means of a connected remote control or special welding torch.
If a special welding torch or a remote control is not connected, it is only possible to switch programs by
means of the "arc length correction/select welding program" rotary dial (see "Machine description").
Special cycle in the operating modes special latched and non-latched (P5)
With the special sequence activated, the start of the welding process changes as follows:
Sequence for special non-latched mode/special latched mode:
Start program "P
Main program "P
Sequence for special non-latched mode/special latched mode with custom sequence activated:
Start program "P
Reduced main program "P
Main program "P
Enabling special JOBs SP1 to SP3 (P6)
The JOB changeover is blocked if the key switch is in the "0" position.
This block can be cancelled for the special JOBs (SP1 - SP3).
62

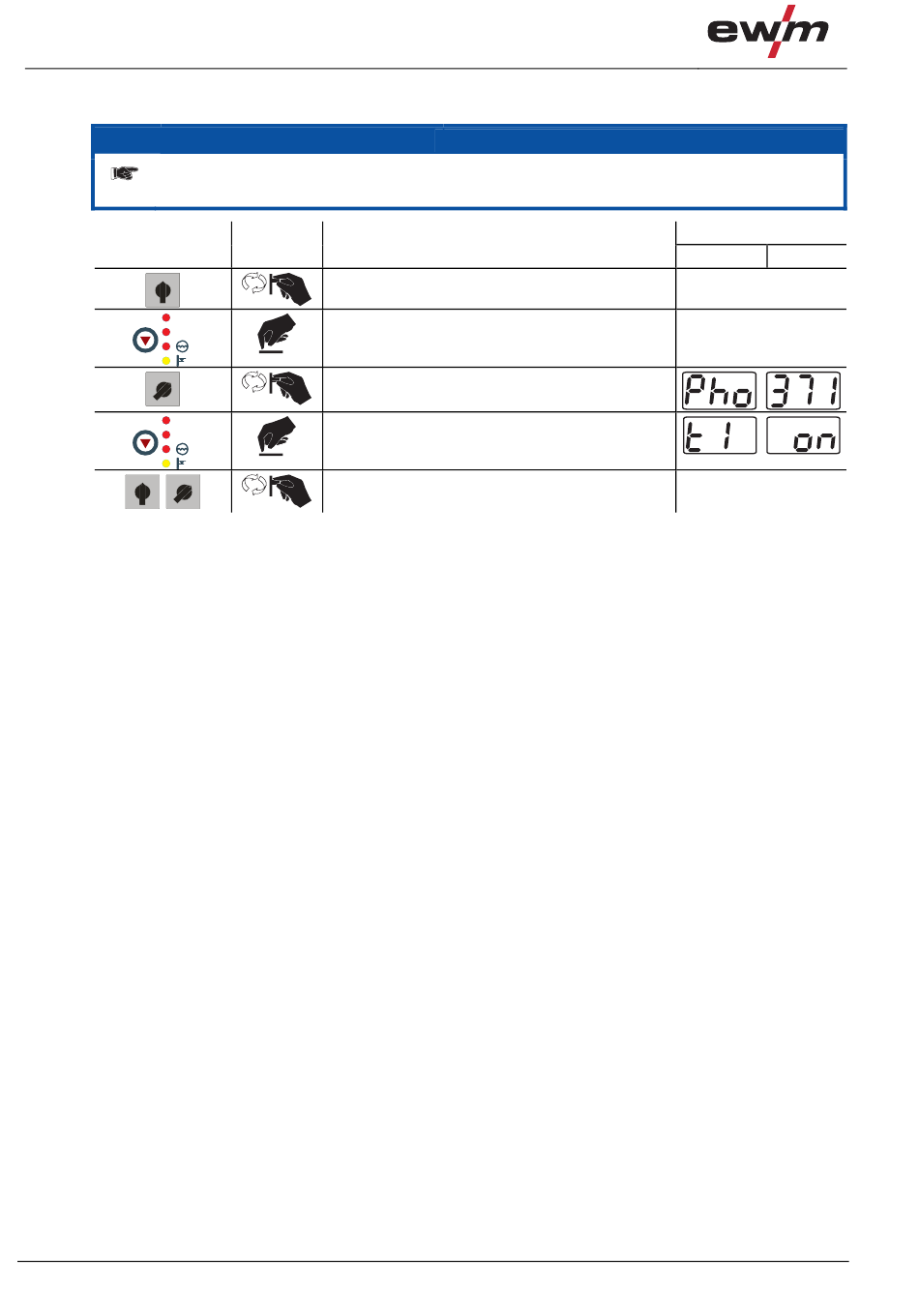

Action
Result
Switch off welding machine
Keep the button pressed
Switch on welding machine
Release the button,
wait about 3 seconds
Switch off welding machine and restart in order
to put the changes into effect
"
START
"
A
"
START
"
B
"
A
NOTE
Displays
Left
Right
099-005033-EW501
15.01.2010
