Design and function
MIG/MAG welding
5.8.1.2

MIG/MAG cored wire welding

7
Item Symbol Description
1
2
3
4
5
6
7
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the plug on the workpiece lead into the "+" welding current connection socket and lock.
Where applicable:
Only MIG/MAG torches with special functions (additional control lead):
• Insert the torch control lead plug into the 19-pole connection socket and lock in place.
32
6
0
Welding torch
Welding torch hose package
19-pole connection socket (analogue)
For connecting analogue remote controls
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Welding current cable, polarity selection
Welding current to central connection/torch. Permits polarity selection for MIG/MAG
welding.
• Cored wire welding:
Connection socket, "+" welding current
• MIG/MAG cored wire welding:
Workpiece clamp
3
4
5

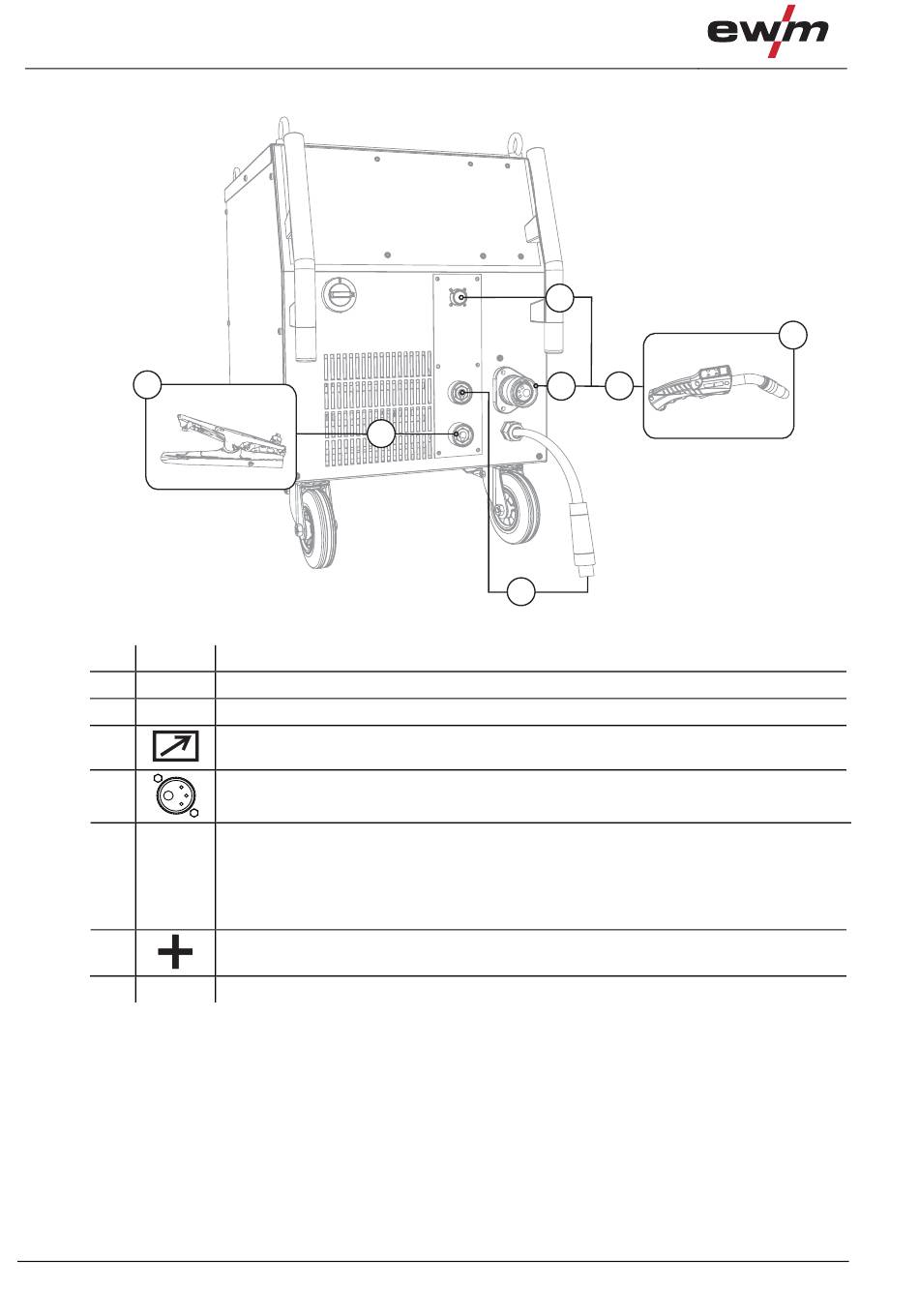

Figure 5-4
Connection for "-" welding current connection
socket
Workpiece connection
2
