Spool Brake Setting; Inserting The Wire Spool - EWM Taurus 301 KGE Operating Instructions Manual

Design and function
MIG/MAG welding
5.8.3

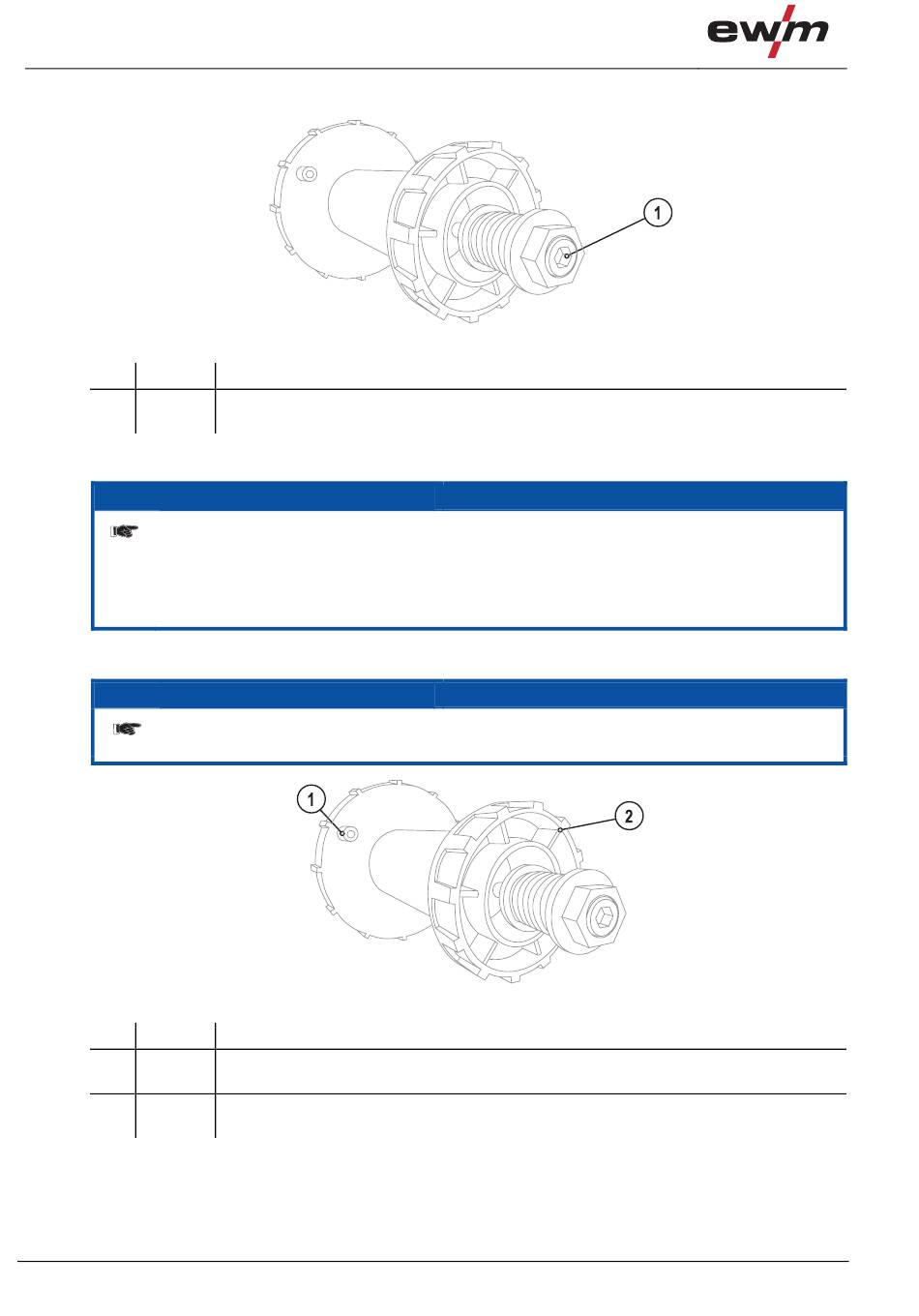

Spool brake setting

Item Symbol Description
1
• Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
Do not jam the wire spool!
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!
The fixing of the pin reel must be checked if the hexagonal socket screw is released.
See chapter "Fixing of the pin reel (adjustment of the pre-tensioning)"
5.8.4

Inserting the wire spool

Standard D300 pin reels can be used. Adapters (see accessories) are required when
using standardised basket coils (DIN 8559).
Item Symbol Description
1
2
• Loosen knurled nut from spool holder.
• Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
• Fasten wire spool using knurled nut.
34
0
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool
Figure 5-6
NOTE
NOTE
Figure 5-7
099-005033-EW501
15.01.2010
