Design and function
MIG/MAG welding

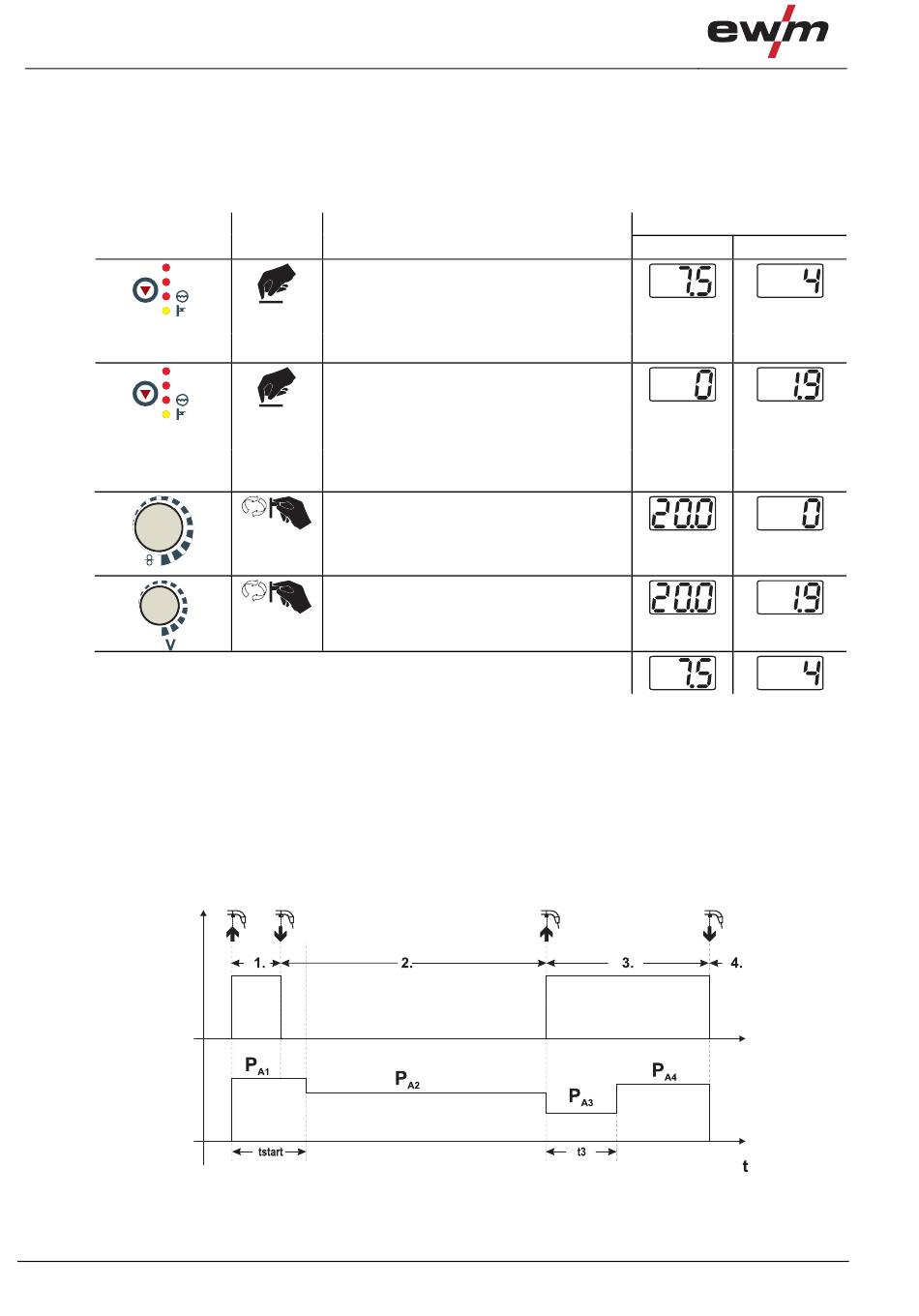

Setting the correction range:
• Switch on the "Correction operation" special parameter (P7=1) and save the setting.
(See chapter entitled "Selecting, changing and saving parameters".)
• Key switch to position "1".
• Set correction range according to the following table:
Operating
element
VOLT
PROG
VOLT
PROG
m/min
After approx. 5 s without further user intervention, the set values are
adopted and the display switches back to the program display,
• Key switch back to position "0"!
Switching programs with the standard torch trigger (P8)
Special latched (latched absolute program sequence)
• Cycle 1: absolute program 1 is run
• Cycle 2: absolute program 2 is run after completion of "tstart".
• Cycle 3: absolute program 3 is run until the "t3" time has elapsed. The program then switches
automatically to absolute program 4.
Accessory components such as remote controls or special torches may not be connected!
Program switching at the wire feed unit control is disabled.
64
Action Result
Press button until "PROG" LED comes
on.
x Left: Wire feed speed
n
Right: Program number
Press button and hold down for approx.
4 s
4 s Left: Current limit value of the wire
feed speed correction
Right: Current limit value of the
voltage correction
Set limit value for the wire feed speed
correction
Set limit value for voltage correction
Figure 5-35
Display (examples)
Left Right
