5.8.10 MIG/MAG welding data display

To the left and right of the control displays are the "Parameter selection" buttons (
select welding parameters to be displayed.
Each press of the button advances the display to the next parameter (LEDs next to the button indicate the
selection). After the last parameter is reached, the system starts again from the beginning.
AMP
HOLD
The display shows:
• Nominal values (before welding)
• Actual values (during welding)
• Hold values (after welding)
Parameter
Welding current
Material thickness
Wire speed
Welding voltage
When the settings are changed (e.g. wire speed), the system switches over immediately to the
setpoint setting.
099-005033-EW501
15.01.2010
Taurus

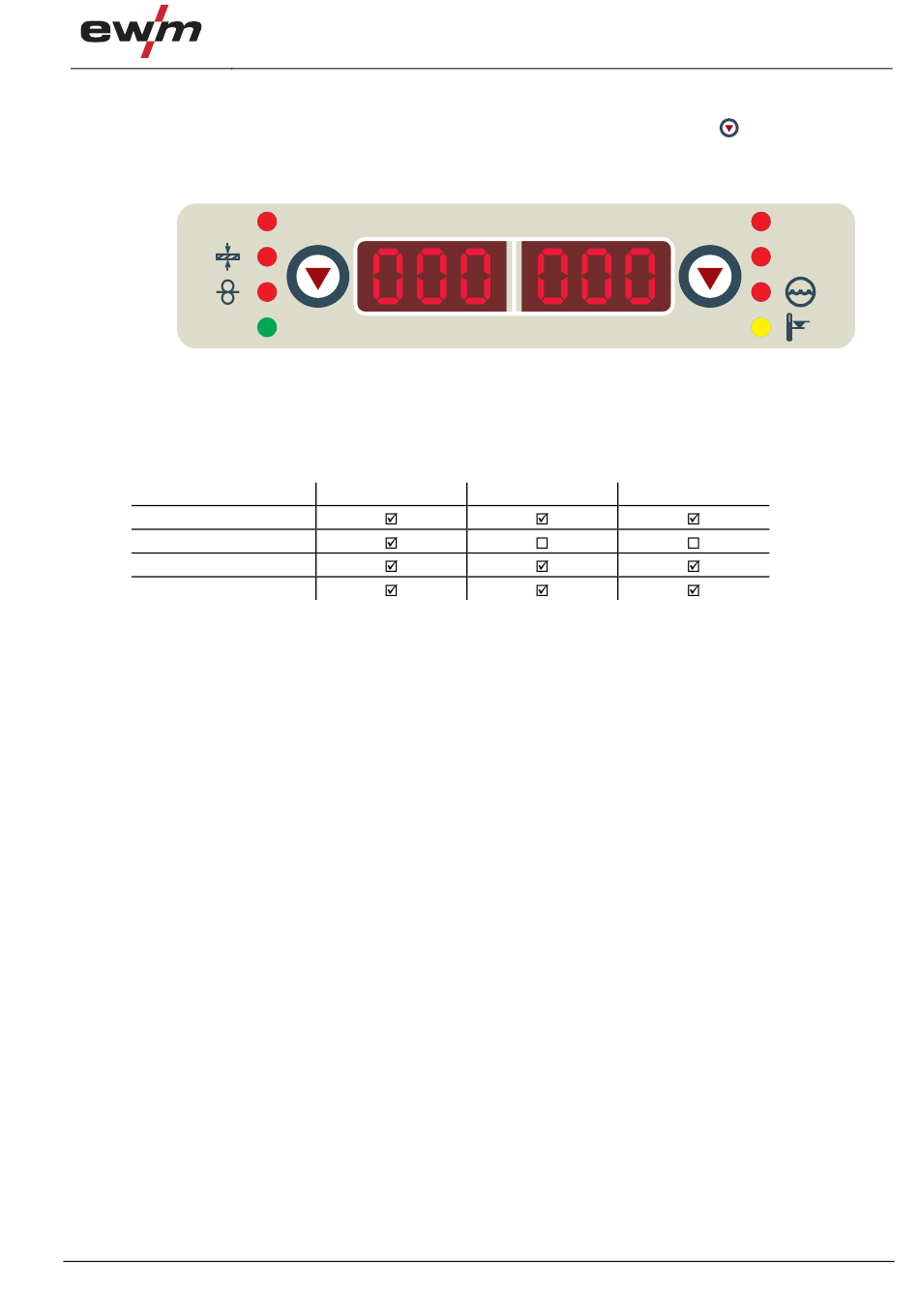

Figure 5-14
