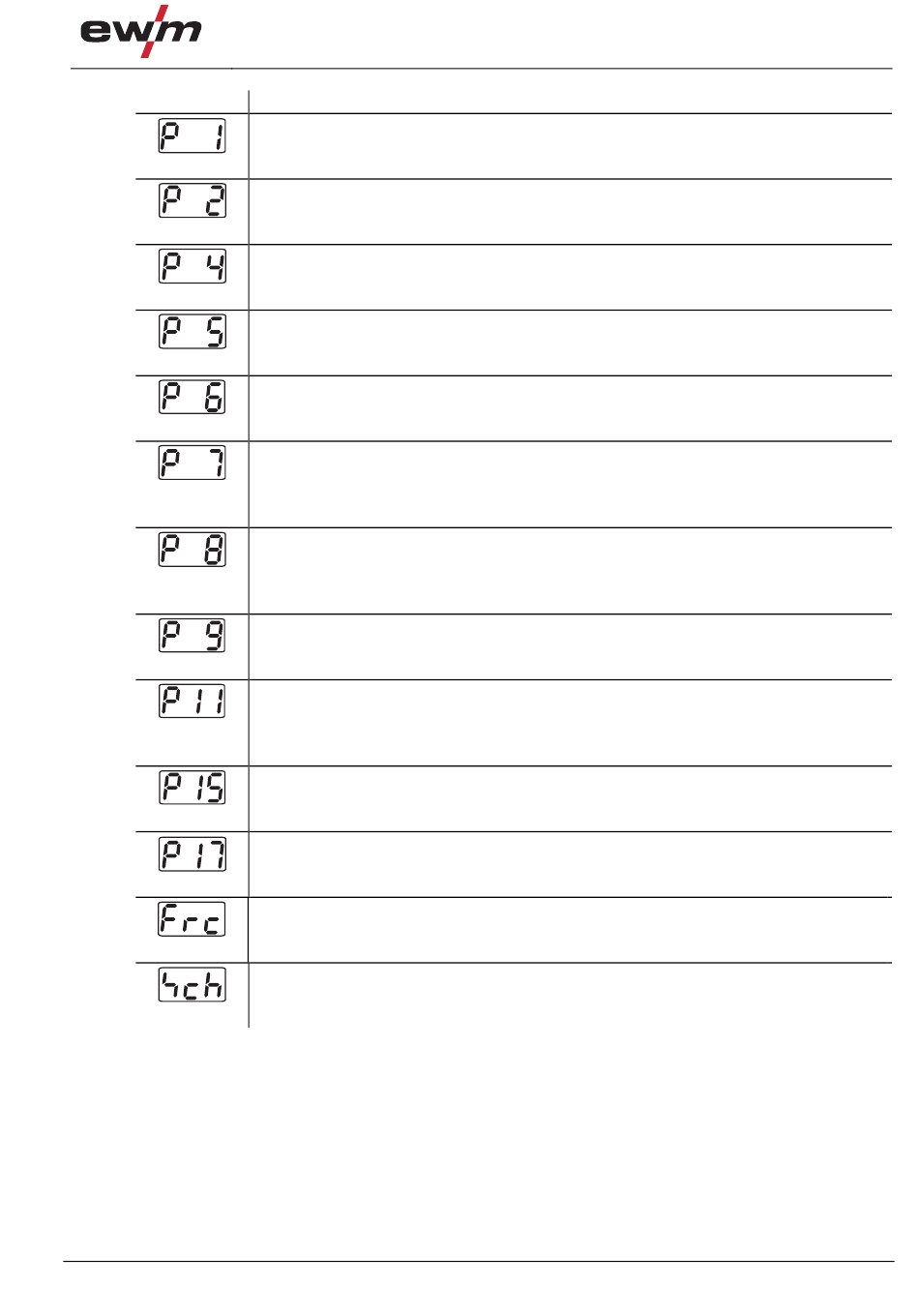

Display
099-005033-EW501
15.01.2010
Setting/selection
Ramp time for wire inching
0 = normal inching (10s ramp time)
1 = fast inching (3s ramp time) (Ex works)
Block program "0"
0 = P0 enabled (Ex works)
1 = P0 blocked
Program limitation
Programs 1 to max. 15
Ex works: 15
Special cycle in the special latched and non-latched operating modes
0 = normal (previous) non-latched/latched (Ex works)
1 = WF3 cycle for non-latched/latched
Enable special jobs SP1 to SP3
0 = no enabling (Ex works)
1 = enabling of Sp1-3
Correction operation, threshold value setting
0 = correction operation switched off (Ex works)
1 = correction operation on
"Main program (PA)" flashing
Program changeover with standard torch
0 = no program changeover (Ex works)
1 = special latched
2 = specific latched special (n cycle active)
Lat. and sp. lat. tapping start
0 = no latched tapping start (Ex works)
1 = latched tapping start possible
Special latched tapping time
0 = tapping function switched off
1 = 300ms (Ex works)
2 = 600ms
HOLD function
0 = HOLD values are not displayed
1 = HOLD values are displayed (Ex works)
Program selection with standard torch trigger
0 = no program selection (Ex works)
1 = program selection possible
Alternative remote control coding (FRC)
0 = no alternative remote control coding (works setting)
1-15 = alternative remote control coding
Software key switch
0 = system complete
1 = system not complete (Ex works)
Design and function
MIG/MAG welding
