6.7. INTERFACES

6.7.1. INTERFACE STATUS

Select the interface to derive the audio clock source. In most applications, only one
interface like MADI or DANTE is used to supply audio data AND the audio clock.
In the SYNC SELECT column, the preferred interface is selected. If the interface is not
locked or supplies an invalid or not supported audio rate, the next interface with valid
settings is automatically selected.
The auto sync select priority is as ordered in the list from MADI FIBRE down to AES3
2(ASRC)
GREEN colour indicates the currently selected sync interface.
AES3 receivers can also be selected as clock sources. Despite the fact that

the clocks are synchronous, the audio data are routed through the sample
rate converter.

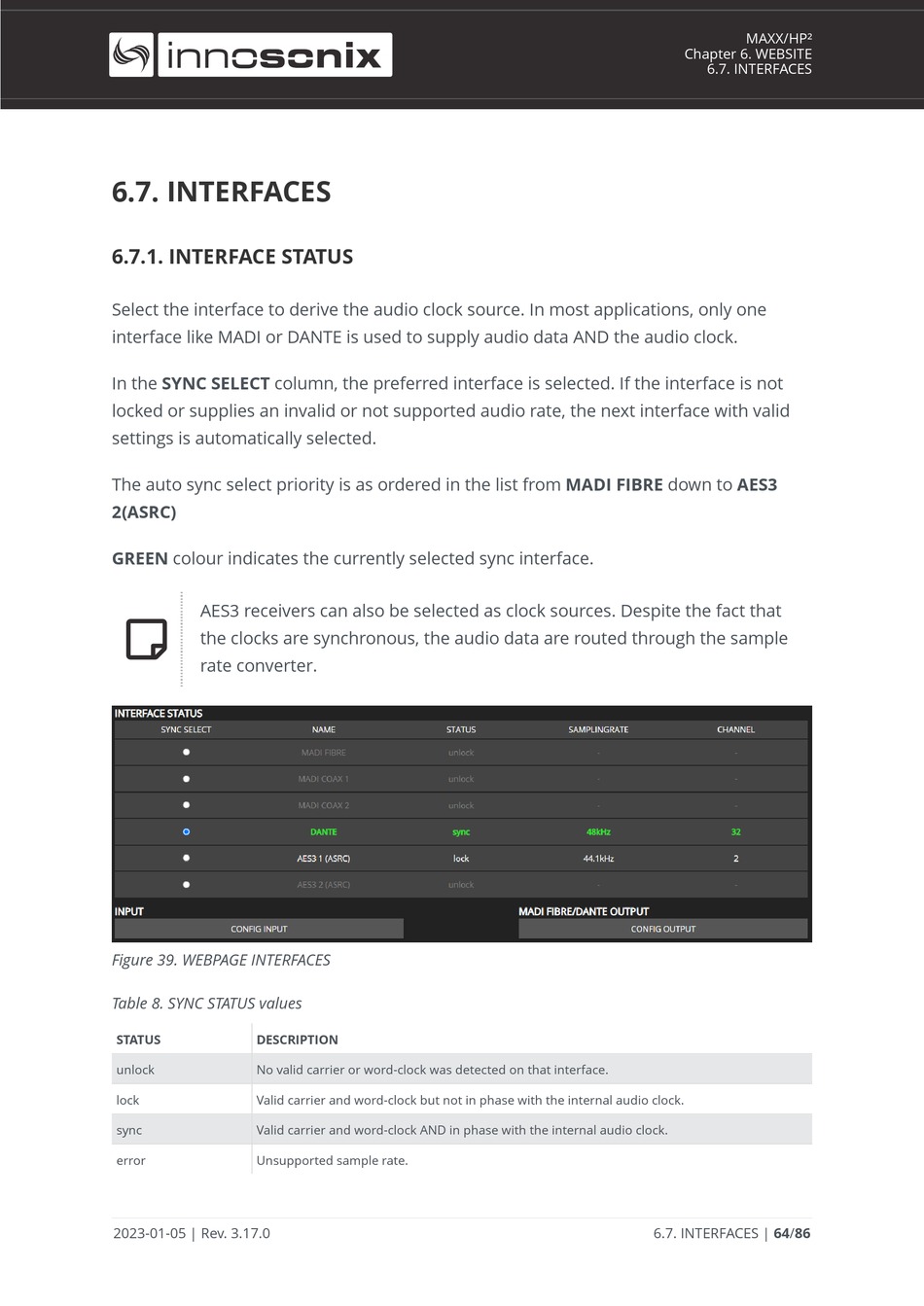

Figure 39. WEBPAGE INTERFACES
Table 8. SYNC STATUS values
STATUS DESCRIPTION
unlock No valid carrier or word-clock was detected on that interface.
lock Valid carrier and word-clock but not in phase with the internal audio clock.
sync Valid carrier and word-clock AND in phase with the internal audio clock.
error Unsupported sample rate.
