Chapter 5. Frontpannel
5.1. DISPLAY / BUTTONS

5.1.2. OVERVIEW

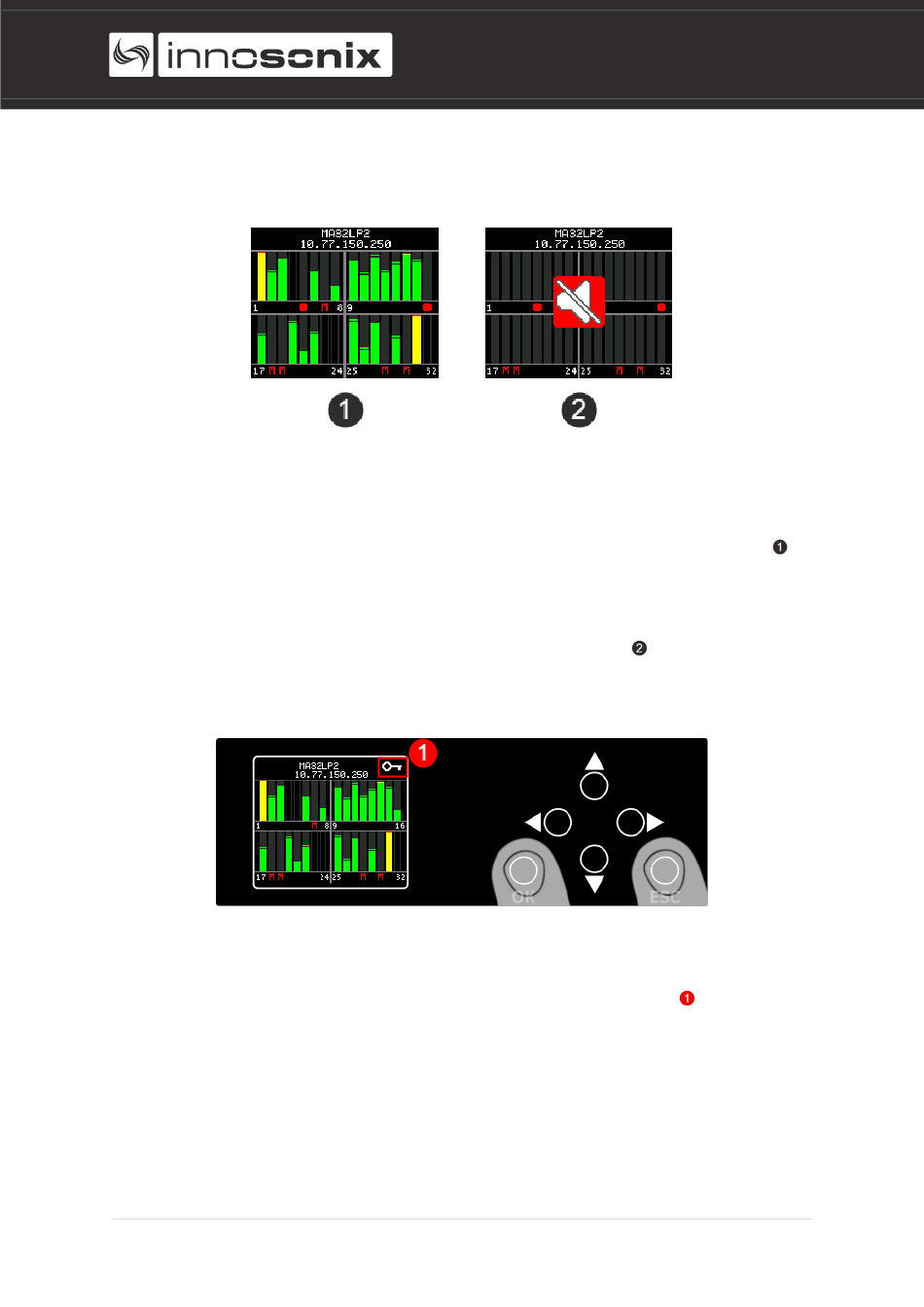

Figure 15. OVERVIEW EXAMPLES
The Overview Page appears at startup, and after a 30 seconds timeout, if another page
is selected and no user input occurs. Every channel has its own Levelmeter from
-60dBFS to 0dBFS with PEAK as a bar and HOLD as a horizontal line. The Overview
shows CHANNEL MUTE State (CH 7, 18, 19, 18, 30), if the amplifier channel is disabled
(CH 4, 23, 24, 32) or the amp channel has an error (CH 5, 16).
If Master Mute is enabled, the crossed out loudspeaker appears .

5.1.3. DISPLAY DEVICE LOCK

Figure 16. DEVICE LOCK
To enable and disable Display Device Lock, hold OK and ESC for about 2 seconds. The
Device Lock prevents changing the IP settings on display. The small Key shows
activated Device Lock on every Page.
