6.6.11. PEQ
There are 32 EQ slots that can be set with several EQ types. Some EQ types
need more than one EQ slot. 18dB/24dB Low/High passes require two,
while 48dB Low/High require four slots.
When values are changed but not set to the device, the EQ is in preview
mode which is indicated by PREVIEW in the HEADLINE, and the PEQ plot
only shows the theoretical EQ curve. The current enabled EQs are plotted
in the output curve.

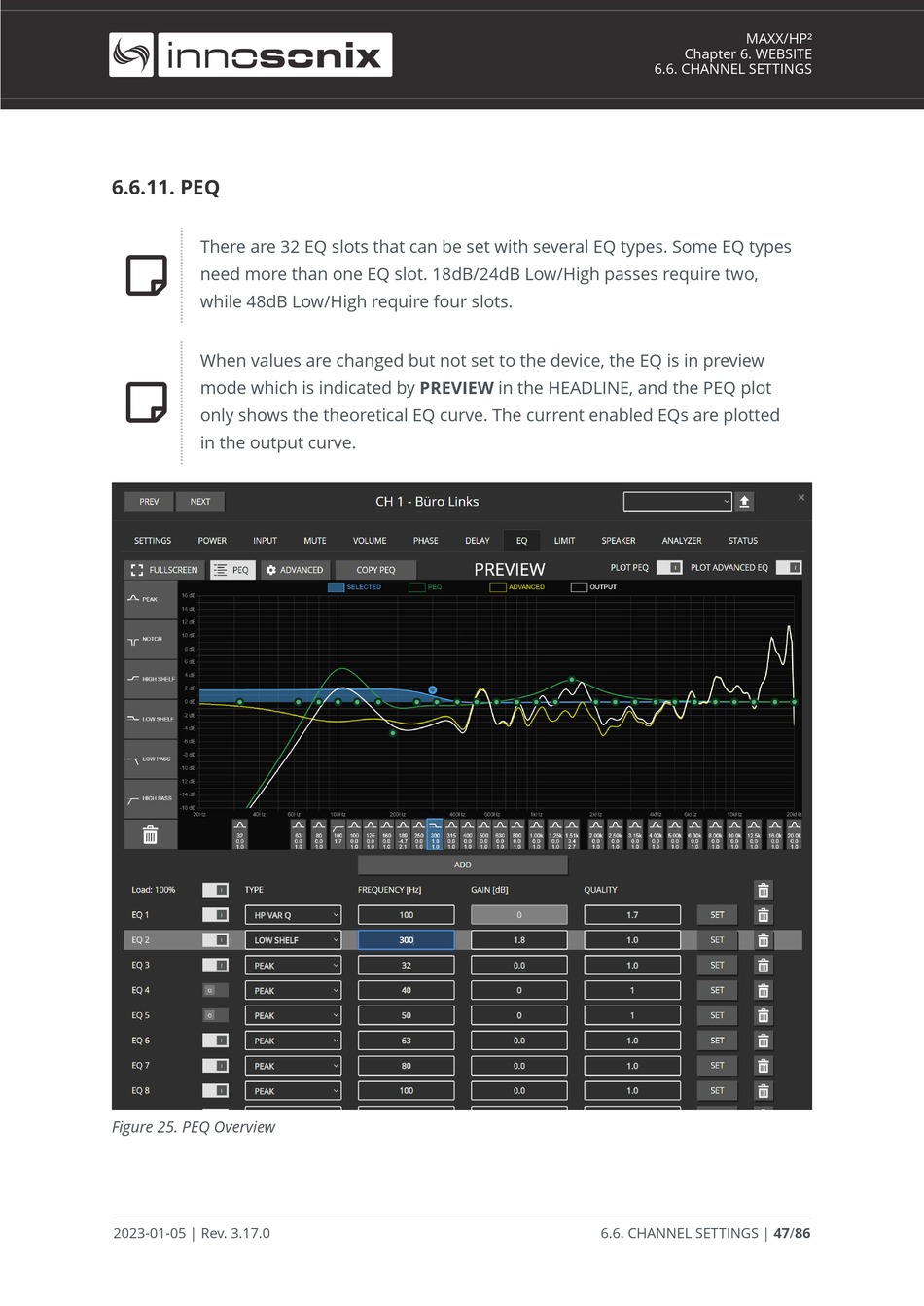

Figure 25. PEQ Overview
2023-01-05 | Rev. 3.17.0
MAXX/HP²
Chapter 6. WEBSITE
6.6. CHANNEL SETTINGS
6.6. CHANNEL SETTINGS | 47/86
