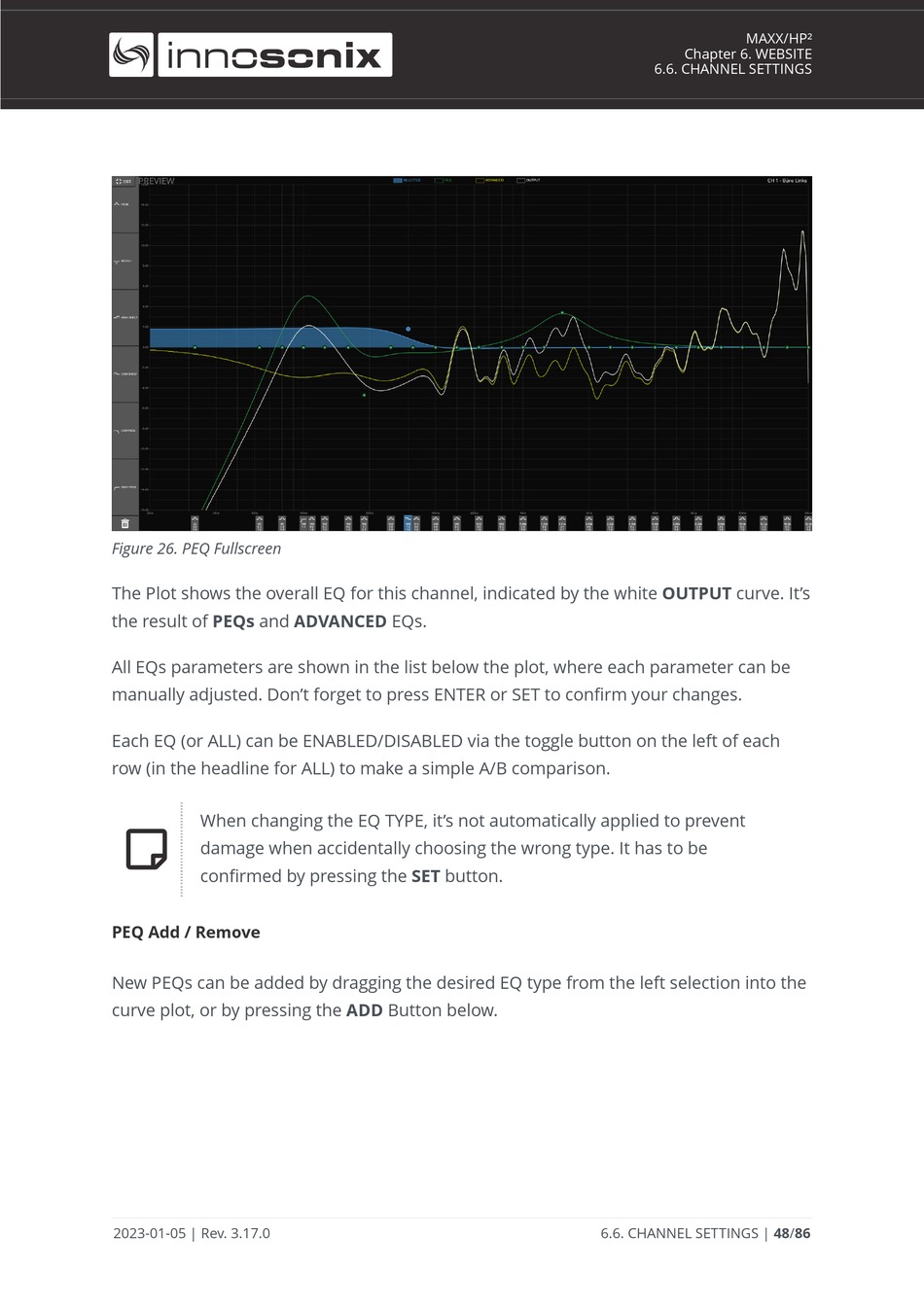

Figure 26. PEQ Fullscreen
The Plot shows the overall EQ for this channel, indicated by the white OUTPUT curve. It's
the result of PEQs and ADVANCED EQs.
All EQs parameters are shown in the list below the plot, where each parameter can be
manually adjusted. Don't forget to press ENTER or SET to confirm your changes.
Each EQ (or ALL) can be ENABLED/DISABLED via the toggle button on the left of each
row (in the headline for ALL) to make a simple A/B comparison.
When changing the EQ TYPE, it's not automatically applied to prevent

damage when accidentally choosing the wrong type. It has to be
confirmed by pressing the SET button.

PEQ Add / Remove

New PEQs can be added by dragging the desired EQ type from the left selection into the
curve plot, or by pressing the ADD Button below.
