On the DETAIL view, the output of the two complexes FFTs can be seen, which are just
for information.
The spectrum plots are not intended as a reference for the audio

performance of the actual output stage, which is much better than the
simple measurements ADCs used to collect the data for the FFTs.

MEASUREMENT

To perform a reference sweep, the MEASUREMENT tab can be used. Multiple channels
can be started simultaneously with different levels, depending on the connected
speaker impedance it may require some gain adjustments to measure the full
impedance spectrum.
In the reference mode, all channel settings are temporarily bypassed,

which means a full frequency sweep with the configured GAIN is
performed.

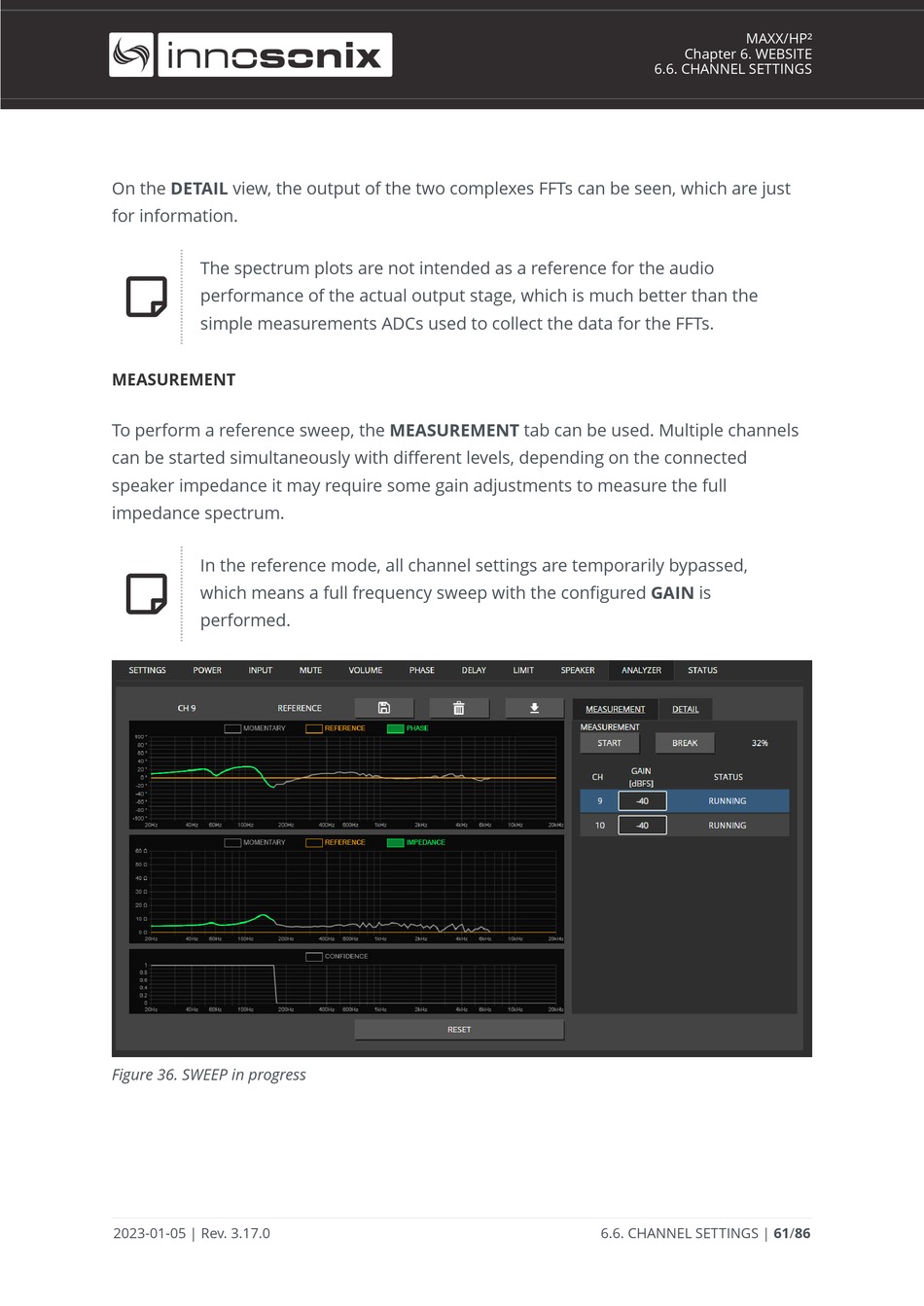

Figure 36. SWEEP in progress
