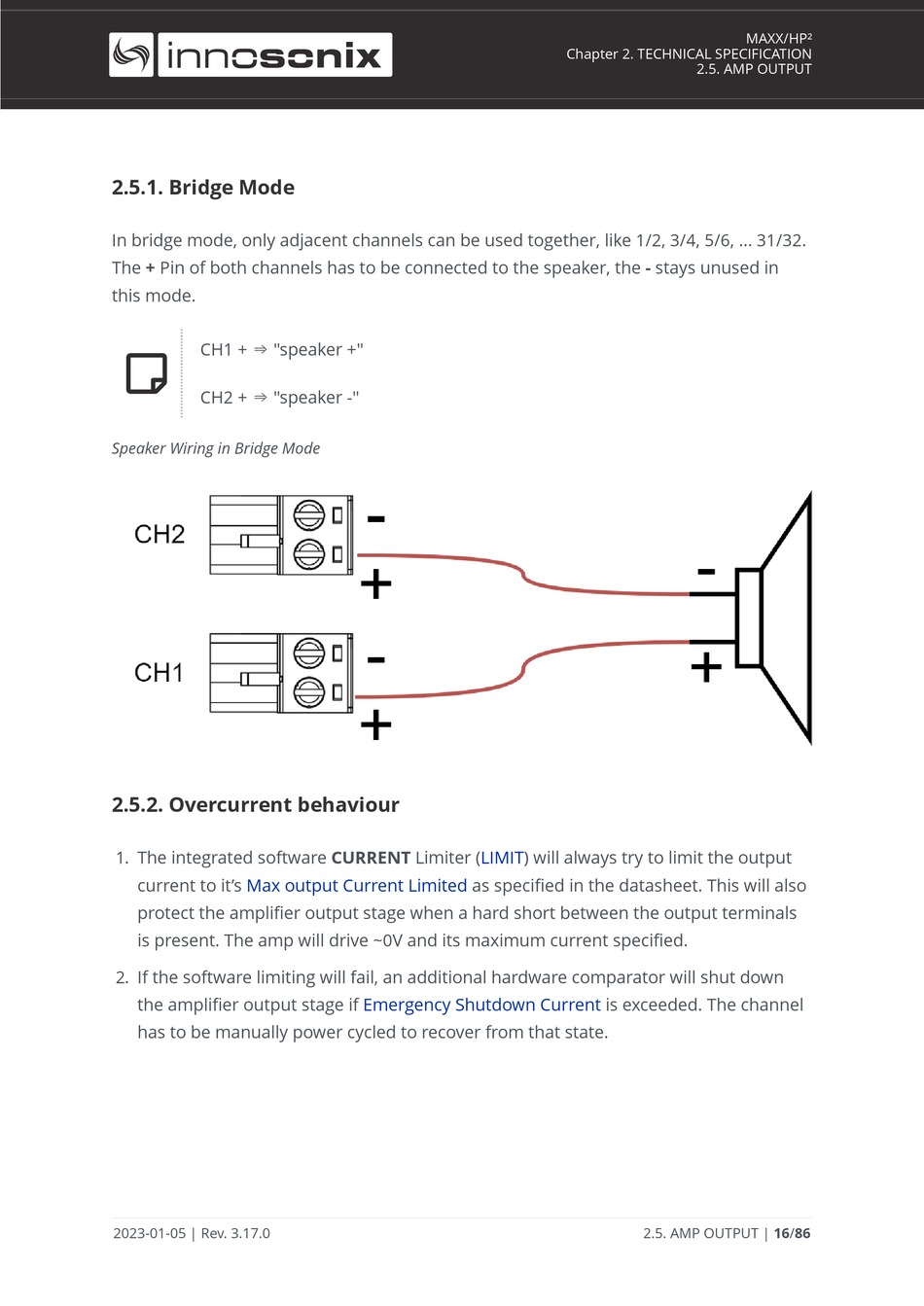

2.5.1. Bridge Mode

In bridge mode, only adjacent channels can be used together, like 1/2, 3/4, 5/6, ... 31/32.
The + Pin of both channels has to be connected to the speaker, the - stays unused in
this mode.
CH1 + ⇒ "speaker +"

CH2 + ⇒ "speaker -"
Speaker Wiring in Bridge Mode
2.5.2. Overcurrent behaviour
1. The integrated software CURRENT Limiter (LIMIT) will always try to limit the output
current to it's Max output Current Limited
protect the amplifier output stage when a hard short between the output terminals
is present. The amp will drive ~0V and its maximum current specified.
2. If the software limiting will fail, an additional hardware comparator will shut down
the amplifier output stage if
has to be manually power cycled to recover from that state.
