Technical Product Manual
VDO modulcockpit II
5. Testing Instructions
5.6 2Unit Instrument Module
(KL + KL) Warning Lights + Warning Lights
Preselected instrumentation see chapter 4.5 and 4.6
Test accessories:
1x power supply
1x test cable No. 4 (8 pins) *
1x resistor decade
List: technical data (chapter 5.9)
* contained in test cables kit X12-019-100-100
Pin assignment:
Connector A
PIN 1 Ground pos. 3
2 Plus illumination pos. 3
3 Ground pos. 1
4 Plus illumination pos. 1
5 Ground pos. 2
6 Plus illumination pos. 2
7 Ground pos. 4
8 Plus illumination pos. 4
Connector B
PIN 1 Ground pos. 7
2 Plus illumination pos. 7
3 Ground pos. 5
4 Plus illumination pos. 5
5 Ground pos. 6
6 Plus illumination pos. 6
7 Ground pos. 8
8 Plus illumination pos. 8
Test method description:
Test of warning lights
Connect the cluster instrument with test cable No. 4 per test circuit diagram to connector A to test the first four
warning lights. After the test connect cable to connector B to test the remaining four warning lights.

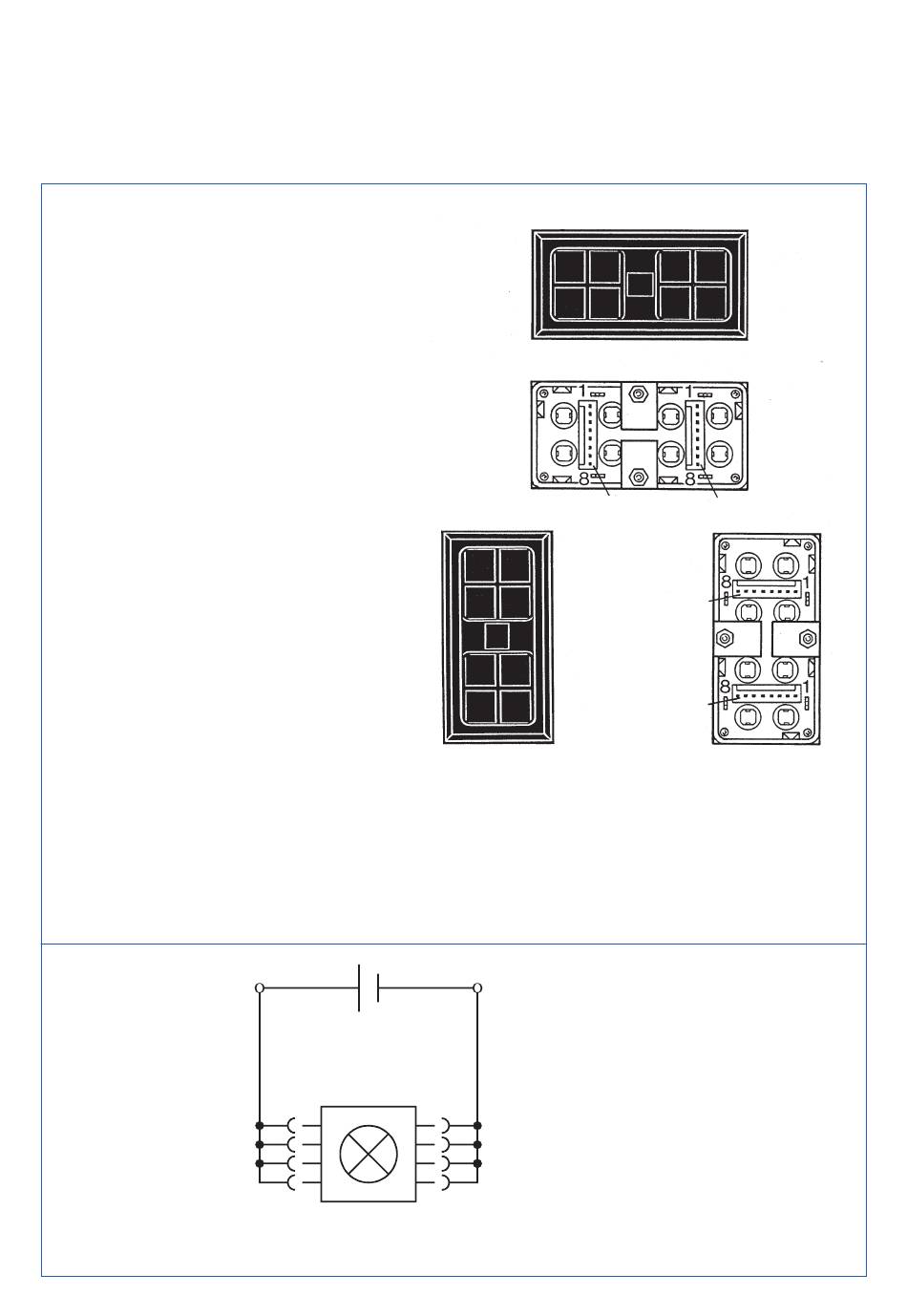

Test circuit diagram:
TU00-0740-0000002
Pos. 1
Pos. 3
Pos. 5
Pos. 7
PIN 2, 4, 6, 8 PIN 1, 3, 5, 7
Pins refer to connector A and B.
Pin's beziehen sich auf die Stiftleiste A und B!
Pos. 2 Pos. 4
Pos. 1 Pos. 3
Connector A
Pos. 2
Pos. 4
Pos. 6
Pos. 8
0904
113-000-980-. . .
Pos. 6 Pos. 8
Pos. 5 Pos. 7
Connector B
Connector A
Connector B
