Technical Product Manual
VDO modulcockpit II
5. Testing Instructions
5.2 2Unit Instrument Module
(2x Ke) 2x Single Instrument Module
vertical
Preselected instrumentation
see chapter 4.3 and 4.7
Test accessories:
1x power supply
1x test cable No. 2 (5 pins) *
1x measuring cable *
1x resistor decade
List: technical data (chapter 5.9)
* contained in test cables kit X12-019-100-100
Pin assignment:
PIN 1 Plus illumination
2 Single instrument module sensor pos. I
3 Ground
4 Single instrument module sensor pos. II
5 + 12 V (for 12 V instrument)
+ 24 V (for 24 V instrument)

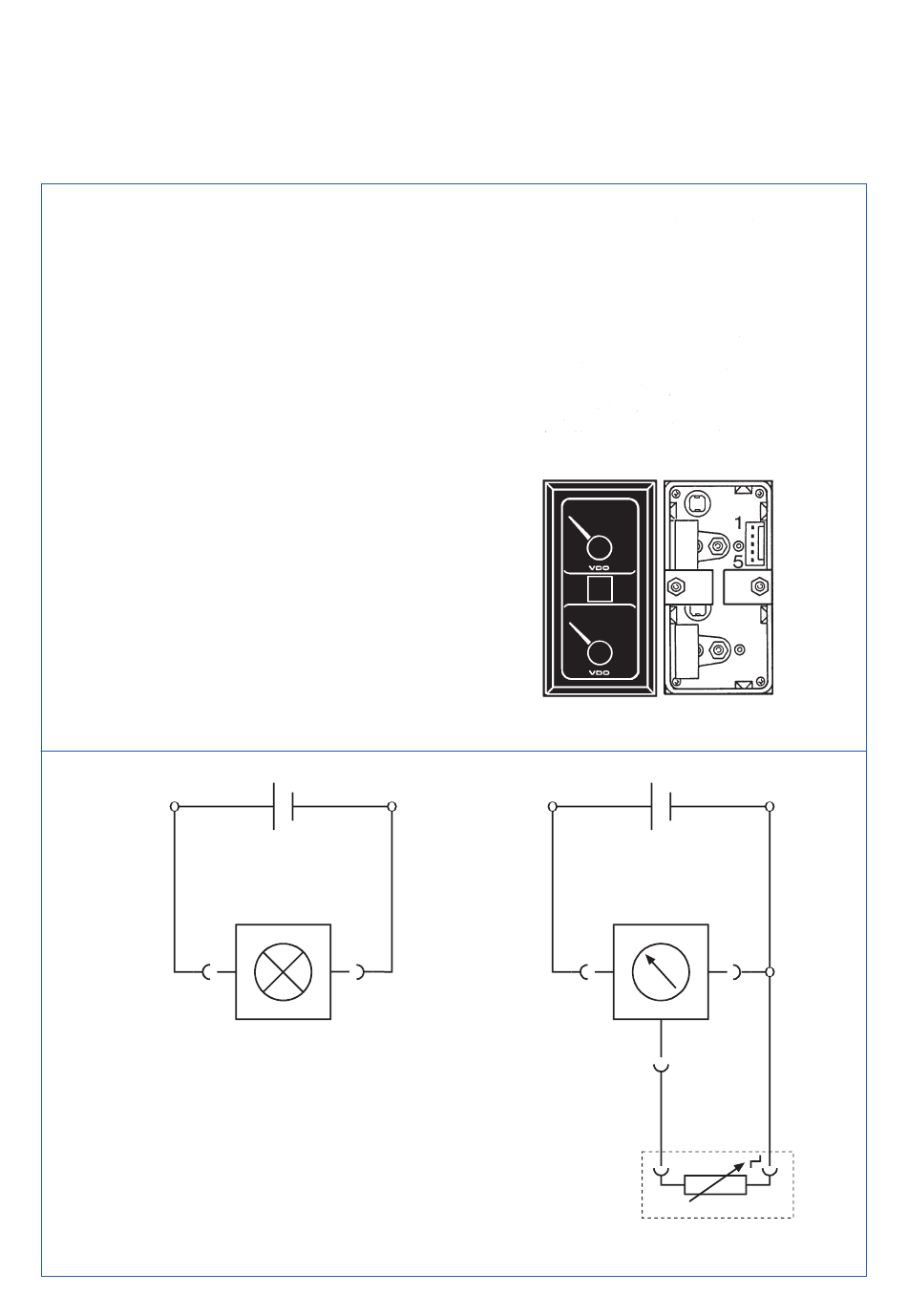

Test circuit diagram:
I
PIN 1
TU00-0740-0000002
Pos. I
Pos. II
II
PIN 3
0904
110-008-980-021
PIN 2 PIN 3
PIN 4
PIN 5
Widerstandsdekade
Resistor decade
5 - 6
