Siemens VDO modulcockpit II Product Manual page 33

Technical Product Manual
VDO modulcockpit II
2. Components

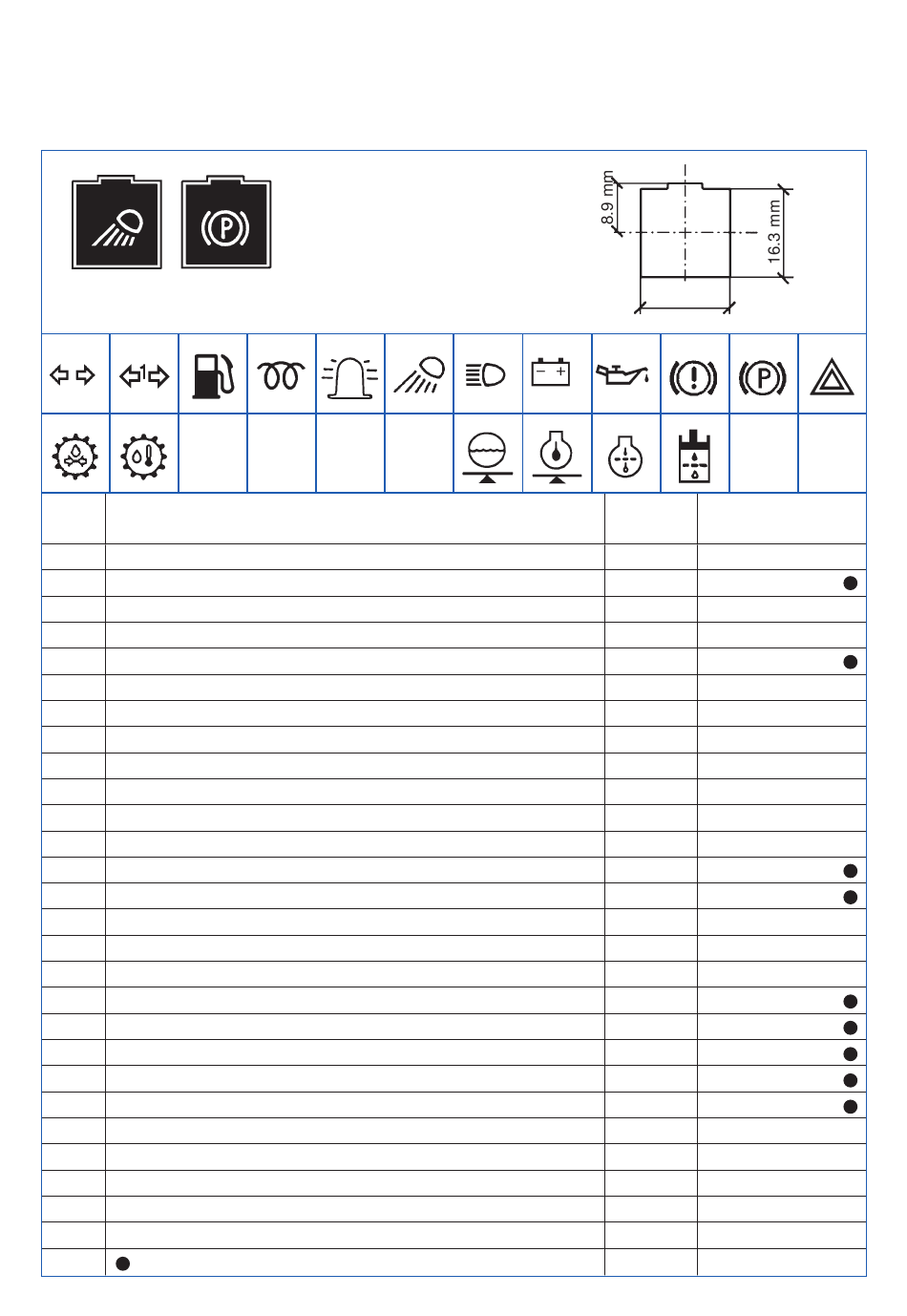

2.7 Indicating Symbols (KL)
1 2 3
13 14 15
No.
1 Turn signals
2 Turn signals, first trailer
3 Fuel
4 Diesel pre-heat
5 Rotation beacon
6 Working light
7 Upper beam
8 Battery charging condition
9 Oil pressure
10 Brake failure
11 Parking brake
12 Hazard warning
13 Transmission oil pressure
14 Transmission oil temperature
15 Without symbol
30 Without symbol
32 Without symbol
33 Without symbol
34 Coolant level
35 Oil level
36 Oil filter
38 Hydraulic oil filter
Phase-out, available as long as stock
TU00-0740-0000002
Front side: symbol, white (RAL 9010)
Rear side: colour field = amber,
blue, green or red
Visible area: 14.5 x 14.5 mm
Material: PC foil
4 5 6
30 32 33
Description
(Replacement No. 0117)
(Replacement No. 0109)
(Replacement No. 0106)
(Replacement No. 0112)
7 8 9
34 35 36
0704
16.3 mm
t = 0.42 mm
10 11
38
Colour Part No.
green 84-438-532-0001
green 84-438-532-0002
amber 84-438-532-0003
amber 84-438-532-0004
amber 84-438-532-0005
amber 84-438-532-0006
blue 84-438-532-0007
red 84-438-532-0008
red 84-438-532-0009
red 84-438-532-0010
red 84-438-532-0011
red 84-438-532-0012
red 84-438-532-0013
red 84-438-532-0014
red 84-438-532-0015
amber 84-438-532-0030
grün 84-438-532-0032
blue 84-438-532-0033
red 84-438-532-0034
red 84-438-532-0035
red 84-438-532-0036
amber 84-438-532-0038
12
2 - 23
