4Unit Instrument Module (4X Ke) - Siemens VDO modulcockpit II Product Manual

Technical Product Manual
VDO modulcockpit II
5. Testing Instructions
5.1 4Unit Instrument Module
(4x Ke) 4x Single Instrument Module
Preselected instrumentation see chapter 4.8
Test accessories:
1x power supply
1x test cable No. 3 (7 pins) *
1x measuring cable *
1x resistor decade
List: technical data (chapter 5.9)
* contained in test cables kit X12-019-100-100
Pin assignment:
PIN 1 Single instrument module sensor pos. II
2 Single instrument module sensor pos. I
3 Ground
4 + 12 V (for 12 V instrument)
+ 24 V (for 24 V instrument)
5 Single instrument module sensor pos. III
6 Single instrument module sensor pos. IV
7 Plus illumination

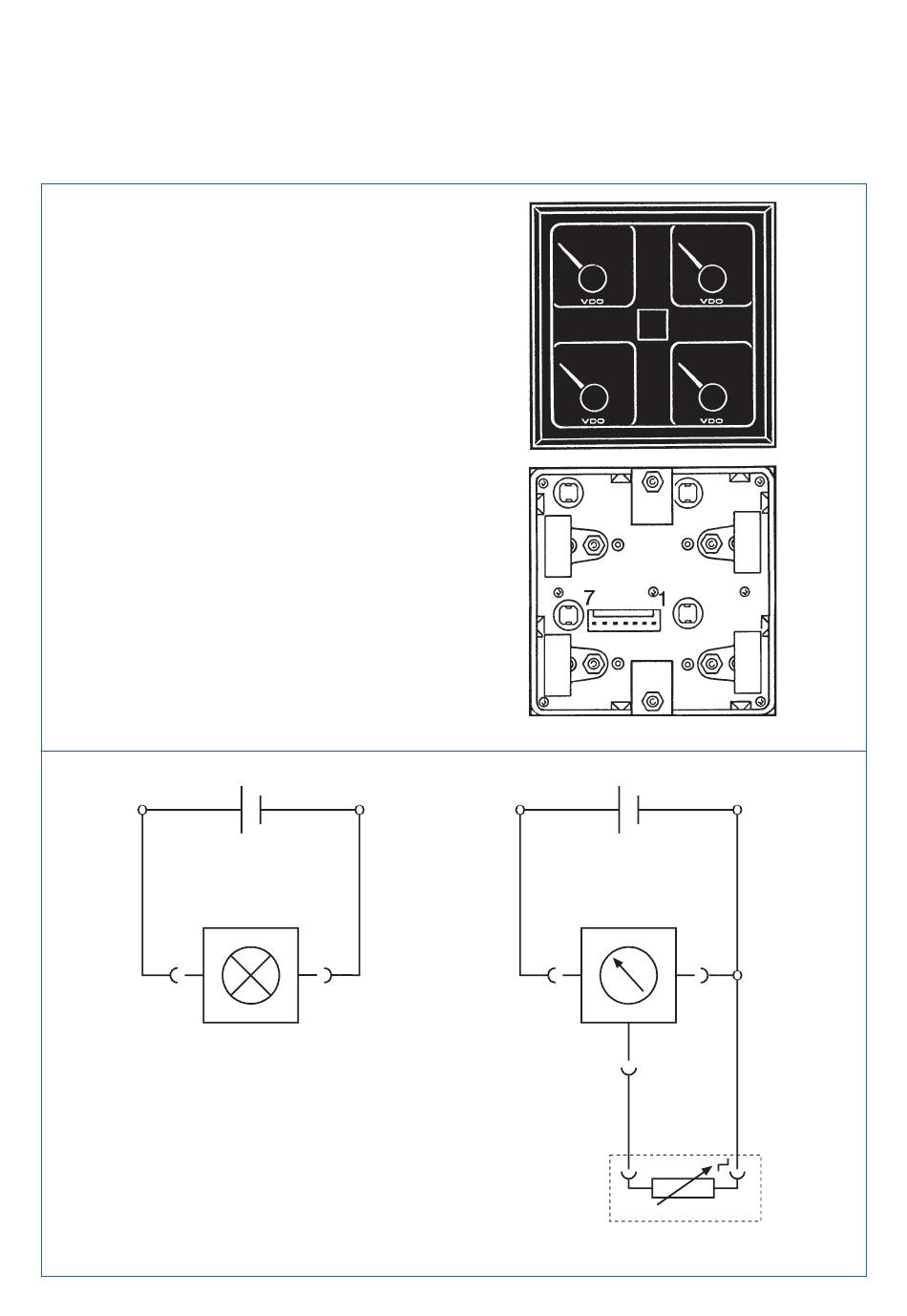

Test circuit diagram:
I
PIN 7
TU00-0740-0000002
Pos. I
Pos. II
II
PIN 3
0904
110-008-980-. . .
PIN 4 PIN 3
PIN 1
PIN 2
PIN 5
PIN 6
Resistor decade
Widerstandsdekade
Pos. III
Pos. IV
5 - 2
