Siemens VDO modulcockpit II Product Manual page 19

Technical Product Manual
VDO modulcockpit II
2. Components

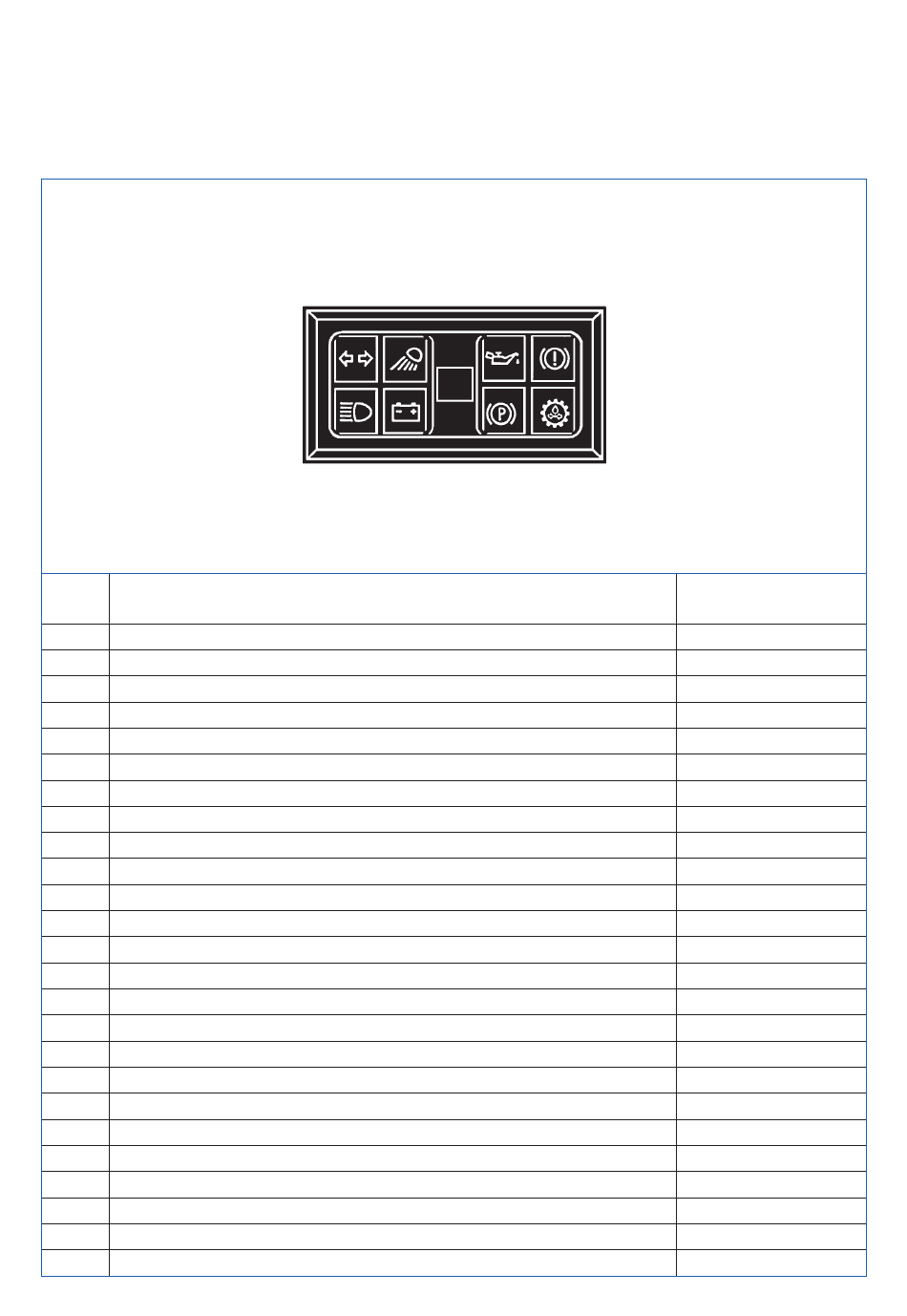

2.2 2 Unit Instrument Module, Horizontal
(KL + KL)
Warning lights + warning lights
Pos.
Designation
Page 2 - 2
1 Housing assy
11 Dial cover, light
Dial cover, dark
12 Indicating symbol
13 Light box
22 Circuit board assy 12 V / 24 V
32 Hex nut M4 ISO 4032 (DIN 934)
33 Washer 3.2 DIN 433
34 Screw, 43 mm
35 Bracket
36 Screw, 25 mm
40 Base bulb 12 V 1.2 W
Base bulb 24 V 1.2 W
41 Connector socket
45 Housing, 8-fold
TU00-0740-0000002
(KL)
0704
Quantity Part No.
1x X11-395-000-029
2x X11-395-000-012
2x X11-395-000-059
8x (see chapter 2.7)
2x X11-395-000-010
1x X11-395-000-043
2x 4-077-003-1161
2x 4-033-005-1162
2x 21-974-018-1141
2x X11-395-000-009
4x X11-395-000-016
8x 92-171-005
8x 92-171-003
16x X11-000-014-005
2x X11-000-014-004
2 - 9
