5. Testing Instructions

5.10 Test Accessories, Programming Accessories

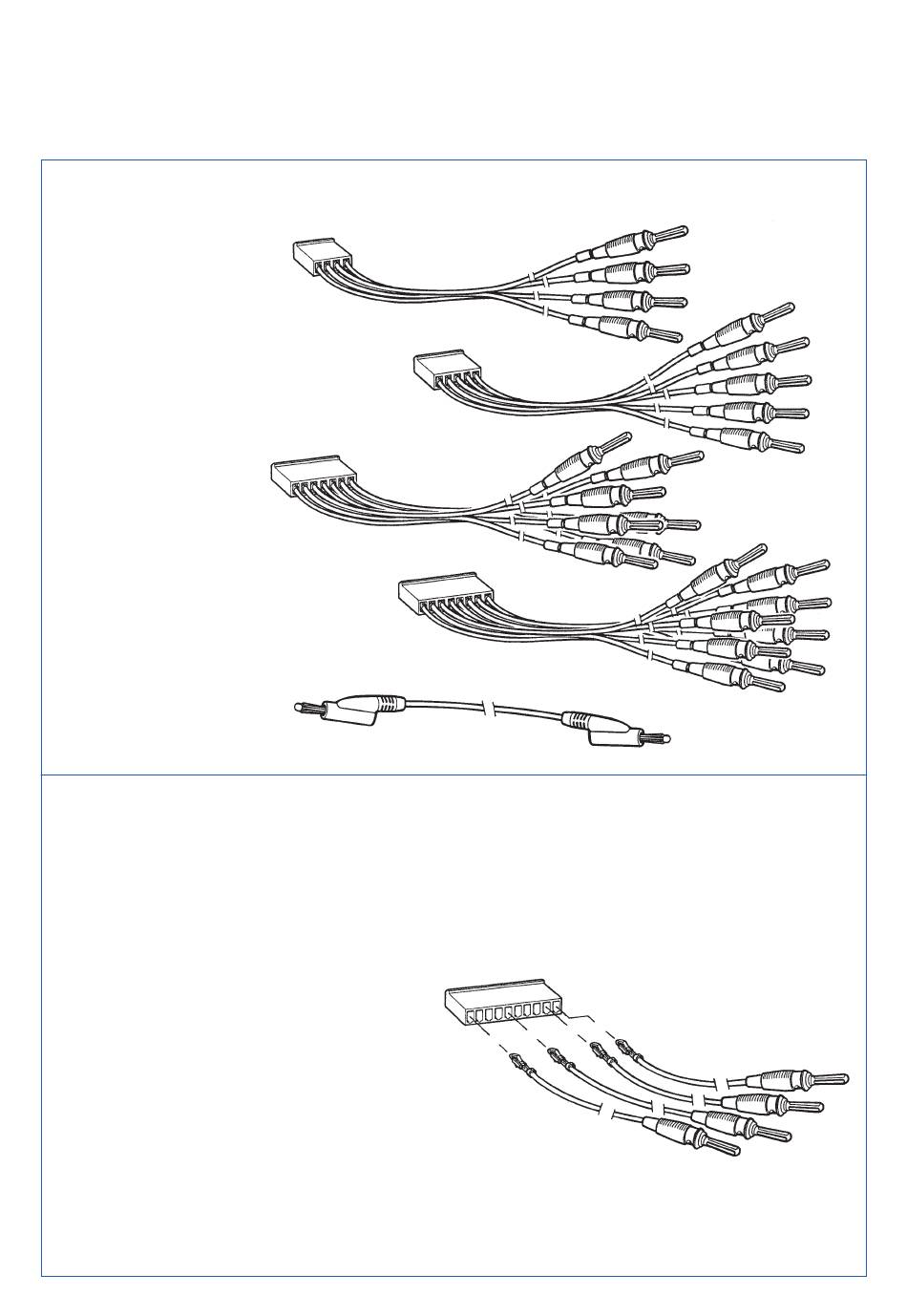

Test Cables Kit
consisting of:
1 test cable No. 1 (4 pins)
1 test cable No. 2 (5 pins)
1 test cable No. 3 (7 pins)
1 test cable No. 4 (8 pins)
1 measuring cable
Note:
For test of the electronic tachometer with operating hours counter, which is connected with pin 10 (permanent
positive pole 12V/24V), a test cable with 10-pole connector housing must be manufactured.
Connect four variegated wires (dia. 0.75 mm
750 mm long) with always a connector socket
(part No. X11-000-014-005) and always a com-
mercial available cluster plug..
Put in the connector sockets in the 10-pole
connector housing (part No. X11-725-002-008)
on 1, 2, 6 and 10.
The connector sockets must engage with an
audible click.
(see chapter 5.7)
TU00-0740-0000002
2
,
6
10
0904
Part No.: X12-019-100-100
1 black
2 green
6 red
10 blue
1
2
5 - 24
