Technical Product Manual
VDO modulcockpit II
5. Testing Instructions
5.3 2Unit Instrument Module
(KL + Ke) Warning Lights + Single Instrument Module 110-008-982-...
Preselected instrumentation see chapter 4.4
Test accessories:
1x power supply
1x test cable No. 1 (4 pins) *
1x test cable No. 4 (8 pins) *
1x measuring cable *
1x resistor decade
List: technical data (chapter 5.9)
* contained in test cables kit X12-019-100-100
Pin assignment:
Connector A
PIN 1 Ground pos. 3
2 Plus illumination pos. 3
3 Ground pos. 1
4 Plus illumination pos. 1
5 Ground pos. 2
6 Plus illumination pos. 2
7 Ground pos. 4
8 Plus illumination pos. 4
Connector B
PIN 1 Plus illumination
2 + 12 V (for 12 V instrument)
+ 24 V (for 24 V instrument)
3 Ground
4 Single instrument module sensor

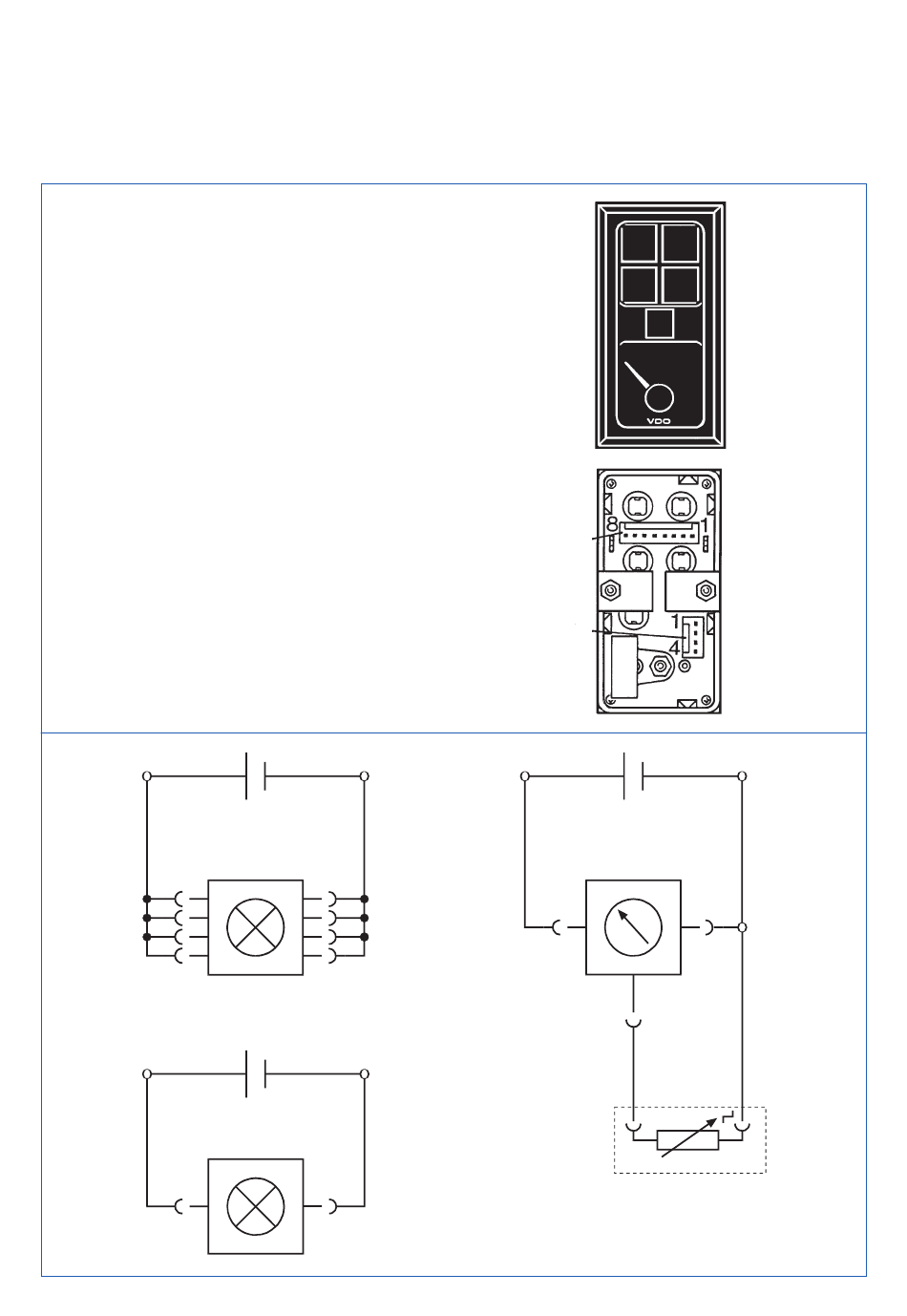

Test circuit diagram:
I
PIN 2, 4, 6, 8
Pins refer to connector A.
PIN's beziehen sich auf die Stiftleiste A!
II
PIN 1
TU00-0740-0000002
PIN 1, 3, 5, 7
PIN 3
0904
Pos. 1
Pos. 3
Connector A
Connector B
III
PIN 2
Sensor line
Geberltg.
PIN 4
Resistor decade
Widerstandsdekade
Pos. 2
Pos. 4
PIN 3
5 - 8
