SITRANS F
Electromagnetic flowmeters
SITRANS Verificator
Operating Instructions
7ME690 SITRANS Verificator
03/2024
A5E51481698-AA
Getting started
Introduction
Safety notes
Description
Installing/mounting
Connecting
Operating
Service and maintenance
Diagnostics and
troubleshooting
Technical specifications
Product documentation
and support
1
2
3
4
5
6
7
8
9
10
A
Advertisement
Table of Contents

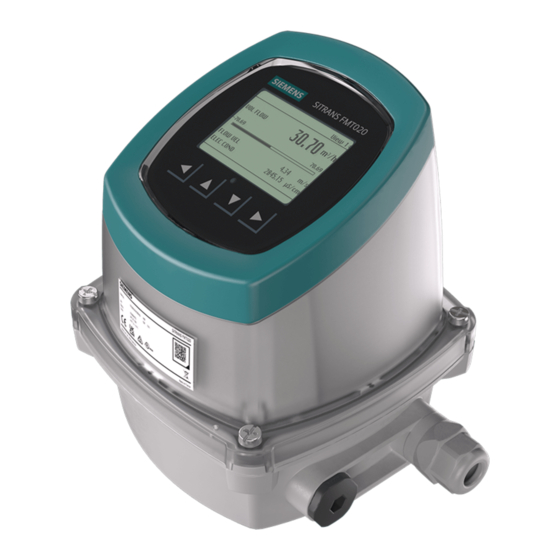

Related Manuals for Siemens SITRANS FMT020
Summary of Contents for Siemens SITRANS FMT020
- Page 1 Getting started Introduction Safety notes SITRANS F Description Electromagnetic flowmeters SITRANS Verificator Installing/mounting Connecting Operating Instructions Operating Service and maintenance Diagnostics and troubleshooting Technical specifications Product documentation and support 7ME690 SITRANS Verificator 03/2024 A5E51481698-AA...
- Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 3: Table Of Contents
Table of contents Getting started ............................5 Introduction ............................7 Purpose of this documentation .................... 7 Document history ........................ 7 Product compatibility ......................7 Designated use ........................7 Checking the consignment....................8 Items supplied ........................8 Cybersecurity information ....................9 Transportation and storage .................... - Page 4 Table of contents Reset Password ........................32 Starting a verification and generating a certificate or report ..........32 Service and maintenance ........................37 Basic safety notes....................... 37 Annual calibration......................37 Ordering licenses ....................... 37 Activating a new license..................... 39 Cleaning ..........................39 Maintenance and repair work.....................
-
Page 5: Getting Started
Getting started Condition You have read the following safety instructions: • General safety information (Page 11) • Installation location requirements (Page 17) • Basic safety information: Connecting (Page 23) Read the entire document in order to achieve the optimum performance of the device. Procedure 1. - Page 6 Getting started SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
-
Page 7: Introduction
Compatible transmitters Transmitter revision edition 03/2024 First edition FW: 1.13.00 or later SITRANS FMT020 FW: 1.01.05-00 or later HW: 1.00.00 or later HW: 1.00.00 or later Device revision 1 or later Designated use Use the device in accordance with the information on the nameplate and in the Technical specifications (Page 45). -
Page 8: Checking The Consignment
Introduction 2.6 Items supplied Checking the consignment 1. Check the packaging and the delivered items for visible damages. 2. Report any claims for damages immediately to the shipping company. 3. Retain damaged parts for clarification. 4. Check the scope of delivery by comparing your order to the shipping documents for correctness and completeness. -
Page 9: Cybersecurity Information
Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure... -
Page 10: Notes On Warranty
The content reflects the technical status at the time of publishing. Siemens reserves the right to make technical changes in the course of further development. -
Page 11: Safety Notes
Safety notes Preconditions for use This device left the factory in good working condition. In order to maintain this status and to ensure safe operation of the device, observe these instructions and all the specifications relevant to safety. Observe the information and symbols on the device. Do not remove any information or symbols from the device. -
Page 12: Improper Device Modifications
Safety notes 3.1 Preconditions for use 3.1.2 Improper device modifications WARNING Improper device modifications Risk to personnel, system, and environment can result from modifications to the device, particularly in hazardous areas. • Only carry out modifications that are described in the instructions for the device. Failure to observe this requirement cancels the manufacturer's warranty and the product approvals. -
Page 13: Battery Powered Devices
Safety notes 3.2 Battery powered devices Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 14 Safety notes 3.2 Battery powered devices SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
-
Page 15: Description
ISO compliances • Always up to date through periodic recalibration and service checks Supported products The SITRANS Verificator confirms accurate performance of FM520, FM320 and FM120 systems, equipped with a SITRANS FMT020 trannsmitter. SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA... -
Page 16: Nameplate Layout
Description 4.1 Nameplate layout Nameplate layout Layout of the nameplate ① ⑥ Manufacturer ID Link according to IEC 61406 ② ⑦ Product name Place of manufacture ③ ⑧ Article number Conformity with country-specific directives ④ ⑨ Serial number (S/N) Power supply ⑤... -
Page 17: Installing/Mounting
Installing/mounting Installation location requirements WARNING Insufficient air supply The device may overheat if there is an insufficient supply of air. • Install the device so that there is sufficient air supply in the room. • Observe the maximum permissible ambient temperature. Refer to the information in the section Technical specifications (Page 45). -
Page 18: Installation Options
Installing/mounting 5.3 Installing the FMT020 Adapter Installation options The SITRANS Verificator can be used for both compact and remote installations. Figure 5-1 Compact installation example Figure 5-2 Remote installation example Installing the FMT020 Adapter Before you start Read the safety notes: • General safety notes (Page 11) •... - Page 19 Installing/mounting 5.3 Installing the FMT020 Adapter Procedure CAUTION Risk of damaging the device Turn the flowmeter off before mounting. The FMT020 Adapter can only be mounted while not in an energized state. 1. Isolate the flowmeter from power. 2. Remove the transmitter. 3.
- Page 20 Installing/mounting 5.3 Installing the FMT020 Adapter 4. Tighten the 4 mounting screws. 5. Place the transmitter on top of the FMT020 Adapter. SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
- Page 21 Installing/mounting 5.3 Installing the FMT020 Adapter 6. Tighten the 4 mounting screws. 7. You can now connect the connection cable between the FMT020 Adapter and the Verificator unit. Connecting the cable (Page 25) SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
- Page 22 Installing/mounting 5.3 Installing the FMT020 Adapter SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
-
Page 23: Connecting
Connecting Basic safety notes WARNING Incorrect conduit system Risk of explosion in hazardous areas as result of open cable inlet or incorrect conduit system. • In the case of a conduit system, mount a spark barrier at a defined distance from the device input. -
Page 24: Overview Of Verificator Test Unit And Led Behavior
Connecting 6.2 Overview of Verificator test unit and LED behavior NOTICE Condensation in the device Damage to device through formation of condensation if the temperature difference between transportation or storage and the mounting location exceeds 20 °C (36 °F). • Before taking the device into operation, let the device adapt for several hours in the new environment. -
Page 25: Connecting The Cable
Connecting 6.3 Connecting the cable ② Bluetooth LED LED behavior Description Bluetooth not initialized, no communication with SITRANS mobile IQ possible Bluetooth initialized, communication with SITRANS mobile IQ possible ④ Power LED LED behavior Description Device is off Device is powered on Blinking slowly Device is shutting down Blinking rapidly... - Page 26 Connecting 6.3 Connecting the cable Reference ① FMT020 adapter latch ② FMT020 adapter lid ③ Battery compartment latch ④ Battery compartment lid ⑤ Connection cable connector latch ⑥ Connection cable connector lid Procedure 1. Isolate the flowmeter from power. Turn off the Verificator test unit. ①...
-
Page 27: Installing Or Replacing The Battery
Connecting 6.4 Installing or replacing the battery 6. With the same type of mechanism connect the other side of the cable to the Verificator test ④ unit. Figure 6-1 Connecting the cable 7. Reconnect power to the flowmeter. 8. Check battery charge level and install battery: Installing or replacing the battery (Page 27) 9. -
Page 28: Charging The Battery
Connecting 6.5 Charging the battery Removing or replacing the battery 1. Push down the latch on the battery compartment lid. 2. Open up the battery compartment lid. 3. To replace slide out the installed battery first. Insert the new battery. 4. Close the battery compartment in reverse order. 5. - Page 29 Connecting 6.5 Charging the battery Reference ① Battery station ② Power supply cable ③ AC power cable Figure 6-2 Battery station with cables Charging the battery Note Charge battery prior to first use On delivery the battery level will be low. It is recommended to fully charge the battery prior to first use.
- Page 30 Connecting 6.5 Charging the battery SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
-
Page 31: Operating
SITRANS mobile IQ is an app for mobile devices that enables authorized service technicians to monitor and configure compatible field instrumentation over a Bluetooth interface. You can find information and the app for download at: SITRANS mobile IQ (https://www.siemens.com/ global/en/products/automation/process-instrumentation/digitalization/sitrans-mobile- iq.html#AppDownload) Requirements for establishing the first connection 1. -
Page 32: Reset Password
Operating 7.3 Starting a verification and generating a certificate or report 1. Start the SITRANS mobile IQ app. The smartphone or tablet automatically searches for Bluetooth devices in the vicinity. The devices found are listed. Select the Verificator in the device list. 2. - Page 33 Operating 7.3 Starting a verification and generating a certificate or report Procedure 1. Tap on "START FULL VERIFICATION". A full verification consists of transmitter test, insulation test and coil circuit test. – You can also start a partial verification by switching to the "Verification" tab. No certificates can be generated on partial verifications.
- Page 34 Operating 7.3 Starting a verification and generating a certificate or report 5. Enter a user name and company name under "Performed by". This information is required to save the report. 6. Either tap on "Add cutomer", enter and save the relevant information or tap on one of the existing entries.
- Page 35 Operating 7.3 Starting a verification and generating a certificate or report 10.Wait for the PDF certificate to be generated. Add your signature by tapping on "SIGNATURE" and save. You can additionally add comments by tapping on the text field at the bottom of the certificate.
- Page 36 Operating 7.3 Starting a verification and generating a certificate or report SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
-
Page 37: Service And Maintenance
A Verificator with an expired calibration will still be able to perform verifications, but the certificate will include a "not calibrated" watermark. Re-calibration of the SITRANS Verificator is offered at our Measurement Instrumentation factory. Contact your local Siemens representative for support: Technical support (Page 48). Follow the guidelines described under Return procedure (Page 40). Ordering licenses Licensing model To use the SITRANS Verificator for full or partial verifications, you need an active license installed. - Page 38 A license can be ordered through PIA Life Cycle Portal (https://www.pia- portal.automation.siemens.com) or through your local sales representative. Issuing a new license can take up to 5 working days and will be sent by email. It is recommended to order a new license at the same time as you do the Annual calibration (Page 37).
-
Page 39: Activating A New License
The inscriptions could become unreadable. Maintenance and repair work WARNING Impermissible repair and maintenance of the device • Repair and maintenance must be carried out by Siemens authorized personnel only. WARNING Humid environment Risk of electric shock. -
Page 40: Transport
To return a product to Siemens, see Returns to Siemens (www.siemens.com/returns-to- siemens). Contact your Siemens representative to clarify if a product is repairable, and how to return it. They can also help with quick repair processing, a repair cost estimate, or a repair report/ cause of failure report. -
Page 41: Disposal
Further information about devices containing batteries can be found at: Information about battery / product return (WEEE) (https:// support.industry.siemens.com/cs/document/109479891/) Note Special disposal required The device includes components that require special disposal. • Dispose of the device properly and environmentally through a local waste disposal contractor. - Page 42 Service and maintenance 8.9 Disposal SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
-
Page 43: Diagnostics And Troubleshooting
Diagnostics and troubleshooting On site troubleshooting WARNING Sensor check in remote installation Do not declare a sensor as defective based only on a sensor check in remote installations. Repeat the sensor check with the Verificator connected directly to the sensor. This is necessary to rule out the cable installation as the source of the verification failure. - Page 44 Diagnostics and troubleshooting 9.1 On site troubleshooting Mobile IQ troubleshooting • Verify that location service is enabled • If the device was not able to pair through Mobile IQ, check the device in the Bluetooth available devices and try to pair manually •...
-
Page 45: Technical Specifications
Power supply Removable battery pack Battery voltage 14.4 V DC Only use the standard lithium battery pack RRC2054 as supplied by Siemens. Only use battery station (RRC-SMB-MBC) and power supply PS65 (A11-065N1A model) or equivalent as supplied by Siemens. 10.2 Operating conditions... -
Page 46: Construction
Technical specifications 10.5 SITRANS mobile IQ 10.3 Construction Table 10-3 Mechanical construction Description Specification Material • Verificator base • Polyethylene • Verificator lid • Aluminium • FMT020 adapter • Aluminium Weight • Verificator test unit • 4 kg • FMT020 adapter • 1.6 kg •... -
Page 47: Product Documentation And Support
– "Download as html5, only PC": Open or save the manual in the HTML5 view on your PC You can also find manuals with the Mobile app at Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/sc/2067). Download the app to your mobile device and scan the device QR code. Product documentation by serial number Using the PIA Life Cycle Portal, you can access the serial number-specific product information including technical specifications, spare parts, calibration data, or factory certificates. -
Page 48: Technical Support
(http:// www.siemens.com/automation/csi/service). Service & support on the Internet In addition to our technical support, Siemens offers comprehensive online services at service & support (http://www.siemens.com/automation/serviceandsupport). Contact If you have further questions about the device, contact your local Siemens representative, by doing the following: 1. -
Page 49: Index
Index AC Power Operating conditions Power Adapter/Charger, 29 Basic conditions, 45 Article number on the nameplate, 16 Password Reset, 32 Battery unit, 40 Power supply, 45 Product name, 16 Catalog catalog sheets, 47 Return procedure, 40 Certificates, 47 Cleaning, 39 Customer Support, (Refer to Technical support) Scope of delivery, 8 Service, 48 Service and support Design Internet, 48 Wall mount housing transmitter, 46... - Page 50 Index SITRANS Verificator Operating Instructions, 03/2024, A5E51481698-AA...
