Technical Product Manual
VDO modulcockpit II
2. Components

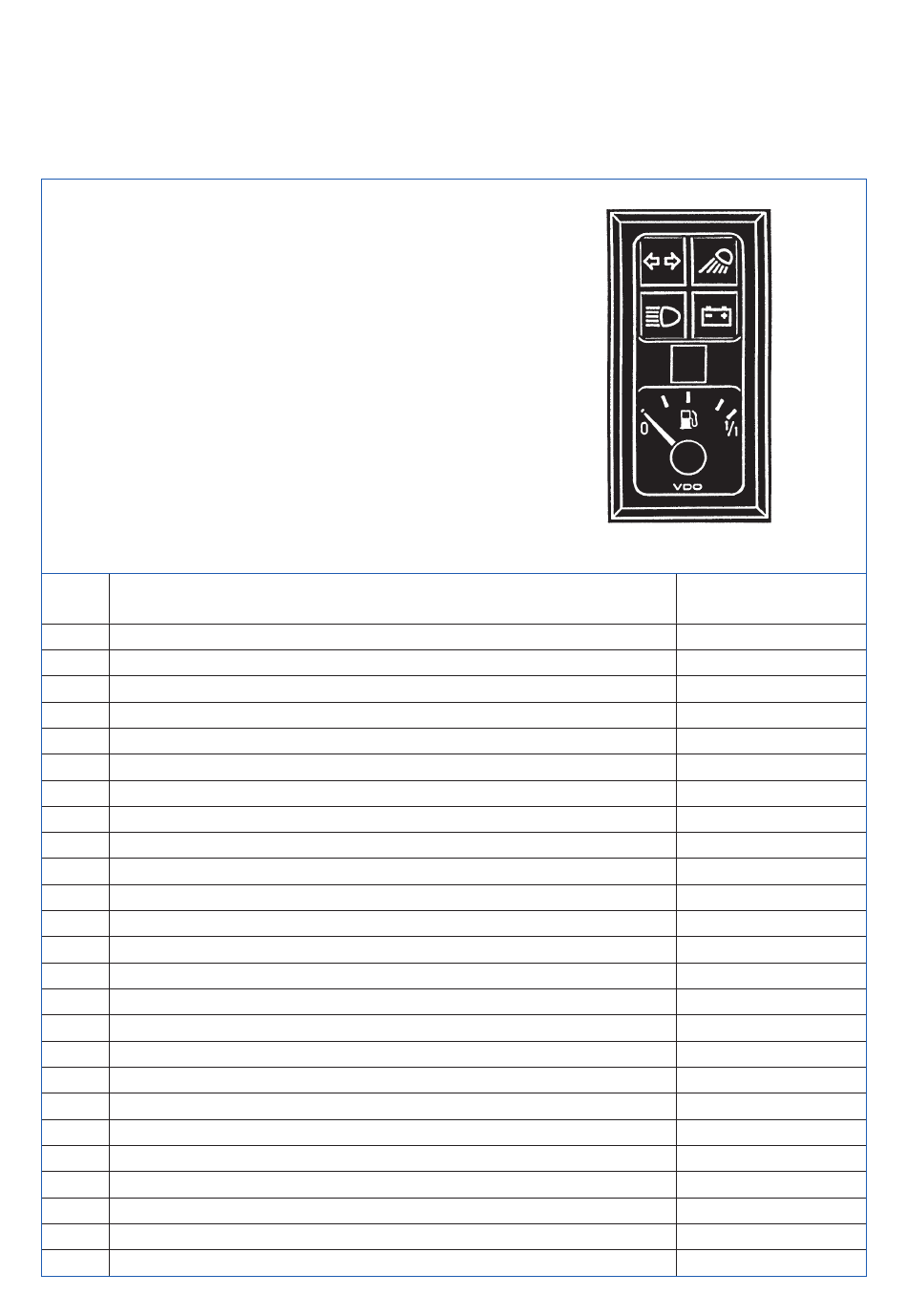

2.1 2 Unit Instrument Module, Vertical
(KL + Ke)
Warning lights + single instrument module
Pos.
Designation
page 2 - 2
1 Housing assy
10 Single instrument module
11 Dial cover, light
Dial cover, dark
12 Indicating symbol
13 Light box
21 Circuit board assy 12 V
Circuit board assy 24 V
30 Shield
31 Spring washer 4 DIN 137
32 Hex nut M4 ISO 4032 (DIN 934)
33 Washer 3.2 DIN 433
34 Screw, 43 mm
35 Bracket
36 Screw, 25 mm
40 Base bulb 12 V 1.2 W
Base bulb 24 V 1.2 W
41 Connector socket
42 Housing, 4-fold
45 Housing, 8-fold
TU00-0740-0000002
(Ke)
(KL)
0704
Quantity Part No.
1x X11-395-000-029
1x (see chapter 2.5)
1x X11-395-000-012
1x X11-395-000-059
4x (see chapter 2.7)
1x X11-395-000-010
1x X11-395-000-041
1x X11-395-000-042
1x X11-395-000-008
1x 4-027-003-1162
2x 4-077-003-1161
2x 4-033-005-1162
2x 21-974-018-1141
2x X11-395-000-009
4x X11-395-000-016
5x 92-171-005
5x 92-171-003
12x X11-000-014-005
1x X11-000-014-001
1x X11-000-014-004
