Figure 4-8: Diagnostics Control Panel - Tektronix MSO70000 Series Service Manual

Troubleshooting (DPO7000 Series, MSO70000/C Series, DSA/DPO70000B/C Series)
4–24
The power on tests ensure that the hardware is installed and can be accessed
by the software. The tests provide limited diagnostic information, and provide
no performance information.
If there are no failures, you can view the results of the tests in the Instrument
Diagnostics page, under the Utilities menu.
To run the instrument Diagnostics, perform these steps:
1. Turn off all other applications.
2. From the menu bar, touch Utilities and then select Instrument Diagnostics; the
Diagnostics control panel appears. (See Figure 4-8.)

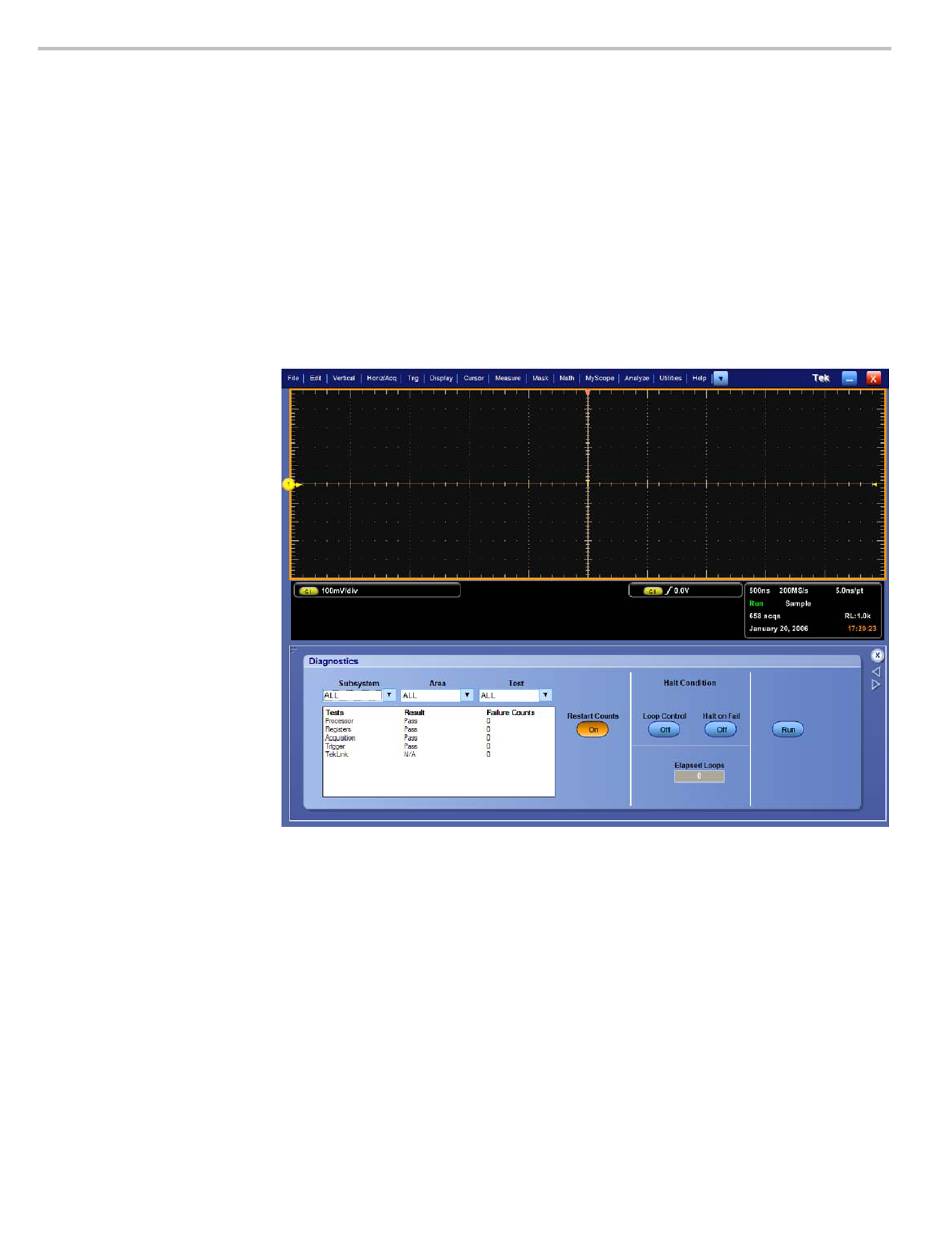

Figure 4-8: Diagnostics control panel

MSO70000/C, DSA70000B/C, DPO70000B/C, DPO7000, MSO5000, DPO5000 Series
