μATX and Power Interface Removal (DPO7000 Series)

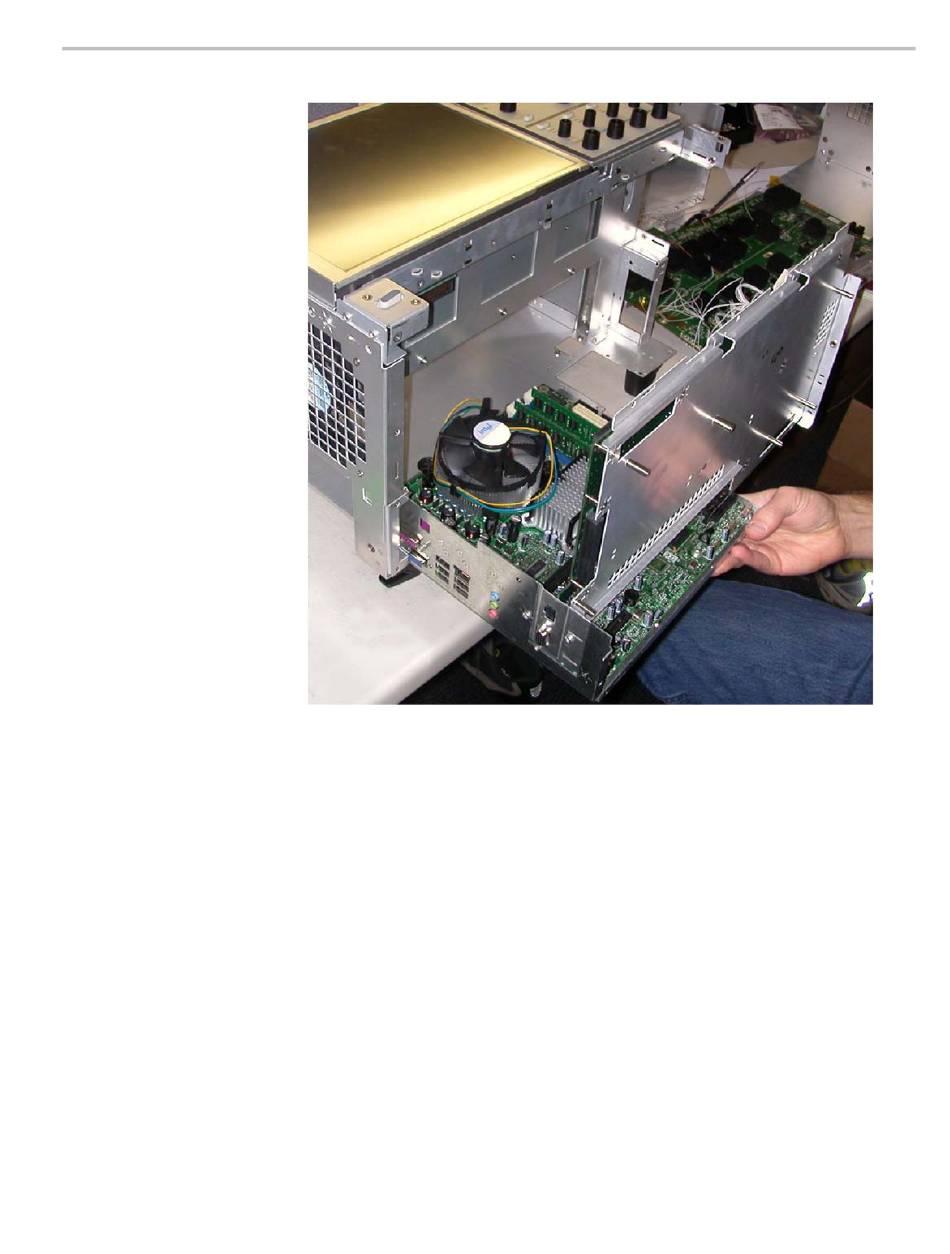

Figure 4-3: Removing the μATX/Power Interface assembly
8. Install the μATX/Power Interface assembly by performing these steps in
reverse order.
MSO70000/C, DSA70000B/C, DPO70000B/C, DPO7000, MSO5000, DPO5000 Series
4–13
