Troubleshooting (DPO7000 Series, MSO70000/C Series, DSA/DPO70000B/C Series)

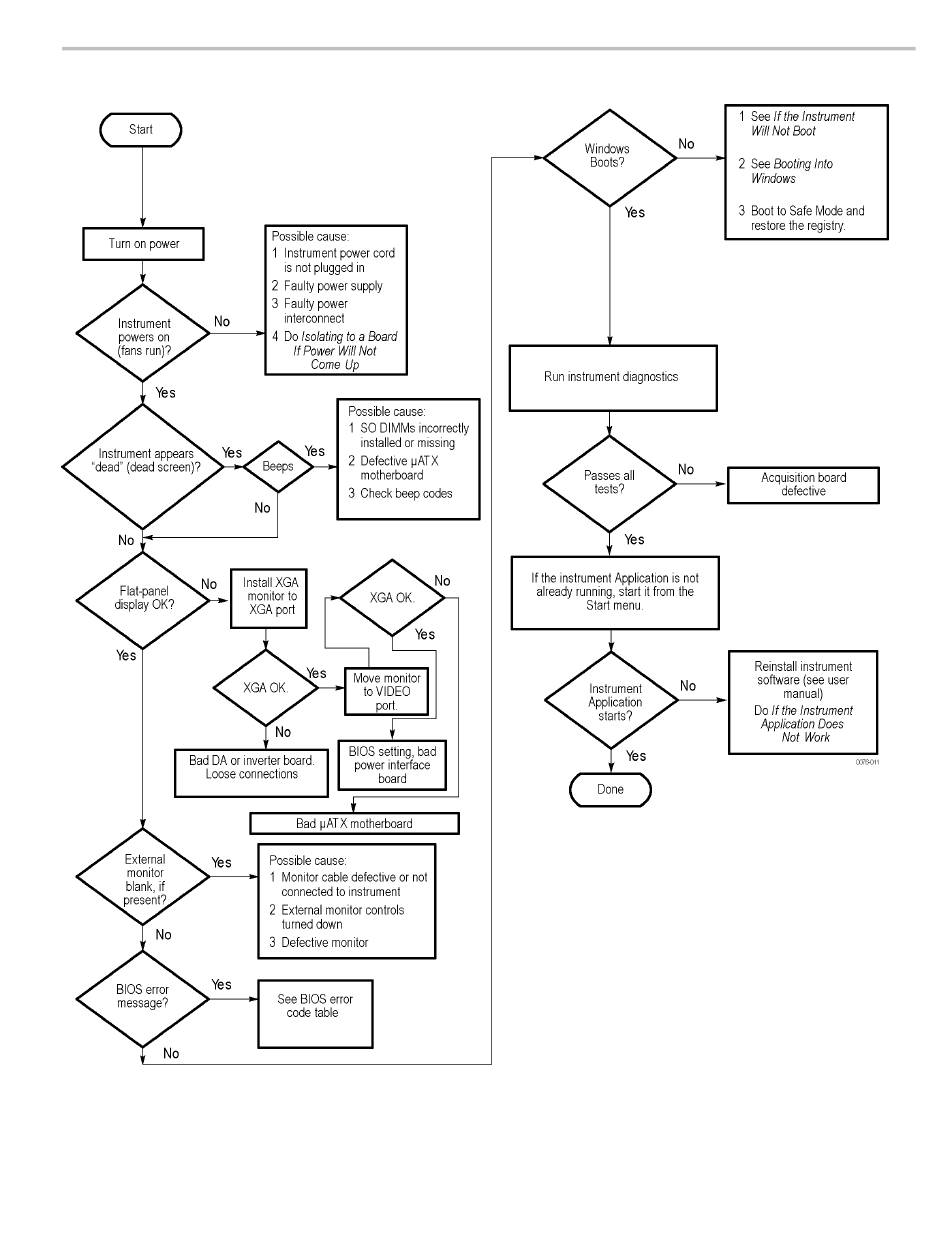

Figure 4-5: Primary troubleshooting tree

MSO70000/C, DSA70000B/C, DPO70000B/C, DPO7000, MSO5000, DPO5000 Series
4–19
