Module Removal (DPO7000 Series)

Module Removal (DPO7000 Series)
4–8
To remove a module, refer to the module locator. (See Figure 4-1.)
You can also refer to the exploded view diagrams.(See page 5-2, Using the
Replaceable Parts List.)
To access the modules, refer to the module removal table. (See Table 4-4 on
page 4-9.)

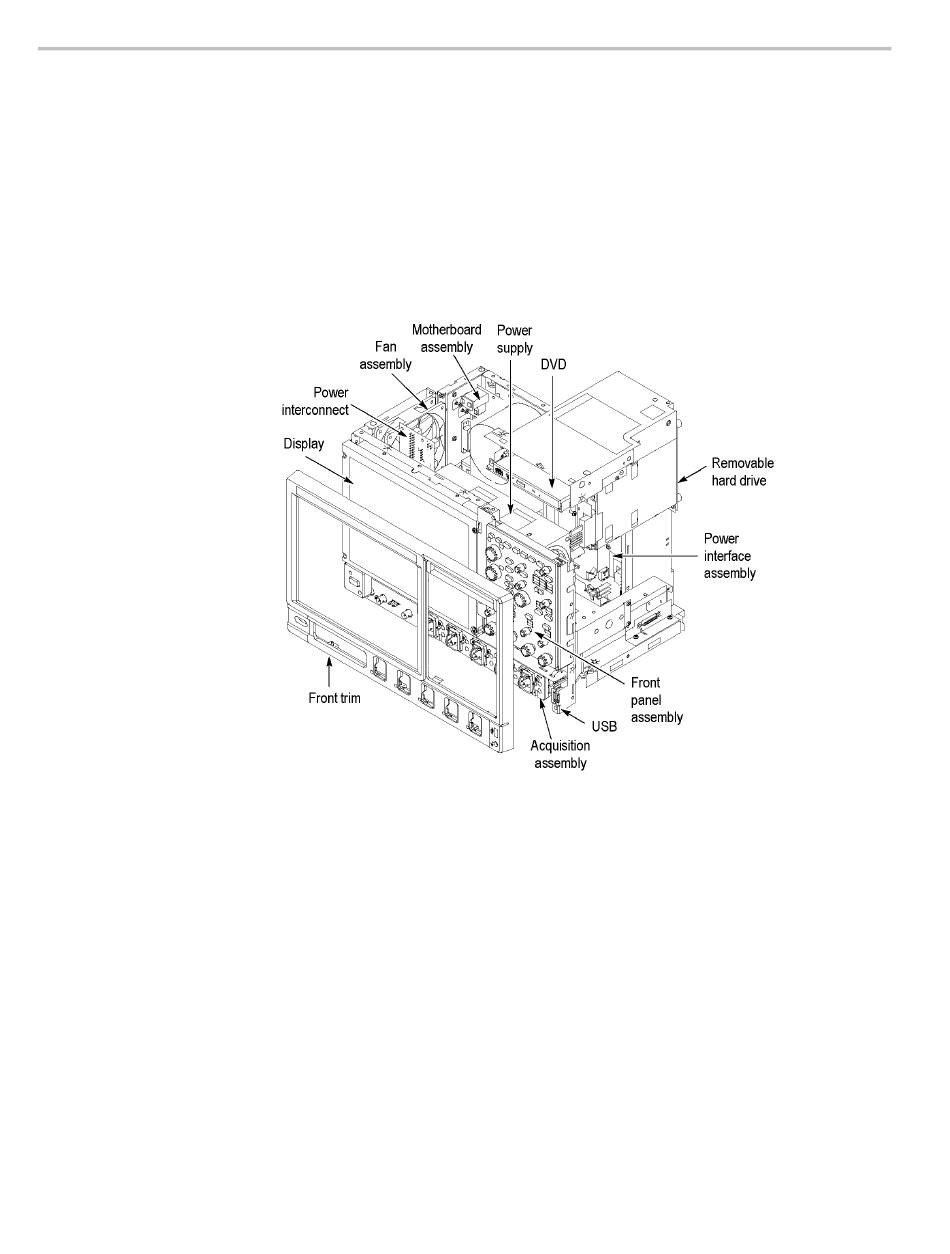

Figure 4-1: DPO7000 Series module locations

MSO70000/C, DSA70000B/C, DPO70000B/C, DPO7000, MSO5000, DPO5000 Series
