Odor formation due to unused ventilation line
Odor formation may occur if a ventilation pipe is installed for safety due to
an unknown waste water line. This occurs when no external siphon is
installed in the wall.
The ventilation pipe is not required.
n
Remove the ventilation line with the ventilation pipe.
n
Connect the waste water line according to the specifications.
n

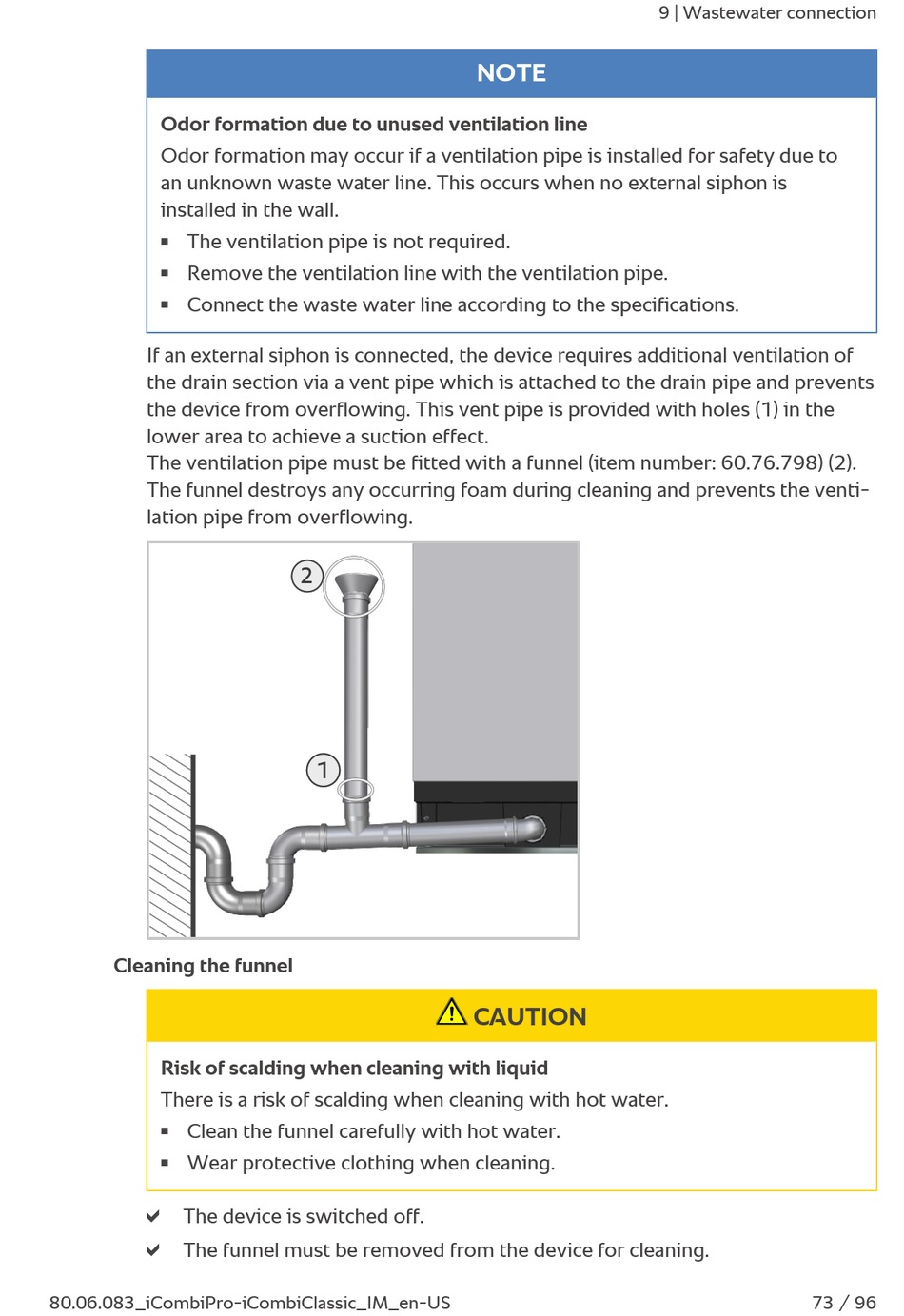

If an external siphon is connected, the device requires additional ventilation of
the drain section via a vent pipe which is attached to the drain pipe and prevents
the device from overflowing. This vent pipe is provided with holes (1) in the
lower area to achieve a suction effect.
The ventilation pipe must be fitted with a funnel (item number: 60.76.798) (2).
The funnel destroys any occurring foam during cleaning and prevents the venti-
lation pipe from overflowing.
Cleaning the funnel
Risk of scalding when cleaning with liquid
There is a risk of scalding when cleaning with hot water.
Clean the funnel carefully with hot water.
n
Wear protective clothing when cleaning.
n
a
The device is switched off.
a
The funnel must be removed from the device for cleaning.
80.06.083_iCombiPro-iCombiClassic_IM_en-US
2
1
NOTE
CAUTION
9 | Wastewater connection
73 / 96
