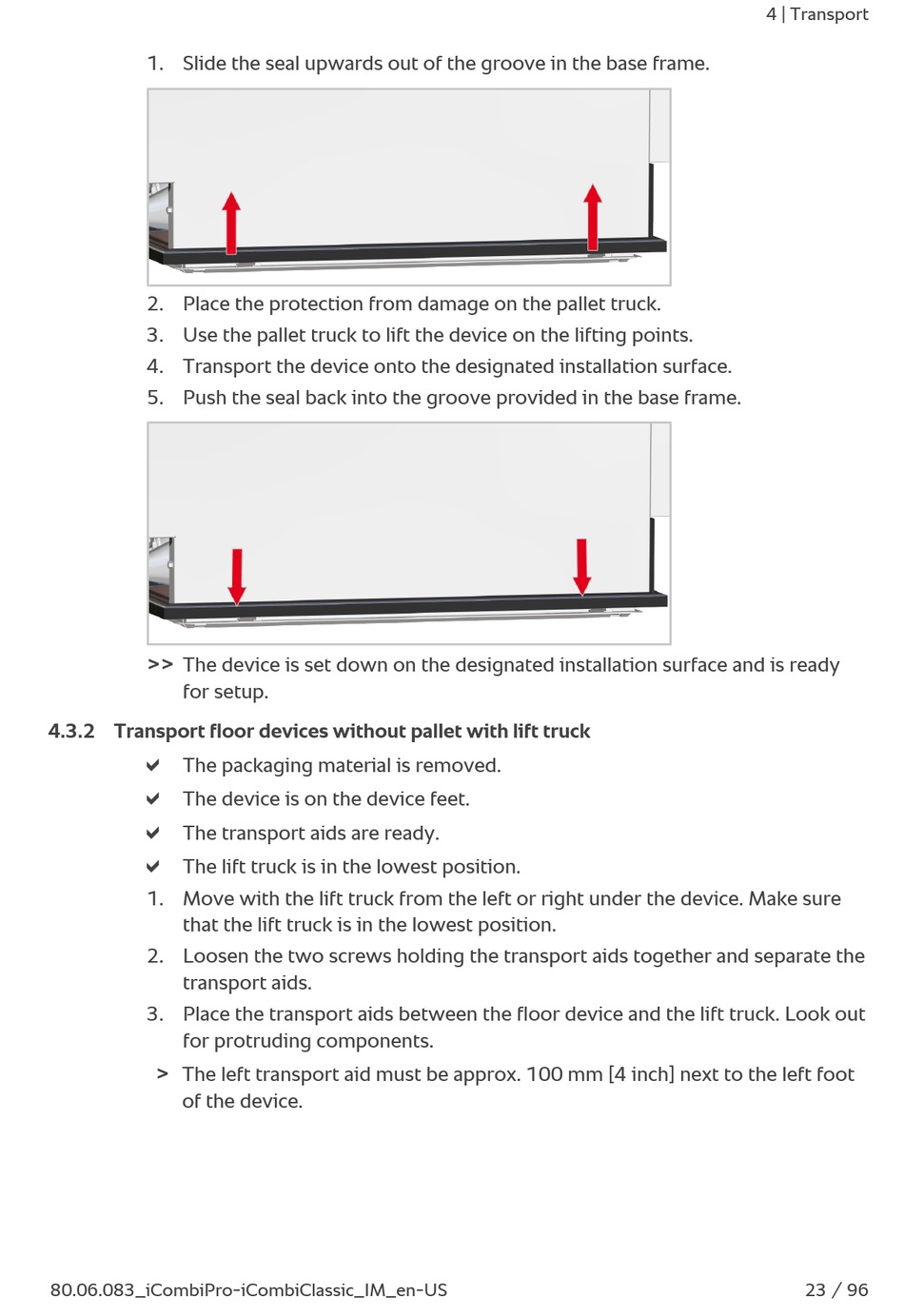

1. Slide the seal upwards out of the groove in the base frame.
2. Place the protection from damage on the pallet truck.
3. Use the pallet truck to lift the device on the lifting points.
4. Transport the device onto the designated installation surface.
5. Push the seal back into the groove provided in the base frame.
>>
The device is set down on the designated installation surface and is ready
for setup.

4.3.2 Transport floor devices without pallet with lift truck

a
The packaging material is removed.
a
The device is on the device feet.
a
The transport aids are ready.
a
The lift truck is in the lowest position.
1. Move with the lift truck from the left or right under the device. Make sure
that the lift truck is in the lowest position.
2. Loosen the two screws holding the transport aids together and separate the
transport aids.
3. Place the transport aids between the floor device and the lift truck. Look out
for protruding components.
>
The left transport aid must be approx. 100 mm [4 inch] next to the left foot
of the device.
