3 | Product description

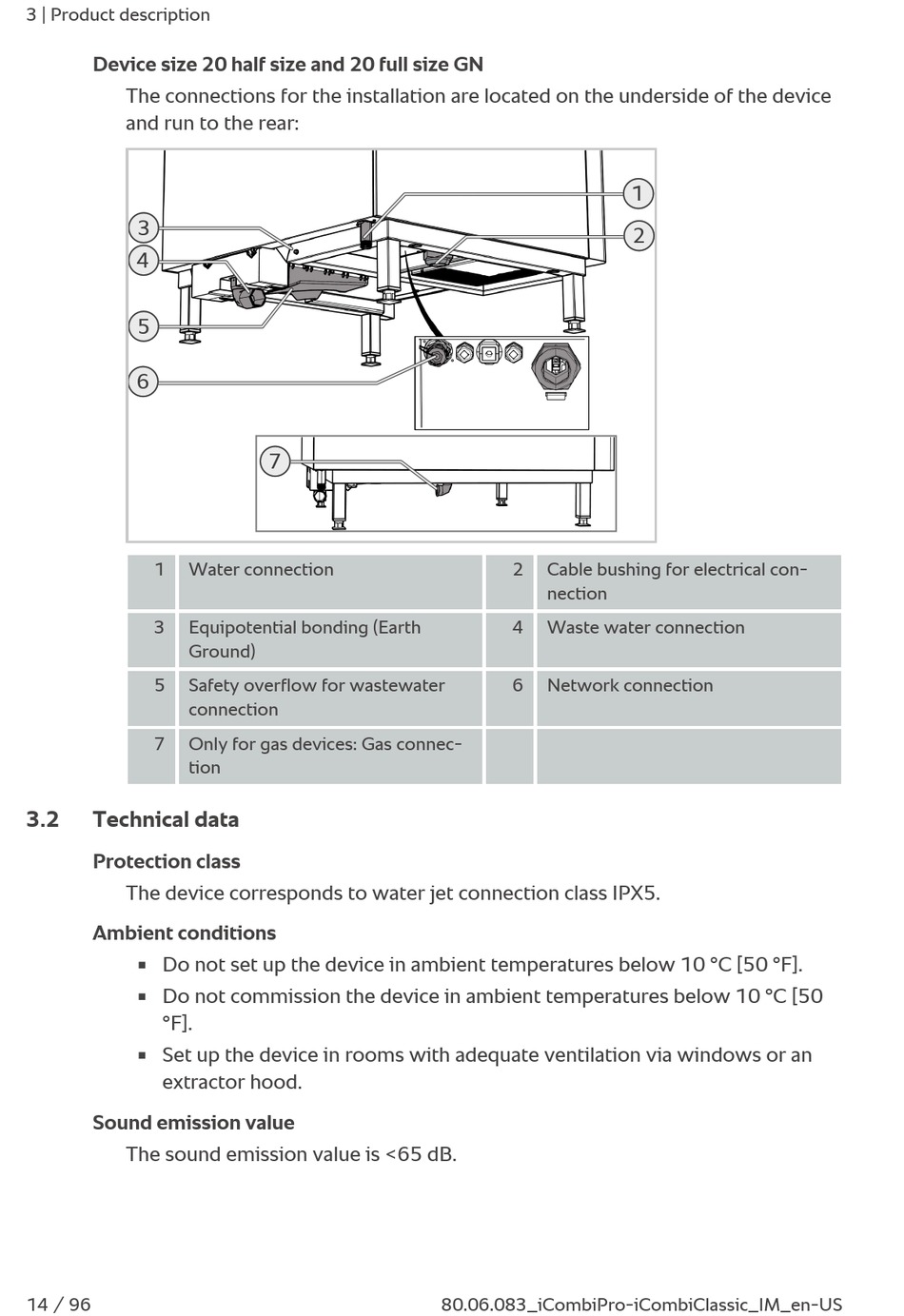

Device size 20 half size and 20 full size GN
The connections for the installation are located on the underside of the device
and run to the rear:
3
4
5
6
1 Water connection
3 Equipotential bonding (Earth
Ground)
5 Safety overflow for wastewater
connection
7 Only for gas devices: Gas connec-
tion
3.2

Technical data

Protection class
The device corresponds to water jet connection class IPX5.
Ambient conditions
Do not set up the device in ambient temperatures below 10 °C [50 °F].
n
Do not commission the device in ambient temperatures below 10 °C [50
n
°F].
Set up the device in rooms with adequate ventilation via windows or an
n
extractor hood.
Sound emission value
The sound emission value is <65 dB.
14 / 96
7
2 Cable bushing for electrical con-
nection
4 Waste water connection
6 Network connection
80.06.083_iCombiPro-iCombiClassic_IM_en-US
1
2
