4

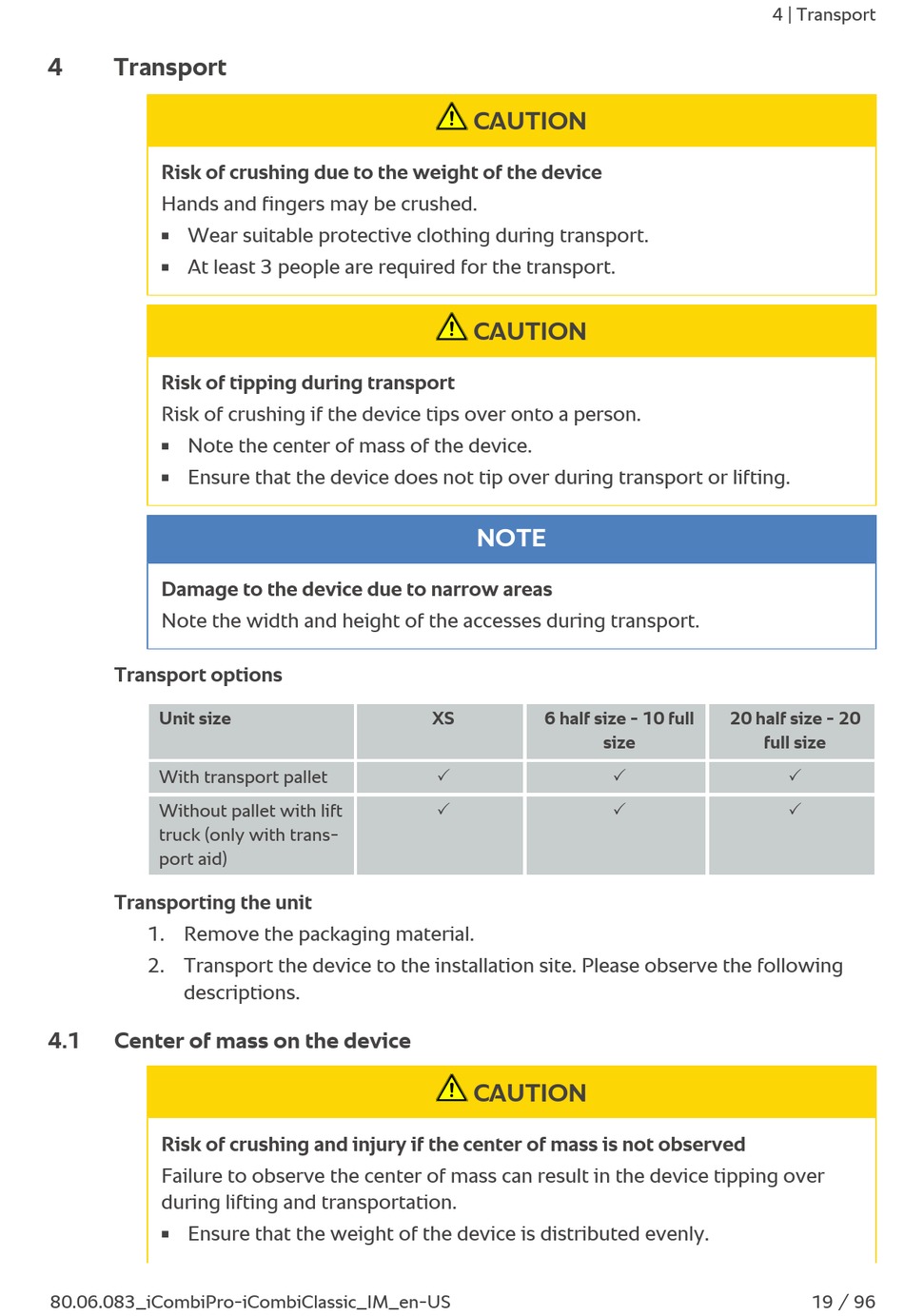

Transport

Risk of crushing due to the weight of the device
Hands and fingers may be crushed.
Wear suitable protective clothing during transport.
n
At least 3 people are required for the transport.
n
Risk of tipping during transport
Risk of crushing if the device tips over onto a person.
Note the center of mass of the device.
n
Ensure that the device does not tip over during transport or lifting.
n
Damage to the device due to narrow areas
Note the width and height of the accesses during transport.
Transport options
Unit size
With transport pallet
Without pallet with lift
truck (only with trans-
port aid)
Transporting the unit
1. Remove the packaging material.
2. Transport the device to the installation site. Please observe the following
descriptions.
4.1

Center of mass on the device

Risk of crushing and injury if the center of mass is not observed
Failure to observe the center of mass can result in the device tipping over
during lifting and transportation.
Ensure that the weight of the device is distributed evenly.
n
80.06.083_iCombiPro-iCombiClassic_IM_en-US
CAUTION
CAUTION
NOTE
XS 6 half size - 10 full
P
P
CAUTION
4 | Transport
20 half size - 20
size full size
P
P
P
P
19 / 96
