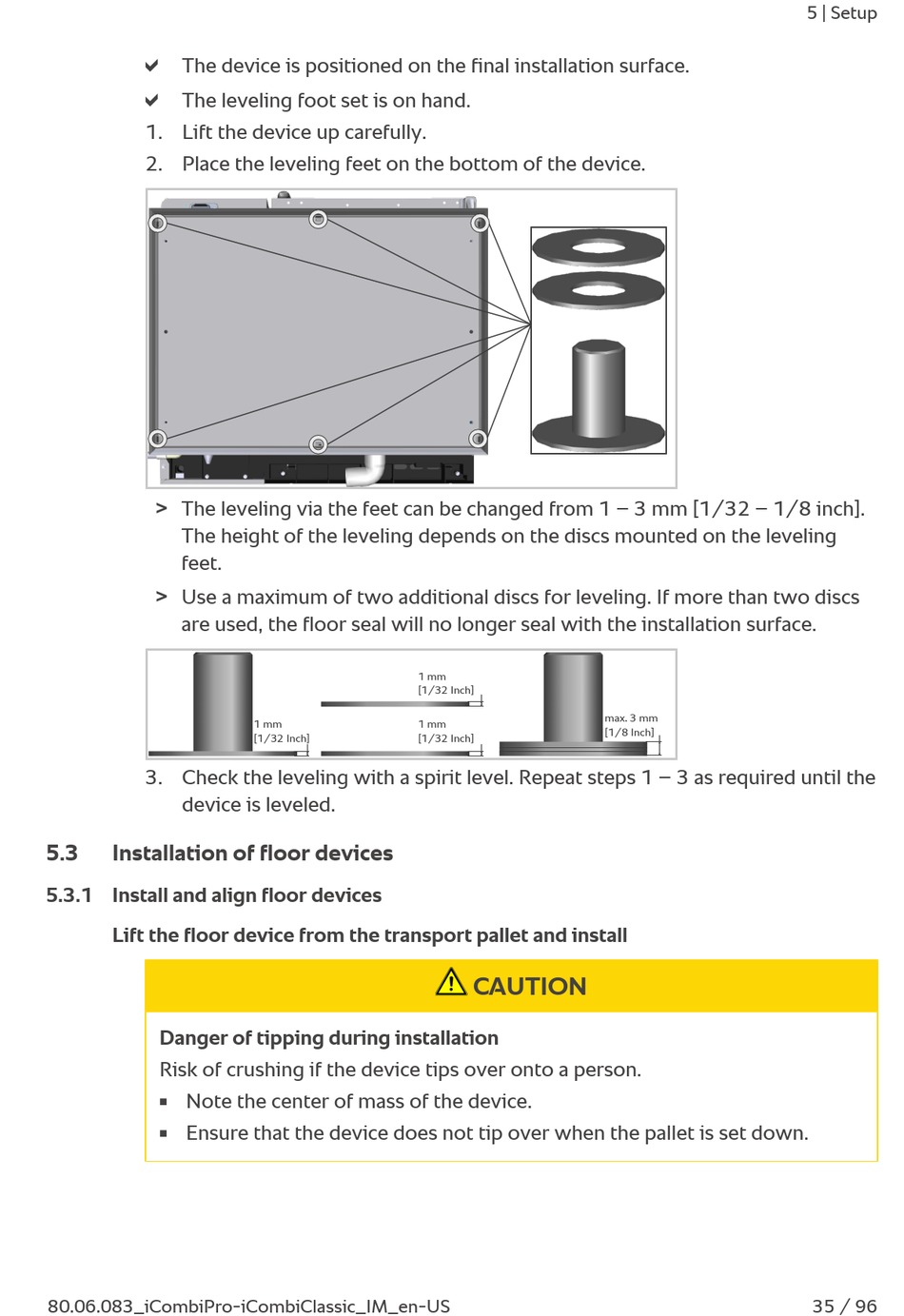

Installation Of Floor Devices; Install And Align Floor Devices - Rational iCombi Pro Original Installation Instructions

a
The device is positioned on the final installation surface.
a
The leveling foot set is on hand.
1. Lift the device up carefully.
2. Place the leveling feet on the bottom of the device.
>
The leveling via the feet can be changed from 1 – 3 mm [1/32 – 1/8 inch].
The height of the leveling depends on the discs mounted on the leveling
feet.
>
Use a maximum of two additional discs for leveling. If more than two discs
are used, the floor seal will no longer seal with the installation surface.
3. Check the leveling with a spirit level. Repeat steps 1 – 3 as required until the
device is leveled.
5.3

Installation of floor devices

5.3.1 Install and align floor devices

Lift the floor device from the transport pallet and install
Danger of tipping during installation
Risk of crushing if the device tips over onto a person.
Note the center of mass of the device.
n
Ensure that the device does not tip over when the pallet is set down.
n
80.06.083_iCombiPro-iCombiClassic_IM_en-US
1 mm
[1/32 Inch]
1 mm 1 mm
[1/32 Inch] [1/32 Inch]
max. 3 mm
[1/8 Inch]
