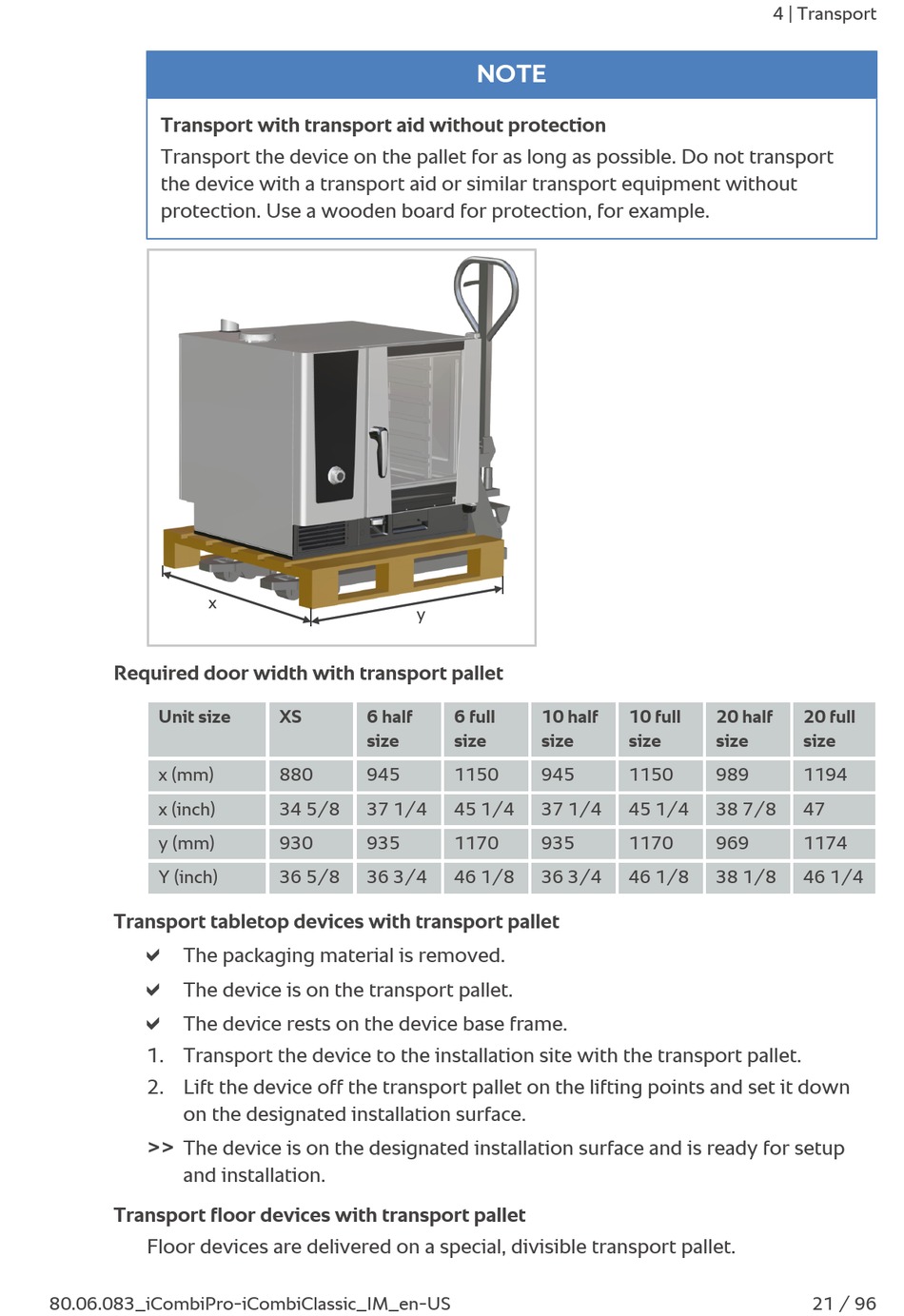

Transport with transport aid without protection
Transport the device on the pallet for as long as possible. Do not transport
the device with a transport aid or similar transport equipment without
protection. Use a wooden board for protection, for example.
x
Required door width with transport pallet
Unit size
x (mm)
x (inch)
y (mm)
Y (inch)
Transport tabletop devices with transport pallet
a
The packaging material is removed.
a
The device is on the transport pallet.
a
The device rests on the device base frame.
1. Transport the device to the installation site with the transport pallet.
2. Lift the device off the transport pallet on the lifting points and set it down
on the designated installation surface.
>>
The device is on the designated installation surface and is ready for setup
and installation.
Transport floor devices with transport pallet
Floor devices are delivered on a special, divisible transport pallet.
80.06.083_iCombiPro-iCombiClassic_IM_en-US
y
XS 6 half
size
880 945
34 5/8 37 1/4
930 935
36 5/8 36 3/4
NOTE
6 full 10 half
size size
1150 945
45 1/4 37 1/4
1170 935
46 1/8 36 3/4
4 | Transport
10 full 20 half
size size
1150 989
45 1/4 38 7/8
1170 969
46 1/8 38 1/8
20 full
size
1194
47
1174
46 1/4
