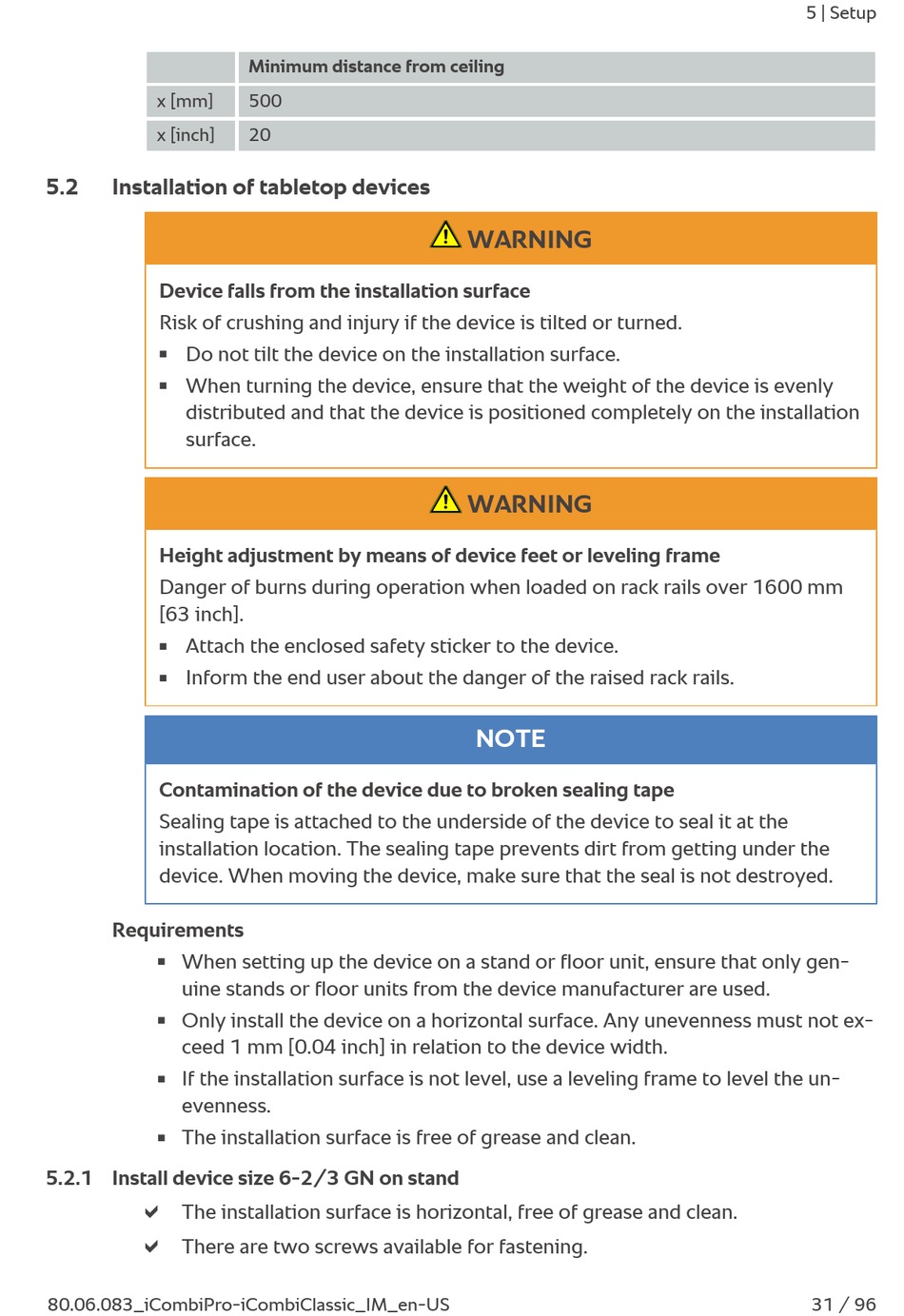

x [mm]
x [inch]
5.2

Installation of tabletop devices

Device falls from the installation surface
Risk of crushing and injury if the device is tilted or turned.
Do not tilt the device on the installation surface.
n
When turning the device, ensure that the weight of the device is evenly
n
distributed and that the device is positioned completely on the installation
surface.
Height adjustment by means of device feet or leveling frame
Danger of burns during operation when loaded on rack rails over 1600 mm
[63 inch].
Attach the enclosed safety sticker to the device.
n
Inform the end user about the danger of the raised rack rails.
n
Contamination of the device due to broken sealing tape
Sealing tape is attached to the underside of the device to seal it at the
installation location. The sealing tape prevents dirt from getting under the
device. When moving the device, make sure that the seal is not destroyed.
Requirements
When setting up the device on a stand or floor unit, ensure that only gen-
n
uine stands or floor units from the device manufacturer are used.
Only install the device on a horizontal surface. Any unevenness must not ex-
n
ceed 1 mm [0.04 inch] in relation to the device width.
If the installation surface is not level, use a leveling frame to level the un-
n
evenness.
The installation surface is free of grease and clean.
n

5.2.1 Install device size 6-2/3 GN on stand

a
The installation surface is horizontal, free of grease and clean.
a
There are two screws available for fastening.
80.06.083_iCombiPro-iCombiClassic_IM_en-US
Minimum distance from ceiling
500
20
WARNING
WARNING
NOTE
