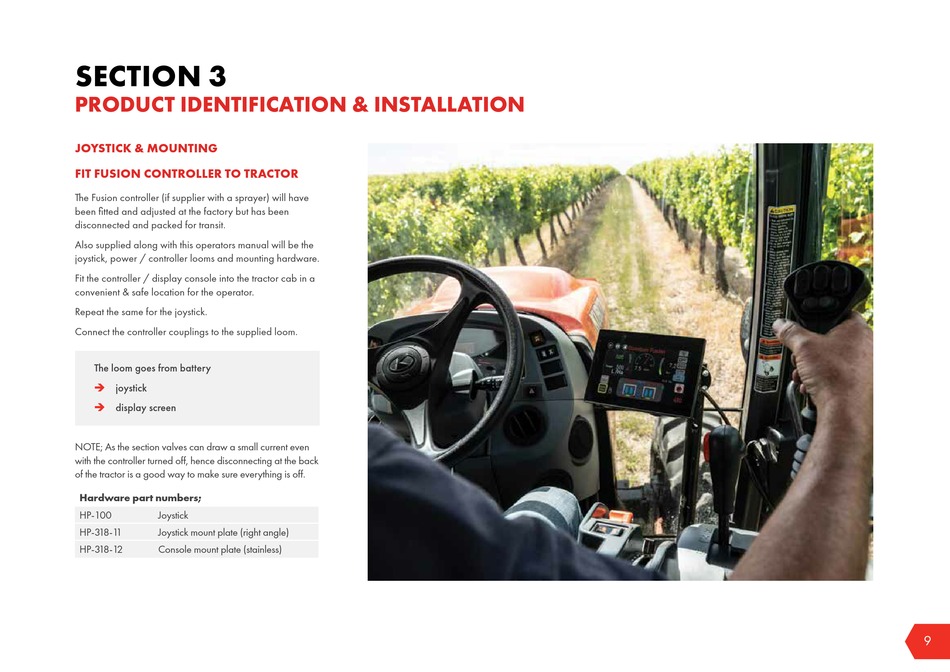

SECTION 3
PRODUCT IDENTIFICATION & INSTALLATION
JOYSTICK & MOUNTING

FIT FUSION CONTROLLER TO TRACTOR

The Fusion controller (if supplier with a sprayer) will have
been fitted and adjusted at the factory but has been
disconnected and packed for transit.
Also supplied along with this operators manual will be the
joystick, power / controller looms and mounting hardware.
Fit the controller / display console into the tractor cab in a
convenient & safe location for the operator.
Repeat the same for the joystick.
Connect the controller couplings to the supplied loom.
The loom goes from battery
joystick

display screen

NOTE; As the section valves can draw a small current even
with the controller turned off, hence disconnecting at the back
of the tractor is a good way to make sure everything is off.
Hardware part numbers;
HP-100 Joystick
HP-318-1 1 Joystick mount plate (right angle)
HP-318-12 Console mount plate (stainless)
