Croplands QUANTUM FUSION Operator's Manual page 20

SECTION 5
SETTINGS & PROGRAMMING

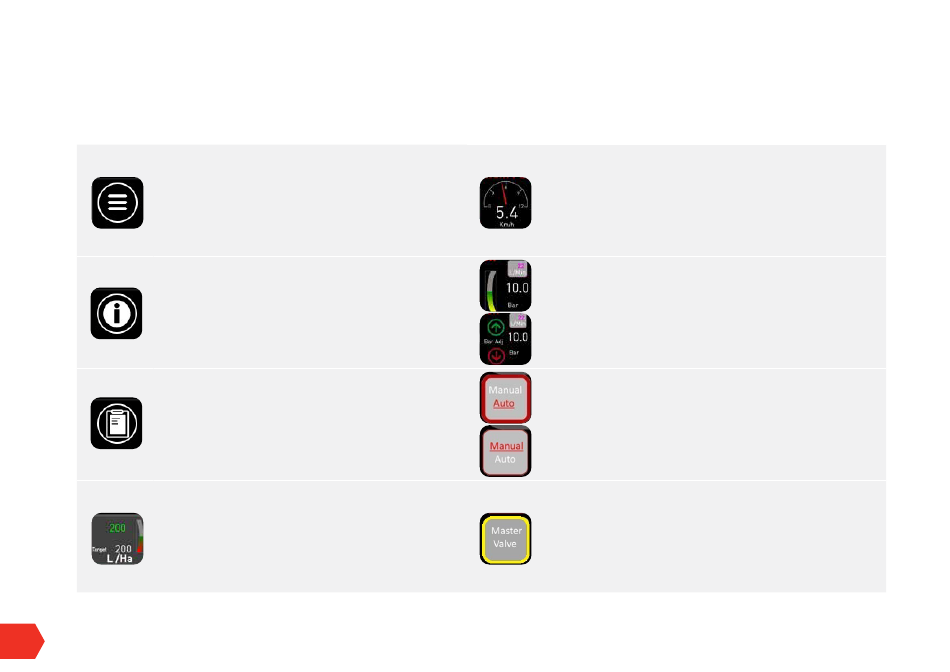

A. SYSTEM MENU
This is the gateway to the back-end System and technical settings.
The button needs to be pressed & held for 10 x seconds to enlarge the
icon. Once enlarged press again to progress to the Main menu option
page. Also refer pages 28 ~ 32.
B. INFORMATION MENU
This menu currently contains the Fusion joystick button & axis function
information. Also refer to pages 14 ~ 17.
C. SCREEN DISPLAY MENU
The screen display brightness (backlight) and screen saver menu are
adjusted here.
D. SPRAY APPLICATION WINDOW
This window shows the selected target rate (white).
The actual rate is displayed above.
If it matches the target rate is shown as (green). If it is different to the
target rate it will be shown as (red).
20
HT-OMFUSION-A
E. GPS SPEED WINDOW
Displays GPS travel speed of the sprayer. The tacho has been designed to
display speeds between 0 - 12km per hour.
F. SPRAY PUMP PERFORMANCE
This section of the screen changes between Manual and Auto mode.
In manual mode 2 x arrows (Green for Increase) and (Red for Decrease) are
displayed. Pump pressure can be increased or decreased using these 2 x buttons.
Actual pump pressure is displayed as a (white) read out in Bar pressure. Above
the pressure readout actual Spray pump litres per minute is also displayed.
G. MANUAL / AUTO MENU
This button selects the operating mode.
In MANUAL mode the sprayer can be operated stationary
(when flushing out the sprayer after use).
In AUTO mode the sprayer needs to be moving to spray. Auto/Manual can
also be changed via the Joystick.
H. MASTER VALVE
It can be used in the off position when mixing or inducting chemical
using the Chemical suction probe.
This button turns on & off the Main dump valve. It is recommended that this
valve is in the ON position (Highlighted in yellow) to avoid excessive Spray
pump pressure.
