SECTION 4
PRODUCT FEATURES/FAMILIARISATION
• Tier1 / Low rates = Inner rings ON / Outer rings OFF.
• Tier 2 / Medium rates = Inner rings OFF / Outer rings ON.
• Tier 3 / High rates = Inner & Outer rings ON.
Setting target rate
From the "Spray" screen press on "Calibration".
Press the up/down arrows until the desired rate is shown.
Setting row width
From the "Spray" screen press on "Calibration".
Press the increase/decrease buttons either side of the
row width to adjust.
Master/Dump Valve Operation
On the "Spray" screen there is a tap labelled "Master
Valve". When this button has a Yellow border and writing
the dump valve is activated and will operate via the
joystick. When the button is Yellow with White writing the
dump valve is locked in the spray position and will not
change via the joystick.
Activating Sections
On the "Spray" screen there will be a picture of either a
single row, 2-row or 3-row sprayer unit depending on your
sprayer model. Each of these rows will have an oval shape
next to them indicating the sections. If the oval is Grey then
this section cannot be activated to spray via the joystick. To
activate the sections press on the Grey ovals and they will
turn Blue, these sections can now be activated to spray via
the joystick. There is a bar below each section that is Grey
when the sections are turned off and goes Green when the
sections have been turned on via the joystick.

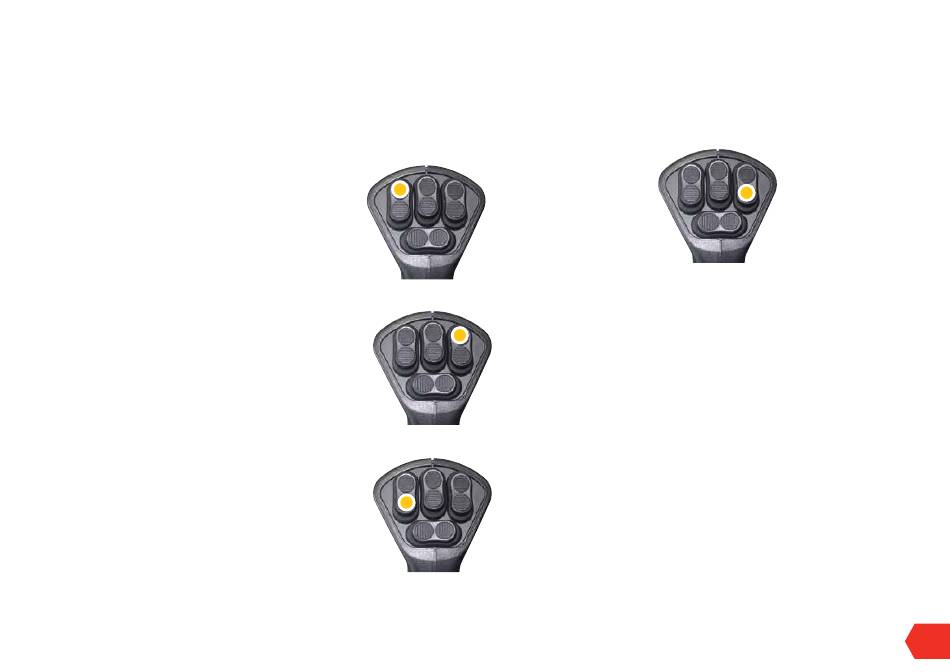

Joystick
Section LL is turned on/off with SW1
Section RR is turned on/off with SW3
Section L is turned on/off with SW4
Section R is turned on/off with SW5
All activated sections can be turned on/off at once with
the "TRIG DOWN" switch and this will also work the dump
valve if activated.
Manual/Auto mode
On the "Spray" screen there is a tab to select manual or
automatic rate control modes. To change between the
modes you press this button and the word in Red is what
mode is selected.
When manual mode is selected an up and down button
will appear on the spray screen. These can be used to
adjust the spray pressure manually.
When auto mode is selected the controller will lock onto
the target rate shown on the screen. The target rate can be
changed in the "Calibration" screen.
