SECTION 4
PRODUCT FEATURES/FAMILIARISATION
A. SYSTEM MENU
This is the gateway to the back-end System and
technical settings.
B. INFORMATION MENU
This menu contains the Fusion joystick button & axis
function information.
C. SCREEN DISPLAY MENU
The screen display brightness (backlight) and screen
saver menu are adjusted here.
D. SPRAY APPLICATION WINDOW
This window shows the selected target rate (white).
The actual rate is displayed above.
E. GPS SPEED WINDOW
Displays GPS travel speed of the sprayer. Displays
speeds between 0 - 12km per hour.
F. SPRAY PUMP PERFORMANCE
This section of the screen changes between Manual
and Auto mode. Actual pump pressure is displayed as a
(white) read out in Bar pressure.
G. MANUAL / AUTO MENU
This button selects the operating mode. Note Auto/
Manual can also be changed via the Joystick.
H. MASTER VALVE
This button turns on & off the Main dump valve.
I. SECTION SWITCH LOCK
This function is only used to assist a novice operator.
It locks out the Section switches meaning the operator
can only operate the sprayer as ON or OFF.
J. FANS
This button turns the hydraulic drive spray fans
On / Off.
K. SPRAY PUMP RPM SPEED
When the pump is activated the pump RPM speed will
be displayed in (red) in the RHS lower corner of the
spray screen.
L. SPRAYER OPERATION WINDOW
This window contains the "live" operating spray
functions. The Sprayer sections are displayed as
green stripes.
More detailed information in the next Section.

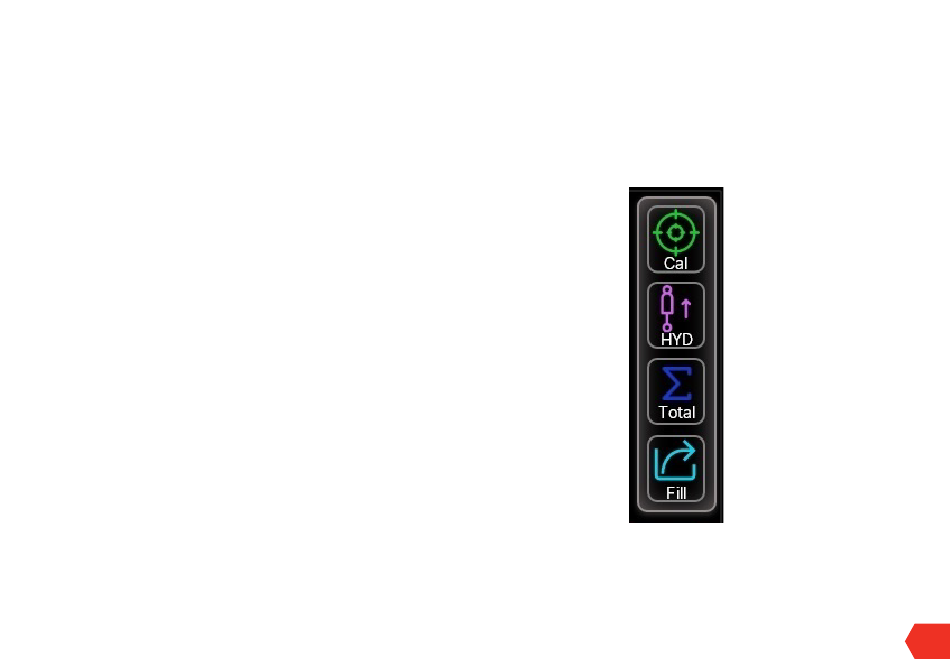

M. CAL (Sprayer setting)
MENU
This button takes you to the
Calibration input page.
N. HYD (Hydraulic setting)
MENU
This button takes you to the
Fan Speed Control settings
and Hydraulic boom settings
page.
O. TOTAL (Jobs total)
MENU
Up to 2 x jobs can be
monitored on this page.
Also displayed is the
Sprayer Totals History (in
hectares and litres).
P. FILL (Tank Volume
Re-set) MENU
Confirm tank volume
after every tank using
the slider bar.
Refer to section 5 for more detailed information
on these functions.
