Programming Hydraulic Boom Settings

The Croplands Quantum Smart Spray is fitted with two
electronic boom position sensors, 1 x left boom and 1
x right boom. These sensors are calibrated at factory to
fold out to the required row width setting chosen by the
operator.
To ensure this function is activated,
Press HYD (Hydraulic setting menu).
At the RHS Lower corner of the screen
press the arrow left & right icon. This will
enter a new screen.

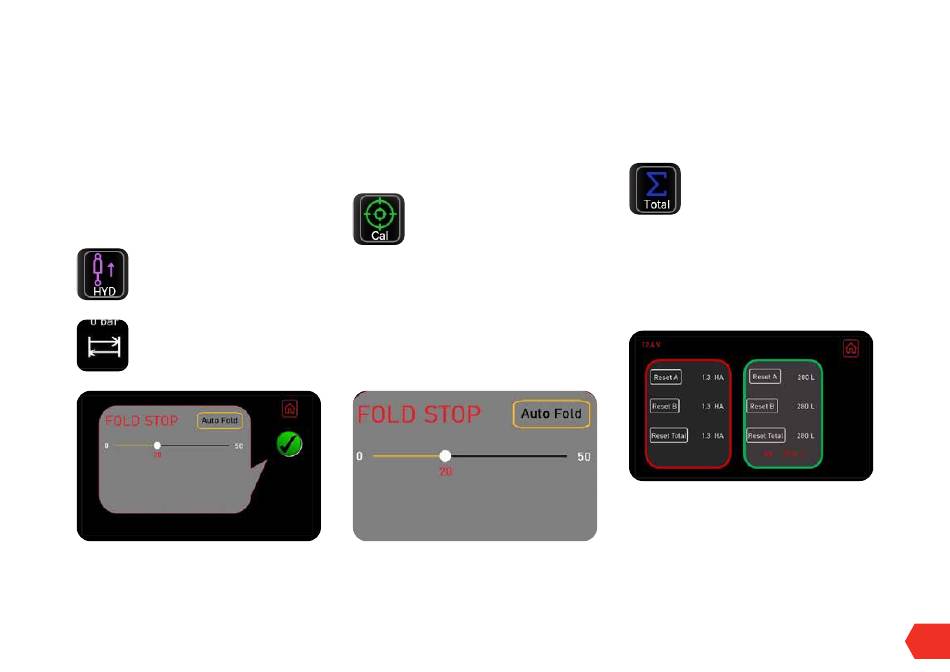

The AUTO FOLD button needs to be highlighted in Yellow to
confirm the function is ON. The boom arms will now only fold
out to the distance the row width is set to in the CAL screen.
NOTE; The Croplands Quantum Vine Pro sprayer is fitted
with an additional boom position sensor for the rear (inner
row) boom arms.
Using FOLD STOP
The FOLD STOP function stops the booms from folding all
the way in (as a part fold).
Use the Slider bar to set from 0 - 50 the desired part
fold setting.
This can be a handy function when needing to part fold the
Sprayer booms whilst performing tight headland turns.

Re-Setting Work Totals

The Fusion Controller has 2 x Job totals it can calculate at
any one time. Access via the TOTAL icon.
These are titled RESET A and RESET B and display hectares
and litres sprayed.
These Job totals can be re-set by simply pressing either of
the RESET A or RESET B buttons.
The RESET TOTAL is a good record of the Sprayers history
and can be used as a service indicator reminder.
