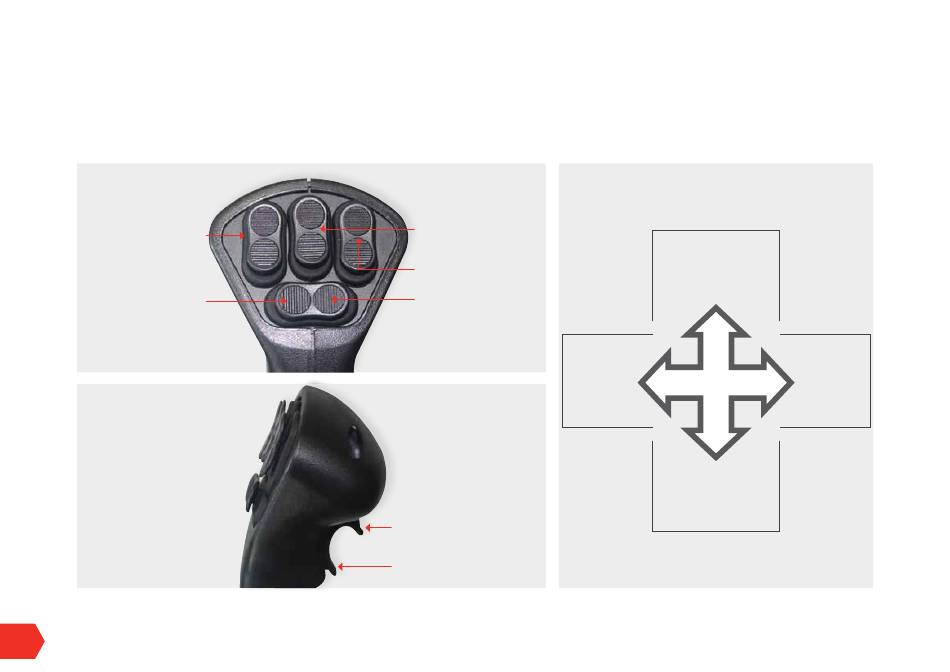

JOYSTICK OPERATION

SW1 - LL Section
SW4 - Lh sec on/off
SW7 - Lh Boom X-Y axis
Double click to activate
LH wind comp
14
HT-OMFUSION-A
SW2 - Auto/Manual
SW6 - Fans on/off
SW3 - RR Section Valve
SW5 - Rh sec on/off
SW8 - Rh Boom X - Y axis
Double click to activate
RH wind comp
X AXIS LEFT
SW7, SW8,
TRIG UP
TRIG UP
Lh/Rh combined fold /
Lift via X axis
TRIG DOWN
Master spray on/off
Y AXIS FORWARD
SW7, SW8, TRIG UP
X AXIS RIGHT
SW7, SW8,
TRIG UP
Y AXIS REVERSE
SW7, SW8, TRIG UP
