Croplands QUANTUM FUSION Operator's Manual page 21

SECTION 5
SETTINGS & PROGRAMMING

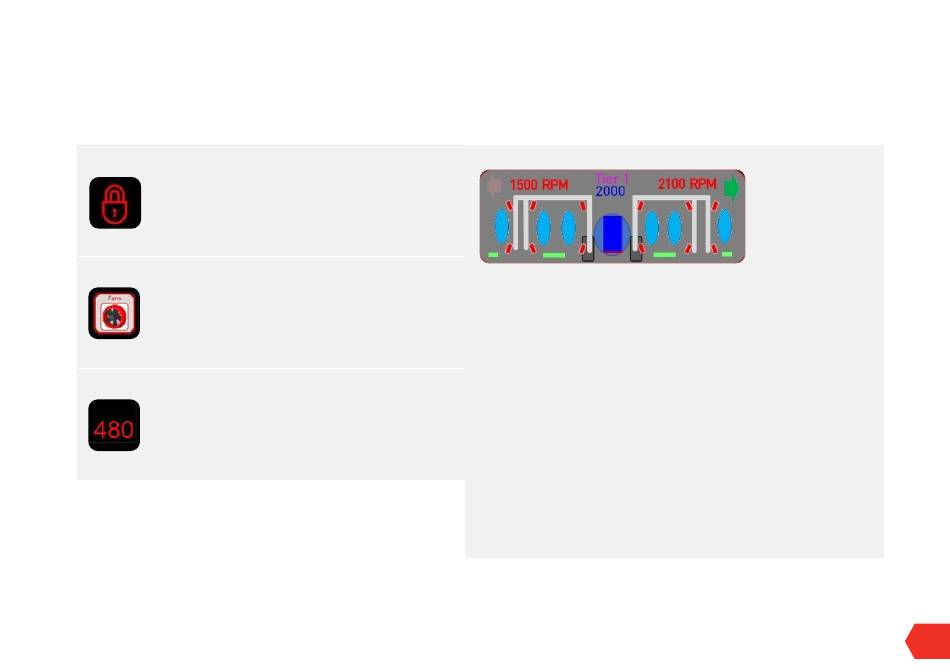

I. SECTION SWITCH LOCK
This function is only used to assist a novice operator.
It locks out the Section switches meaning the operator can only
operate the sprayer as ON or OFF. The section switches cannot be
turned on or off via the Fusion joystick.
Red lock means the sections can't be individually turned off via the Joystick.
J. FANS
This button turns the hydraulic drive spray fans On / Off.
When on the fan icon is highlighted red.
The hydraulic spray fans can also be turned On / Off
via the Fusion Joystick (Refer joystick information).
K. SPRAY PUMP RPM SPEED
When the pump is activated (either by PTO engagement or Tractor
hydraulic remote lever) the pump RPM speed will be displayed in
(red) in the RHS lower corner of the spray screen.
L. SPRAYER OPERATION WINDOW
This window contains the "live" operating spray functions. The Sprayer sections are
displayed as green stripes (3-row = 4 x sections, 2-row = 2 x sections).
When the sections are spraying, oval shapes (representing the vine canopy) turn blue.
When the sections are not spraying the oval shapes remain grey.
Above the tank icon will display RV (Remaining volume) in the main spray tank (blue).
Above this value will be a Tier Reference (Tier 1, 2 or 3) (purple).
This confirms to the operator which Tier has been selected via the Calibration menu page.
At the top of the Spray window Left & right fan speeds are displayed in (red).
At the LHS top of the Spray window is a (red / grey) arrow.
At the RHS top of the Spray window is a (green /grey) arrow.
These 2 x arrows represent the direction of fan speed when using the Wind Compensation feature.
Above the Spray Window on the RHS is a Hectare meter.
This calculates area sprayed when starting a new spray job.
