Monitoring Recapture % Performance

If the Croplands Quantum Smart Spray is factory fitted with
the (optional) Croplands Recapture kit, the sprayer will
also be fitted with a Tank level sensor.
At the beginning of each new spray tank the operator must
manually & accurately set the correct tank volume in the fill
screen.
An ongoing an accurate Recapture % will be displayed on
the TOTAL (Jobs total) MENU.
The Recapture % is calculated based on the Actual Tank
Level sensor value compared to the Theoretical Liquid
Remaining value.
For further information re the Recapture system refer to the
Recapture operators manual, HT-OMRECAP2-A
26
HT-OMFUSION-A
Setting Alarms
By setting the Sprayer alarms a visual and audible alarm
will alert the Operator if the sprayer performs outside of
the set parameters.

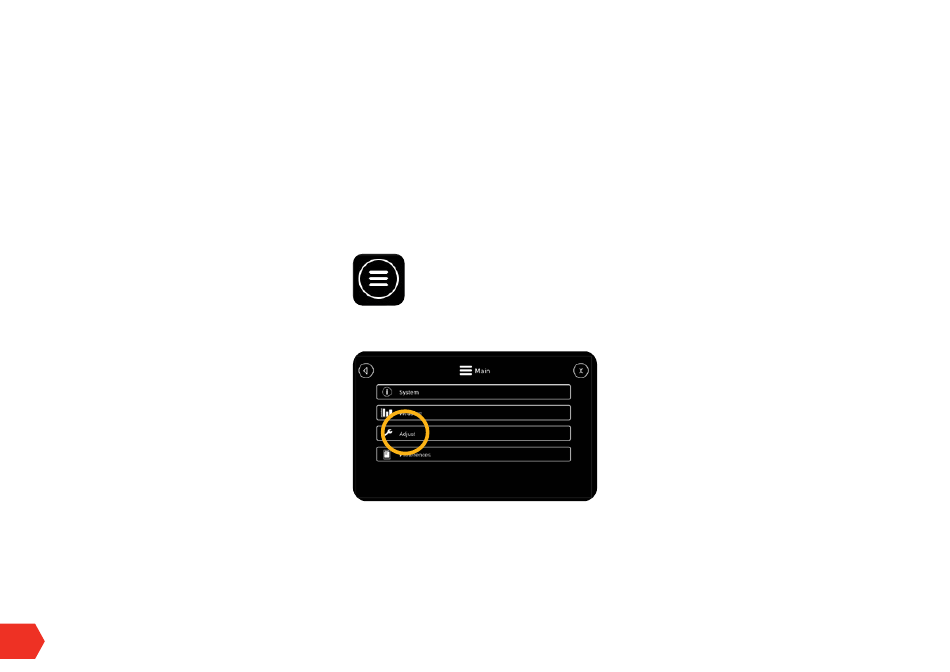

To access the ALARM PARAMETER MENU, Press the
SYSTEM MENU button for approx. 10 x seconds until the
Icon enlarges.
Press button again.
Select the ADJUST MENU.
Scroll down to the bottom of the screen and select the
ALARM PARAMETER MENU.
Select PUMP LOW ALARM
Tap on the numeric value and set to the desired speed
(Croplands recommend 350). If the Spray pump drops
below 350 RPM an alarm will be triggered. Tap the tick
icon to save.
Select PUMP HIGH ALARM.
Set the numeric value to the desired speed (Croplands
recommend 545). If the Spray pump spikes above 545
RPM an alarm will be triggered. Tap the tick icon to save.
Select BAR / PSI LOW ALARM.
Set the numeric value to the desired pressure (Croplands
recommend 5 x BAR). If the Spray pump pressure drops
below 5 x BAR an alarm will be triggered. Tap the tick icon
to save.
Select BAR / PSI HIGH ALARM.
Set the numeric value to the desired pressure (Croplands
recommend 12 x BAR). Tap the tick icon to save. If the
Spray pump pressure spikes above 12 x BAR an alarm will
be triggered. Return to the Main Spray screen.
